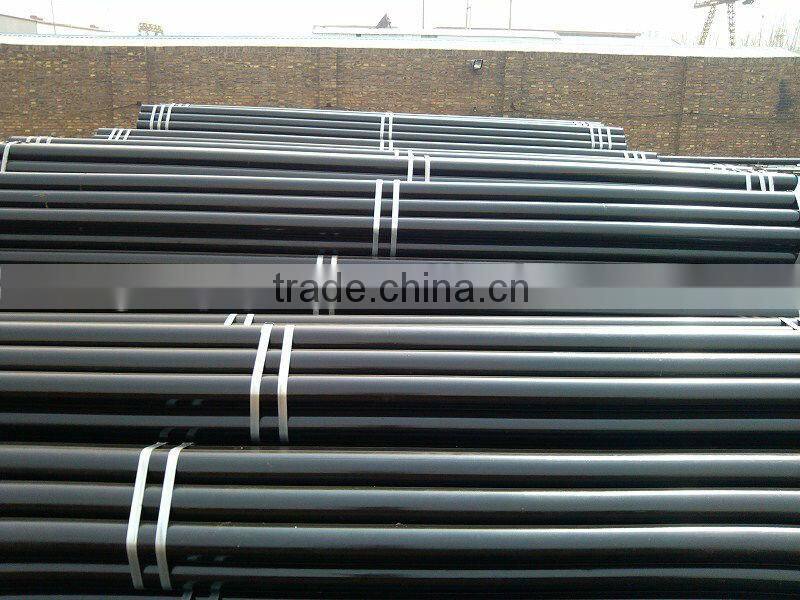

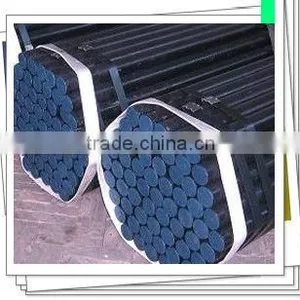

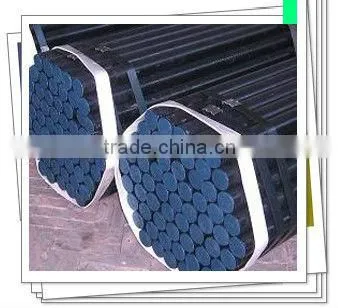

Black Seamless Carbon Steel Pipe
- Any port China
- T/T Credit Card PayPal
You May Like
Product Details
| Thickness | 3.1, 15 | Section Shape | Round | |
| Outer Diameter | 21.3 - 914 mm | Place of Origin | Hebei, China | |
| Secondary Or Not | Non-secondary | Application | Fluid Pipe | |
| Technique | Cold Rolled | Certification | API | |
| Surface Treatment | Other, painting | Special Pipe | API Pipe | |
| Alloy Or Not | Non-alloy |
Product Description
Specifications
Carbon Seamless Steel Pipe1)Size: 3"-16"
2)WT: 3.2-20mm
3)Standard: SY/T4013-95, DIN30670
4)Type: Black Painting
Hebei GEE Pipe Mill Co., lTD
Size:

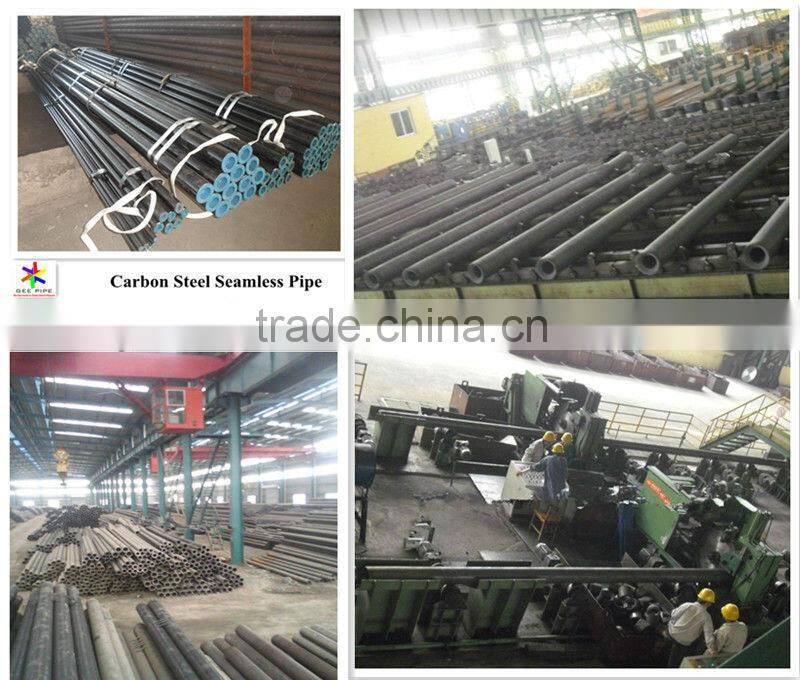

GEE have got three completer production line as:
-,Cold drawn from size 3/4"-5" OD pipe.
-,Hot rolled from size 1"-16" OD pipe, also we can work from size 20"-24" as hot expand pipe.
Wall thickness can be max 100mm now.
-,One new productionline for seamless Rectangular steel pipe
Certificates:
API ISO & KR
Materials:
-,carbon steel pipe for liquid: ASTM A106/A53 GR.B, ST37, ST44.
-,alloy pipe: P110, A335-P12, A335-P11,12Cr1MoV, 15CrMo, 37Mn5, 30CrMnSi, 27SiMn.
-,for pipeline: API 5L GR.B, X42, X52, X60, X70.
-,for construction: high thickness of ST44, ST52.
-,for mechanical process: C45, SAE1045.
We do believe we are a very helpful supplier in this business scope.
We deeply hope there is a channce for us to establish business-relationship with you in future.
Welcome to your inquiry and visit our mill.
| Outside diameter & wall thickness | Unit:inch |
| Nominal Pipe Size(NPS) | Outside Diameter | Nomina WALL THICKNESS | |||||||||
| DN | B | ANSI | S5s | S10s | S10 | S20 | S30 | S40s | STD | S40 | |
| 6 8 10 15 20 25 32 40 | 10.29 13.72 17.14 21.34 26.67 33.40 42.16 48.26 | - - - 1.65 1.65 1.65 1.65 1.65 | 1.24 1.65 1.65 2.11 2.11 2.77 2.77 2.77 | - - - - - - - - | - - - - - - - - | - - - - - - - - | 1.73 2.24 2.31 2.77 2.87 3.38 3.56 3.68 | 1.73 2.24 2.31 2.77 2.87 3.38 3.56 3.68 | 1.73 2.24 2.31 2.77 2.87 3.38 3.56 3.68 | ||
| 50 65 80 90 100 | 60.32 73.02 88.90 101.60 114.30 | 1.65 2.11 2.11 2.11 2.11 | 2.77 3.05 3.05 3.05 3.05 | - - - - - | - - - - - | - - - - - | 3.91 5.16 5.49 5.74 6.02 | 3.91 5.16 5.49 5.74 6.02 | 3.91 5.16 5.49 5.74 6.02 | ||
| 125 150 200 250 300 | 5 6 8 10 12 | 141.30 168.30 219.08 273.05 323.80 | 2.77 2.77 2.77 3.40 3.96 | 3.40 3.40 3.76 4.19 4.57 | - - - - - | - - 6.35 6.35 6.35 | - - 7.04 7.80 8.38 | 6.55 7.11 8.18 9.27 9.53 | 6.55 7.11 8.18 9.27 9.53 | 6.55 7.11 8.18 9.27 10.31 | 5 6 8 10 12 |
| 350 400 450 500 550 600 | 14 16 18 20 22 24 | 355.60 406.40 457.20 508.00 558.80 609.60 | 3.96 4.19 4.19 4.78 4.78 5.54 | 4.78 4.78 4.78 5.54 5.54 6.35 | 6.35 6.35 6.35 6.35 6.35 6.35 | 7.92 7.92 7.92 9.53 9.53 9.53 | 9.53 9.53 11.13 12.70 12.70 14.27 | - - - - - - | 9.53 9.53 9.53 9.53 9.53 9.53 | 11.13 12.70 14.27 15.09 - 17.48 | 14 16 18 20 22 24 |
