CNC plasma & flame cutting machine gantry type
SUKE company has been experiencing the machine for more than 4 years with good reputation and sound quality
.SUKE Laser systems&CNCsystem& are flexible and can adopt to your business needs based on material size and production expectations.

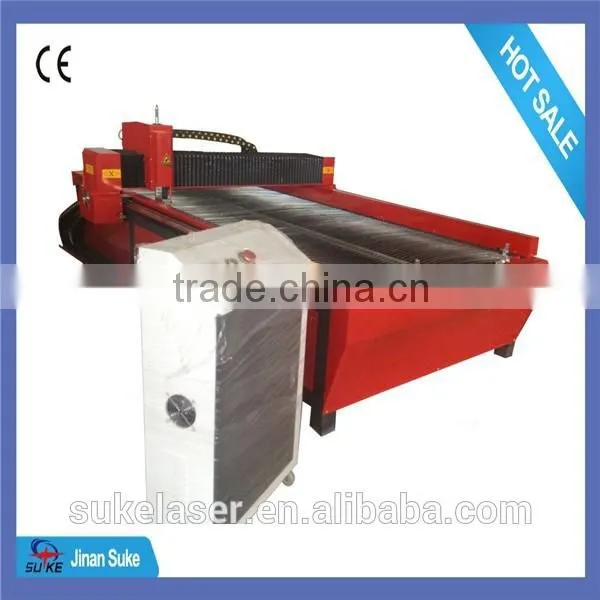

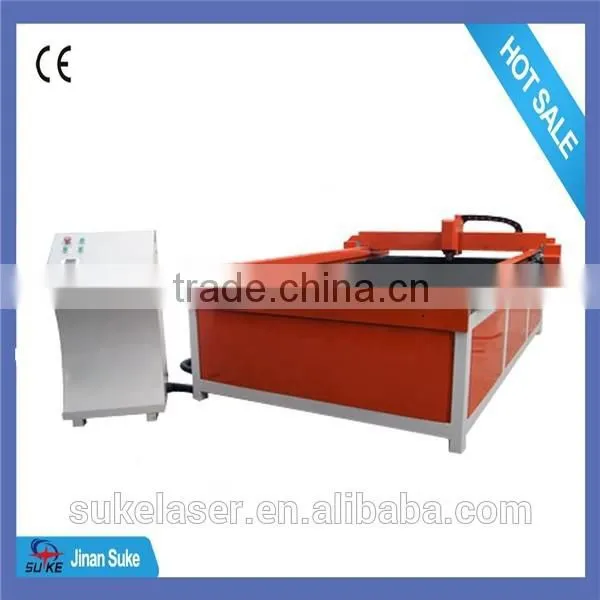

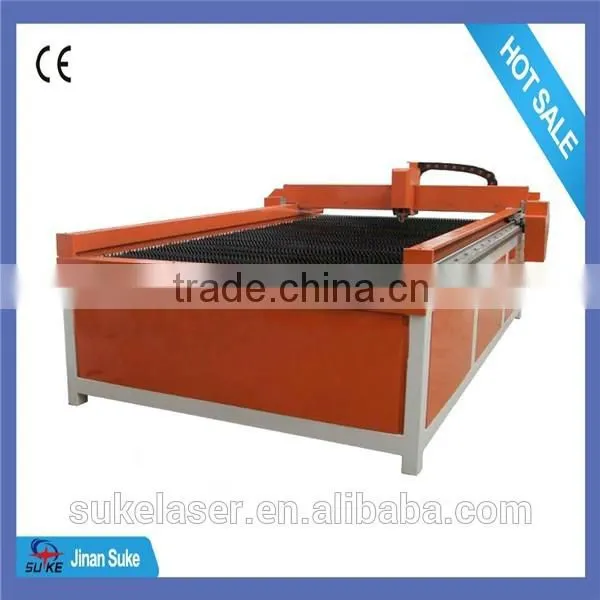

<A>Recommended Model1: SK1530 Plasma cutting machine
1. Stable and durable structures, deformation resistance is strong.
2 DSP hand-held control system ,supports files reading from U disk or downloading from computer
3 Equipped with Stepper motor.
4 .Looks beautiful and with water tank
<B>Recommended Model2:SK1325 Metal Engraving Machine
5 .Racks and gears as transmissions moving speed.
6. Incline design under table surface , convenient and safe for operator
7 .Steel structure lathe bed, heavy-load
<C>Application:
Applicable Materials: For low cabron steel, copper, iron,aluminum and galvanized sheet, titanium sheet and other metal sheet.

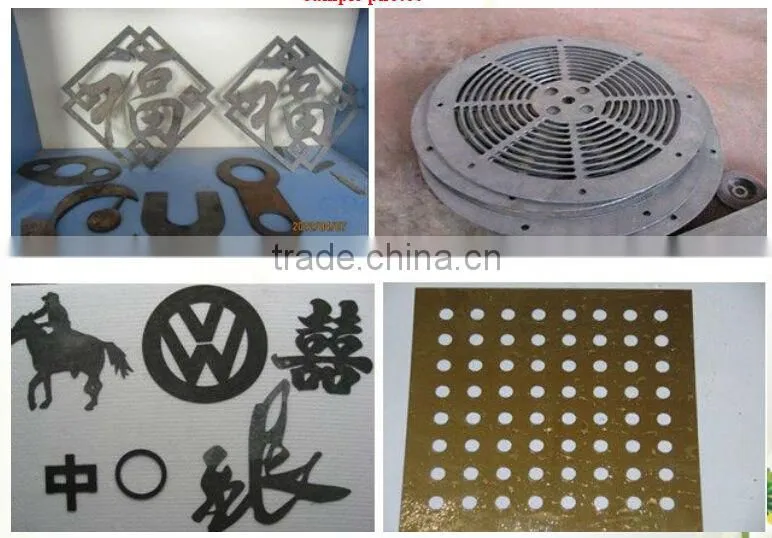

Samples:
<D>SUKE Software:
a. Our software is compatible with G Code;
b. Software supported designs from Type 3, or Wentai etc;
c. Offline control and large memory for data storing,realize the offline control.
d. LCD screen is easy and convenient operations.
<E>Plasma Cutting Machine Technical Parameter:
Model NO. |
SK-1530 |
SK- 1325 |
Working area |
1500*3000mm |
1300*2500mm |
Machine structure |
Channel steel lathe bed, serrated table |
Channel steel lathe bed, serrated table |
Overall Dimension |
3600*2200*1200mm |
3150*2200*1200mm |
Precision |
0.07mm |
0.07mm |
Position accuracy |
0.02mm |
0.02mm |
Reposition accuracy |
0.02mm |
0.02mm |
Idling Speed |
15,000mm/min |
|
Working Speed |
10,000mm/min |
|
Power Source |
HUAYUAN 60A/100A |
|
Cutting thickness |
60A for 5mm; 100A for 25mm |
|
Drive system |
Stepper motor |
|
Working voltage |
AC380V /50HZ |
|
| Command Code | G code(*.nc,*.mmg,*.u00,etc),*.eng | |
| Control system | DSP for plasma | |
| Compatible software | Compatible with any software generating G Code file in Window 98/XP/7 | |
Optional |
Hypertherm (45A/65A/85A); Servo Motor; Start System with THC |
|
Working size and laser power can be customized according to requirement. | ||

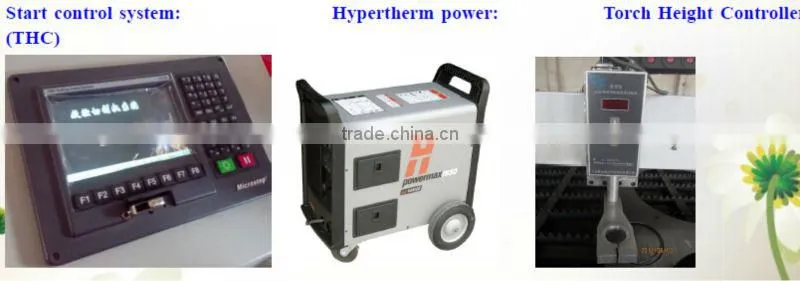

Some optionals:
Certificates:
Wish you contact with me directly if you have any interested in our machine or any questions!
