Specifications
1325 large scale plasma cutter for metal plateing area: 1300*2500mm
2.Start control system
3.USB interface file transf

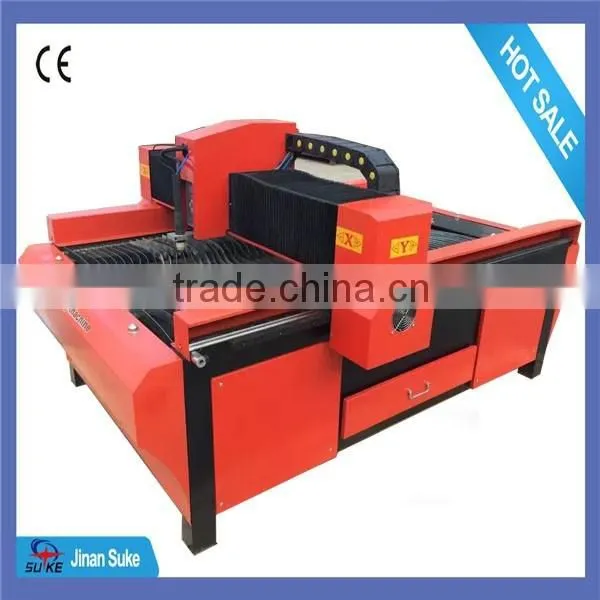

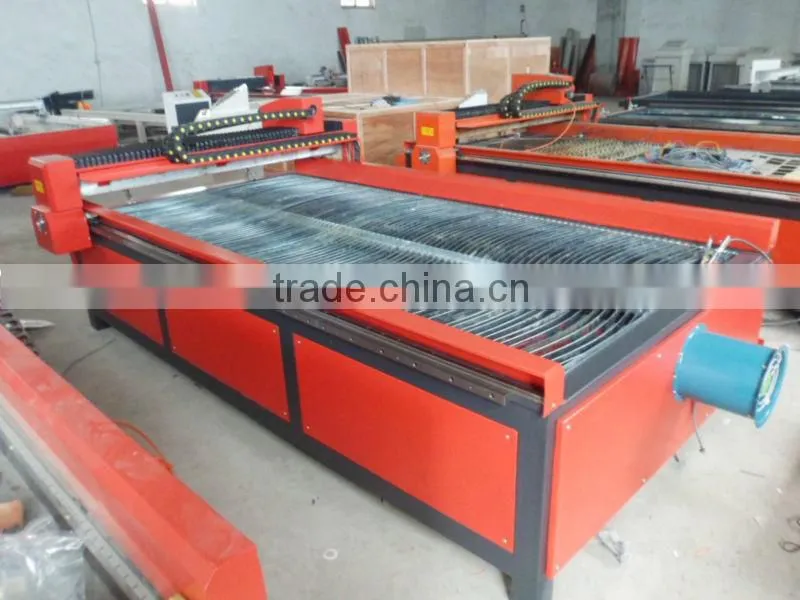

1325 large scale plasma cutter for metal plate
Application:
For low carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet and other metal sheet.
Features:
1. Steel structure lathe bed is capable of loading heavy metal sheet of large size.
2. Incline design under table surface makes finished parts and scrap slide down to both side along, convenient and safe for operator.
3. DSP hand-held control system dedicated for plasma machine, supports file reading from U disk or downloading from computer, providing high independence and great convenience during operation.
4. Racks and gears as transmission raise moving speed so that large area cutting can be done in short time.
5. High sensitivity THC (Torch Height Controller) is optional for auto adjustment to cutting distance and cutting precision.
Power supply Table
Parameters:
Model |
SK1325 |
Working area (mm) |
1300*2500*100 |
Machine structure |
Channel steel lathe bed, serrated table |
Overall dimension (mm) |
3150*2200*1200 |
Precision (mm) |
0.07 |
Positioning accuracy (mm) |
0.02 |
Repeatability (mm) |
0.02 |
Idling speed (mm/min) |
50000 |
Working speed (mm/min) |
8000 |
XY transmission |
Racks and gears |
Z transmission |
Double-nut ball screws (German) |
Rail/guide |
Imported round rail |
Power source |
(HUAYUAN) 60A |
Max. cutting thickness |
5mm for 60A; 25mm for 100A |
Driving system |
Stepper motors |
Working voltage |
AC380V±30V, 50HZ |
Command code |
G code. nc. mmg. u00. etc. |
Control system |
DSP for plasma |
File transfer |
USB interface |
Copatible software |
Compatible with any software generating G code file in window 98/XP/7 |

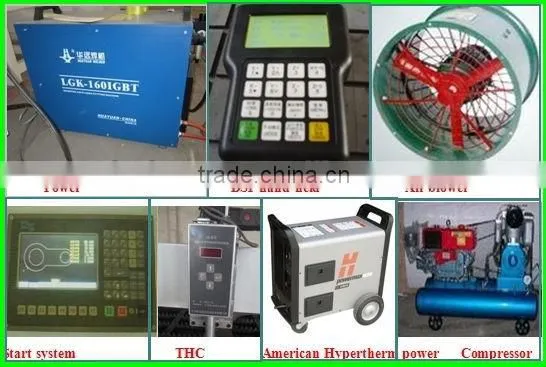

Optional parts |
|
My skype: sukelaser5
