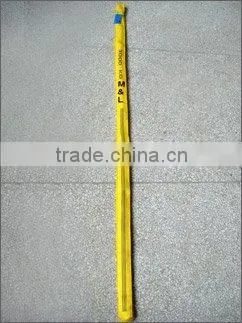

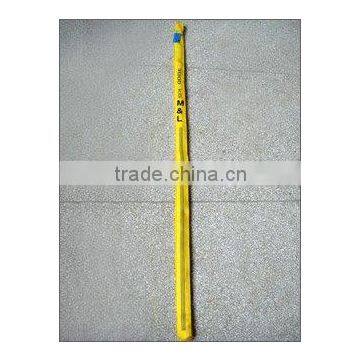

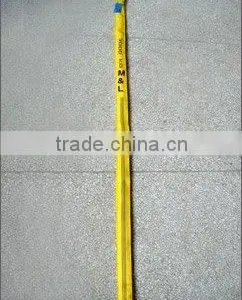

3T Round Sling

3T Round Sling thumbnail-1
3T Round Sling photo-1
US$ 1 - 50 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
chenli-sling
Model Number:
EA
Contact Supplier Request Quote Chat Now
Hebei Chenli Rigging Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name chenli-sling
Model Number EA
Type Round Sling
Shape Round
Material Polyester
Lifting Capacity 3-Ton
Sling Color Yellow
Lifting Eye Type Reversed Eye
Certification CE GS

Specifications

material:polyester
name:lifting round sling
safety factor:6:1,7:1
can make OEM&ODM
Certifications:CE,GE,TUV,

polyester lifting round slings:

1.Especially suitable for loading round objects.

2.The surface of round sling is smooth,does not cause damages to tender objects loaded.

3.Various loading methods,including dragging or pulling loaded objects

4.Various loading methods and load is bear evenly,enable the sling's usage life last longer.

5.High strength/weight ratio.

6.Anti-abrasion and anti-incision protection sleeve can be attached.

7.Has special label,working load is differentiated by corlours according to international standard.easy to identify even if the sling has been abrased.

8.Light and soft,can be used in small narrow space.

9.non-electric conductive,no danger of electric srtoke.

10.In compliance with European Standard En1492-2:2000 and Chinese Standard JB/T8521-2007.



 Round sling has the maximum load up to 300T, effective length up to 80m, safety factor adopted is normally 7:1,6:1.
    Round sling is made of high tension industrial yarn(100%PES), the strands inside are as a form of endless cycle. The outside sleeve is alse made of 100%PES, not for the loading, but to protect the strands inside.
    Round slings are the ideal solution for the safe lifting of loads, whether this is to be at your works, for loading and unloading or for use at a building site. The round slings will protect items being lifted. If the sling is damaged badly, the outside sleeve is breakage, and the outside strands will go out, So the sling can not use any more. Their sturdy core and a covering layer will guarantee a long serviceable lift, even when in continuous use. round slings are also repairable.

  Max.SWL=Mode Coefficient P*Rated Working Load     Max.SWL of lifting method
Code Color Minimum Breaking Load (Kg) Rated Working Load
(Kg)		 UprightP=1
(Kg)		 ChokedP=0.8
(Kg)		 Angle 45 P=1.8
(Kg)		 Angle 90 P=1.4
(Kg)
         EA-01 violet 6000 1000 1000 800 1800 1400
EA-02  green 12000 2000 2000 1600 3600 2800
EA-03  yellow 18000 3000 3000 2400 5400 4200
EA-04  grey 24000 4000 4000 3200 7200 5600
EA-05  red 30000 5000 5000 4000 9900 7000
EA-06  brown 36000 6000 6000 4800 10800 8400
EA-08  blue 48000 8000 8000 6400 14400 1120
EA-10  orange 60000 10000 10000 8000 18000 14000
EA-12  orange 72000 12000 12000 9600 21600 16800
EA-20  orange 120000 20000 20000 16000 36000 28000
EA-30  orange 180000 30000 30000 24000 54000 42000

EA-300  orange 1800000 300000 300000 240000 540000 420000
