Home > Products > round sling > 100% PES lifting round sling

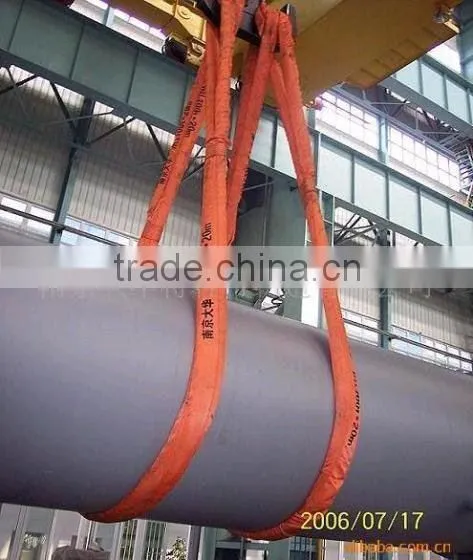

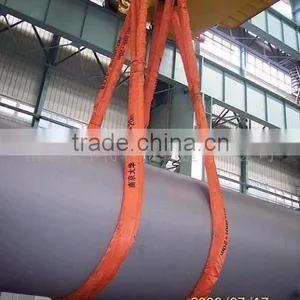

100% PES lifting round sling
- 10 Piece / Pieces per Month
- FOB Tianjin port
- T/T
- WLL 400 Ton Heavy Duty Endless Polyester Round Lifting Slings Belt Strap
- High temperature resistant industrial flat kevlar webbing lifting sling strap
- 10Tonne Glass Lifting Sling for Glass Packing Loading and Unloading
- Heavy Duty Webbing Lifting Sling Strap
- one way webbing lifting sling for lifting steel pipe or plywood
- American Standard Flat Webbing Sling
Product Details
Place of Origin: | Hebei, China | Brand Name: | chenli-sling | Model Number: | EA |
Type: | Round Sling | Shape: | Round | Material: | Polyester |
Lifting Capacity: | 10-Ton | Sling Color: | Orange | Lifting Eye Type: | Reversed Eye |
Certification: | CE GS |
Product Description
Specifications
material:polyestername:lifting round sling
safety factor:6:1,7:1
can make OEM&ODM
Certifications:CE,GE,TUV,
polyester lifting round slings:
1.Especially suitable for loading round objects.
2.The surface of round sling is smooth,does not cause damages to tender objects loaded.
3.Various loading methods,including dragging or pulling loaded objects
4.Various loading methods and load is bear evenly,enable the sling's usage life last longer.
5.High strength/weight ratio.
6.Anti-abrasion and anti-incision protection sleeve can be attached.
7.Has special label,working load is differentiated by corlours according to international standard.easy to identify even if the sling has been abrased.
8.Light and soft,can be used in small narrow space.
9.non-electric conductive,no danger of electric srtoke.
10.In compliance with European Standard En1492-2:2000 and Chinese Standard JB/T8521-2007.
Round sling has the maximum load up to 300T, effective length up to 80m, safety factor adopted is normally 7:1,6:1. Round sling is made of high tension industrial yarn(100%PES), the strands inside are as a form of endless cycle. The outside sleeve is alse made of 100%PES, not for the loading, but to protect the strands inside. Round slings are the ideal solution for the safe lifting of loads, whether this is to be at your works, for loading and unloading or for use at a building site. The round slings will protect items being lifted. If the sling is damaged badly, the outside sleeve is breakage, and the outside strands will go out, So the sling can not use any more. Their sturdy core and a covering layer will guarantee a long serviceable lift, even when in continuous use. round slings are also repairable. |
Max.SWL=Mode Coefficient P*Rated Working Load Max.SWL of lifting method | |||||||
Code | Color | Minimum Breaking Load (Kg) | Rated Working Load (Kg) | UprightP=1 (Kg) | ChokedP=0.8 (Kg) | Angle 45 P=1.8 (Kg) | Angle 90 P=1.4 (Kg) |
EA-01 | violet | 6000 | 1000 | 1000 | 800 | 1800 | 1400 |
EA-02 | green | 12000 | 2000 | 2000 | 1600 | 3600 | 2800 |
EA-03 | yellow | 18000 | 3000 | 3000 | 2400 | 5400 | 4200 |
EA-04 | grey | 24000 | 4000 | 4000 | 3200 | 7200 | 5600 |
EA-05 | red | 30000 | 5000 | 5000 | 4000 | 9900 | 7000 |
EA-06 | brown | 36000 | 6000 | 6000 | 4800 | 10800 | 8400 |
EA-08 | blue | 48000 | 8000 | 8000 | 6400 | 14400 | 1120 |
EA-10 | orange | 60000 | 10000 | 10000 | 8000 | 18000 | 14000 |
EA-12 | orange | 72000 | 12000 | 12000 | 9600 | 21600 | 16800 |
EA-20 | orange | 120000 | 20000 | 20000 | 16000 | 36000 | 28000 |
EA-30 | orange | 180000 | 30000 | 30000 | 24000 | 54000 | 42000 |
EA-300 | orange | 1800000 | 300000 | 300000 | 240000 | 540000 | 420000 |
