Hot Sale HTK-2000A Hydraulic Drilling Rig for Piling Hole

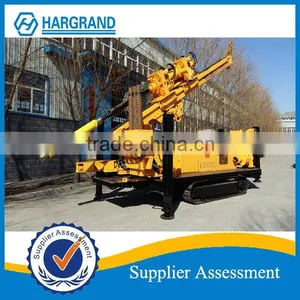

Hot Sale HTK-2000A Hydraulic Drilling Rig for Piling Hole thumbnail-1
Hot Sale HTK-2000A Hydraulic Drilling Rig for Piling Hole photo-1
US$ 5,200 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Sanhe Hargrand Drilling Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Beijing, China
Brand Name HARGRAND
Model Number HTK-2000A
Usage Other, geotechnical investigation and surveying
Voltage 220v
Power(W) 12.1kw
Dimension(L*W*H) 7500*2200*2880
Weight 13500
Certification ISO-9001
Warranty 6months
After-sales Service Provided Engineers available to service machinery overseas

HTK-2000A pile hole drilling rig  Introduction:

HTK2000A all hydraulic pile hole drilling rig is the foundation of core drilling rig, well drilling rig, drilling rig, the unique dual power head design, which can be used in electric power, highway, railway, bridge pile hole construction, with tied down hole hammer, which can be used in large diameter pile construction, and the construction process has been obtained national patent (patent number 201420766541). The drilling machine will be used in the field of pile hole engineering with its multifunctional and high performance price ratio.

HTK-2000A type:    track-mounted rig,    trailer mounted rig



Drill Rigs Features:


1.easy operation

2.lightweight to move

3.reasonable price

4.good service

Technological Data of  HTK-2000A pile hole drilling rig:



Diesel engine



Model cummins                                                                6BTA8.3-C260



Power                                                                                   194KW



Rotate speed                                                                        2200RPM



Motor



Power                                                                                   75+75KW



Rotate speed                                                                       1450RPM



Rotate power hend



Rotate speed                                                                      0-100RPM



Max. torque                                                                        32000KN



Max. pullback force                                                             250KN



Max. feed force                                                                   250KN



Mast



Height                                                                                  13.5m



Angle                                                                                   0°-90°



Stroke                                                                                  12m



RC drilling



Max. diameter                                                                  2000mm



Depth                                                                                  100m



Rock with water and air composite DTH



Max. diameter                                                                            2000mm



Depth                                                                                          100m



Air consumption                                                                          31/24 m³ /Kg

CFG drilling



Max. diameter                                                                             800mm



Depth                                                                                            12m



Rotary digging



Max. diameter                                                                         1000mm



Depth                                                                                        12m



Transport parameters



Weight                                                                                      17500kg



Overall dimensions                                                            13500*2250*3200



Drill rigs Factory:





HTK-2000A drill rig  ware house:









  HTK-2000A pile hole drill rig  customer:



Quality Drill rigs Manufacturer In China  -FAQ



Payment terms:100% by TT ,



Delivery time:10 days after deposit



Supply ability:1000 pcs per month.







If you want to get more information,please contact me.



Name:Eric Qin



Skype id: hargrand163
