Pneumatic rock drill
USD $410 - $450
/ Set
1 Set(Min.Order)
- 2000 Set / Sets per Month
- Tianjin
- T/T Credit Card PayPal
You May Like
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Other, rock drill | Power Type: | Other, pneumatic |
| Place of Origin: | Beijing, China | Brand Name: | hargrand | Model Number: | YT28,YT23,YT24, Y26,Y20,B50,SK-10,G7,TCA-7,G10,TPB |
| Usage: | Other, constraction | Voltage: | YT28 Air leg pneumatic rock drill | Power(W): | YT28 Air leg pneumatic rock drill |
| Dimension(L*W*H): | 661mm | Weight: | 26kg | Certification: | ISO9001 |
| Warranty: | 6month | After-sales Service Provided: | No overseas service provided |
Product Description

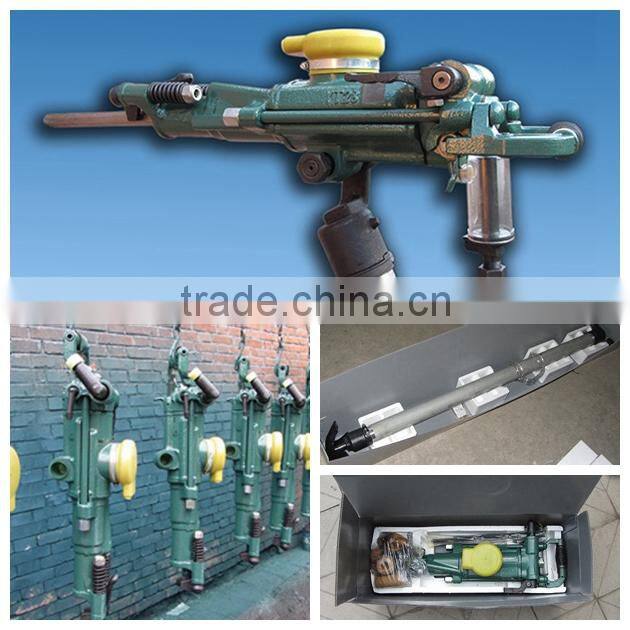

Hot Sale YT28 Air leg pneumatic rock drill
YT28 Air leg pneumatic rock drill Application:
The Products are mainly used in construction sites, various types of mines, railways, water conservancy construction national defense construction areas of drilling operations.
YT28 Air leg pneumatic rock drill Product Features:
YT28 pusher leg rock drill apply in hard rock on the rock drill operation, it has strong adaptability to the working conditions. The product is energy efficiency, Its components has long life durable.
The machice can be generally used with the same type, it can greatly reduce the customer loss spare part replacement.
YT28 Air leg pneumatic rock drill Technical specifications | |
Type | YT28 |
Weight | 26 (Kg) |
Length | 661 (mm) |
Cylinder dia | φ80 (mm) |
Piston stroke | 60 (mm) |
Working pressure | 0.4~0.5 (Mpa) |
Impact energy | ≥60.2 (J) |
Impact frequency | ≥37(Hz) |
Air consumption | ≤81 (L/s) |
Working water pressure | 0.2~0.3 (Mpa) |
Air pipe inner dia | φ25 (mm) |
Water pipe inner dia | φ13 (mm) |
Rock drill hole dia | φ34~φ42 (mm) |
Rock drill hole depth | 5 (m) |
Shank size | 22×108 (mm) |

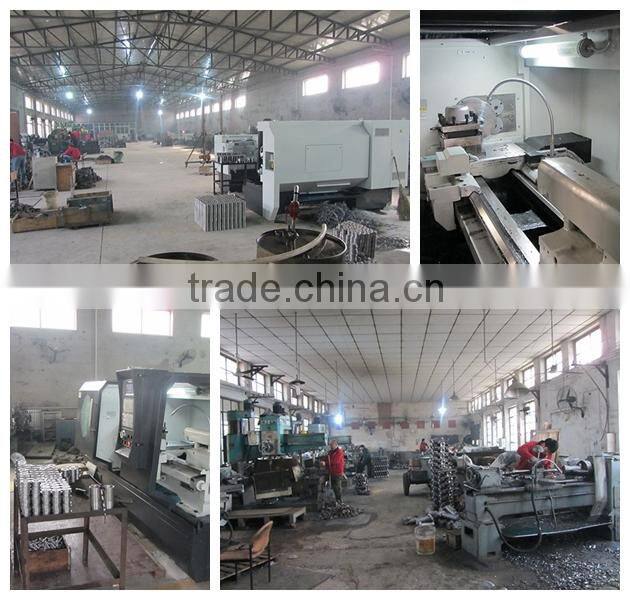

YT28 Air leg pneumatic rock drill factrory:
other pneumatic rock drill tools:
-YT28,YT23,YT24,YT29A,YT27
-Y26,Y24,Y20,Y19A,Y018
-YSP45
-YGZ70,YGZ90
-B87C,B67,B47,B50
-SK—10
-G7/TCA-7
-G10 series
-TPB—40,TPB—60,TPB—90
leading supplier of Rock DrillingTools In China -FAQ
Payment terms:100% by TT ,
Delivery time:5 days after deposit
Supply ability:2000 pcs per month.
If you want to get more information,please contact me.
Name:Eric Qin
Skype id:hargrand163
