Place of Origin Beijing, China
Model Number TYE-MR

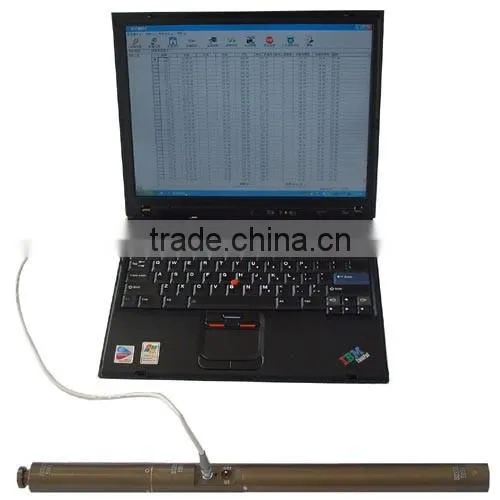

Electronic multi shots inclinometer mainly is used in the scope of measuring the attitude parameters of petroleum well engineering and measuring the bending of geological drilling. When working down a well, according to the preset working mode the primary measurement data are stored in the memories installed in probe. When the instrument returns to the surface, computers and other surface instruments will retrieve the data stored in memories and calculate inclination, azimuth, tool face, temperature and so on as required by drilling. Data processing, plotting and printing can be completed further. By using the same probe tube, the inclination, azimuth and tool face of a certain point can be measured, as well as the inclination and azimuth of multi points of a certain well section.



Technical Parameter
Inclination
0°~180°   ±0.2°
Azimuth:
0°~360° ±1.0°
Tools face
0°~360°   ±1.0°
Max. Temp.

125℃  TYE-MR/ME
OD
Φ27~Φ45mm    TYE-MR
Max Pressurement
75Mpa TYE-MR
120Mpa TYE-ME
140Mpa TYE-MT
Impact resistance
2000g, 0.5ms
Shock resistance
10g,20~100Hz
Uninterrupted  operating period
≥ 12h
Range of delay
1~1000 min
Min time interval
1 min
Time interval
15~1000s
