Help CenterGeological Drilling Electronic Inclinometer
Related Products
Leading supplier of Inclinometer:
1. Customised Service.
2. High quality.
3. Fast delivery.
4. Competitive price.
5. 20years experiences

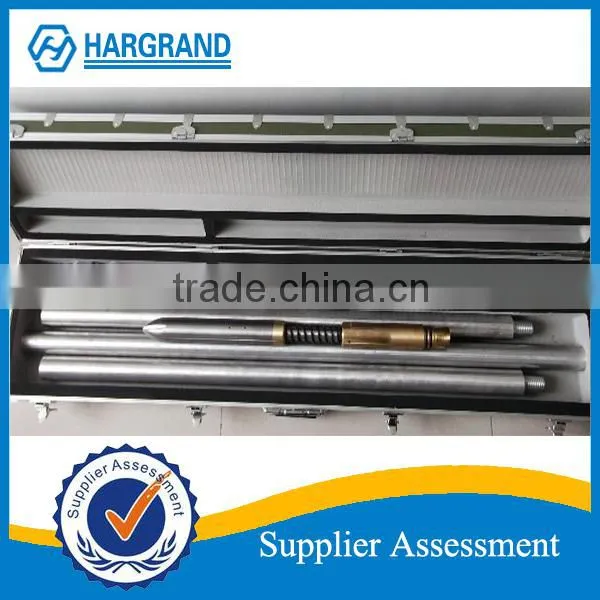

Photographic single shot inclinometer is used to measure the well track in petroleum drilling technology, which has capability of recording the inclination, azimuth of well and the face angle of high-side tool used for elbow on the film by means of optical imaging. With features of simple recording, easy reading, easy explanation and permanently storable, it is suitable for measuring the inclination, azimuth of well and the face angle of high-side tool of elbow. It consists of instrument assembly and the protecting cartridge assembly. A selected angle unit, timer and other parts can be assembled together and put in protecting cartridge when using. Either throwing measuring mode or suspending measuring mode is available.
Technical Parameter | |
Inclination Accuracy |
0°~90° |
0°~10° ±0.2° 0°~20° ±0.2° 15°~90° ± 0.25° | |
Azimuth: |
0°~360° ±0.5° |
Max. Temp. |
105℃ TYP-R/TYP-E 250℃ TYP-T |
OD |
Φ31.75~Φ45mm TYP-R Φ27~Φ35mm TYP-E Φ27mm~Φ31.75mm~Φ45mm TYP-T |
Depth of well≤4000m |
≤4000m |
Max. pressure |
60~100Mpa |

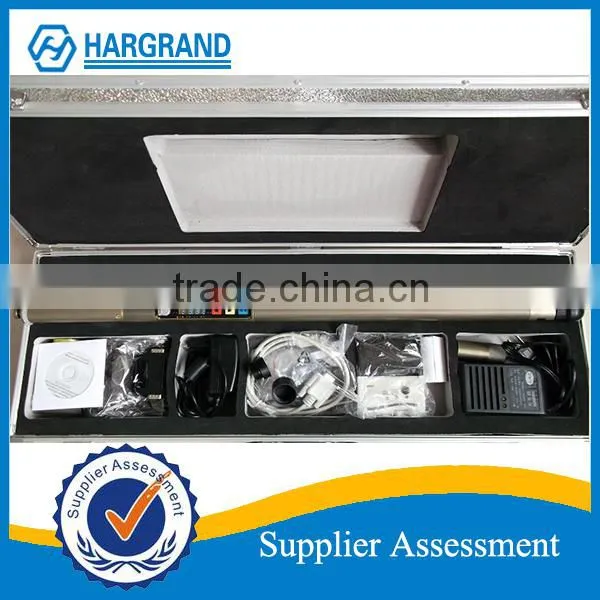

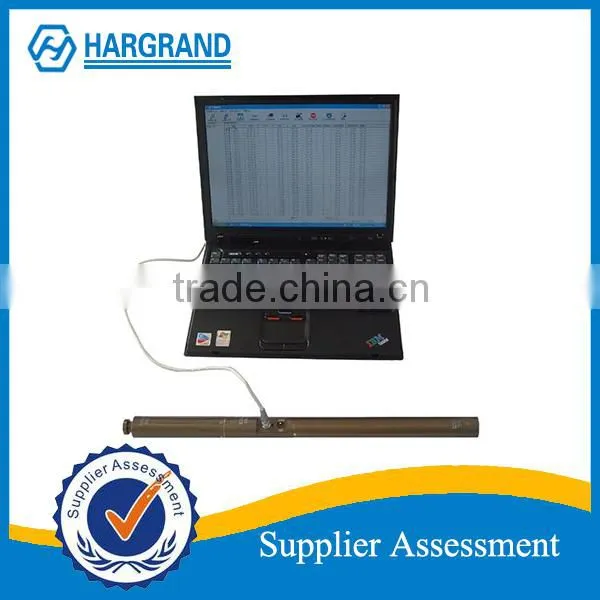

Electronic multi shots inclinometer mainly is used in the scope of measuring the attitude parameters of petroleum well engineering and measuring the bending of geological drilling. When working down a well, according to the preset working mode the primary measurement data are stored in the memories installed in probe. When the instrument returns to the surface, computers and other surface instruments will retrieve the data stored in memories and calculate inclination, azimuth, tool face, temperature and so on as required by drilling. Data processing, plotting and printing can be completed further. By using the same probe tube, the inclination, azimuth and tool face of a certain point can be measured, as well as the inclination and azimuth of multi points of a certain well section.
Technical Parameter | |
Inclination |
0°~180° ±0.2° |
Azimuth: |
0°~360° ±1.0° |
Tools face |
0°~360° ±1.0° |
Max. Temp. |
125℃ TYE-MR/ME
|
OD |
Φ27~Φ45mm TYE-MR |
Max Pressurement |
75Mpa TYE-MR 120Mpa TYE-ME 140Mpa TYE-MT |
Impact resistance |
2000g, 0.5ms |
Shock resistance |
10g,20~100Hz |
Uninterrupted operating period |
≥ 12h |
Range of delay |
1~1000 min |
Min time interval |
1 min |
Time interval |
15~1000s |
Quality DrillingTools Manufacturer In China -FAQ
Payment terms:100% by TT ,
Delivery time:10 days after deposit
