Specifications
laser cut wood die making machine 9060Safety and limit switch.
Offline operation, LCD panel
1500hrs 10000hrs tub
laser cut wood die making machine 9060
Appliacble Materials:
Our laser machine is suit for wood , die board, MDF ETC hard wood cutting works. cutting thickness 1-3cm.Tt also suit for fabrics, label, paper boards, leather, embroidery, acrylic ,wooden plates and paper ware etc non-metal material.
Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc

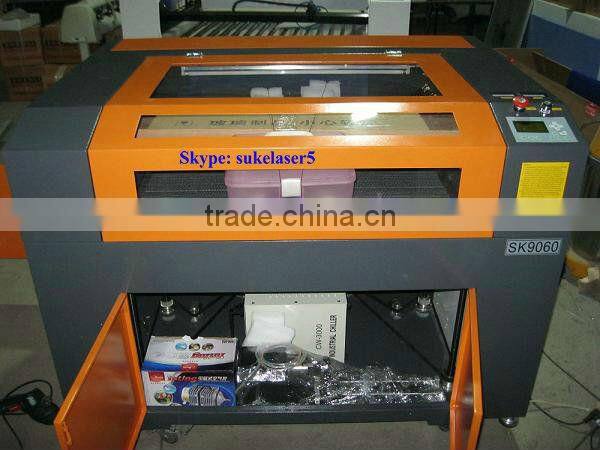

Machine Photos laser crystal engraving machine price SK9060
SK1390 Basic information
Model |
Laser cutting machine SK9060 |
Working area |
900*600mm |
Laser tube power |
60w,80w,100w (can be optional) |
laser type |
Sealed CO2 laser tube, water-cooling, 10.6um |
Working life of tube |
1500hours 10000hours |
Max Engraving speed |
0 - 6,000mm/min |
Cutting speed |
0- 30,000mm/min |
Location precision |
≤0.01mm |
Resetting positioning accuracy |
0.01mm |
Laser tuber cooling |
Water cooling |
Power supply |
AC 110 - 220V , 50 - 60Hz |
Min. shaping character |
Chinese 2mm*2mm,English 1mm*1mm |
Supported graphic |
BMP, HPGL, PLT, DST, DXP, and AI |
Driving system |
Stepper motor |
360° slope engrave |
Yes |
Operating system |
Windows98/ME/2000/XP/VISTA/2007 |

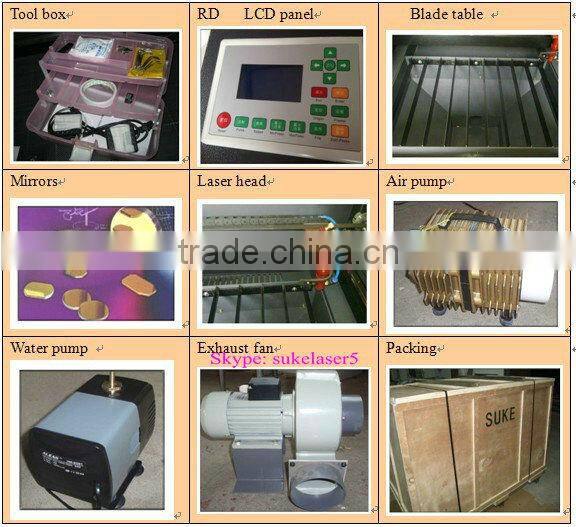

Standard accessories |
(1)laser engraving cutting software --laser cut 5.3(English version) (2)User manual of machine (English version) (3) User manual of software (4)USB cable (5)communication cable (6) air exhaust fan (7)air pump (8)3 reflecting mirrors (has been installed in the machine) (9)one focus lens(has been installed in the machine ) (10)one laser tube(has been installed in the machine) (11) tool box that you need to repair or maintenance |
Optional parts |
(1) extra laser tube (2) motorized up and down platform (3) rotary attachment (4) red dot printer (5) industrial chiller cw5000 (6) auto focus (7) CCD camera (8) double laser head (9) auto feeding system |
Software supported |
CorelDraw, AutoCAD , Photo shop |
Operating temperature |
0°C~45°C |
Operating humidity |
5%~95% |
Gross power |
≤1500w |
Computer interface |
USB port and Standard printer port |
English manual |
Tell you how to run the laser machine and also the problems and solutions |
Regarding assistant equipment:
Samples:
Warrany terms:
1. 1 year for the whole machine.
2. 3 months for laser tuber(ordinary quality ),lens and mirror.(8 month for good quality laser tube)
3. 6 months for equipments outfit, such as water pump, fan, air pump,ect
4. If you meet the problems, we can solve it with pictures, videos ect .
5. Lifely and fast technical guide and solution within 24 hours by email and web,msn or skype!
