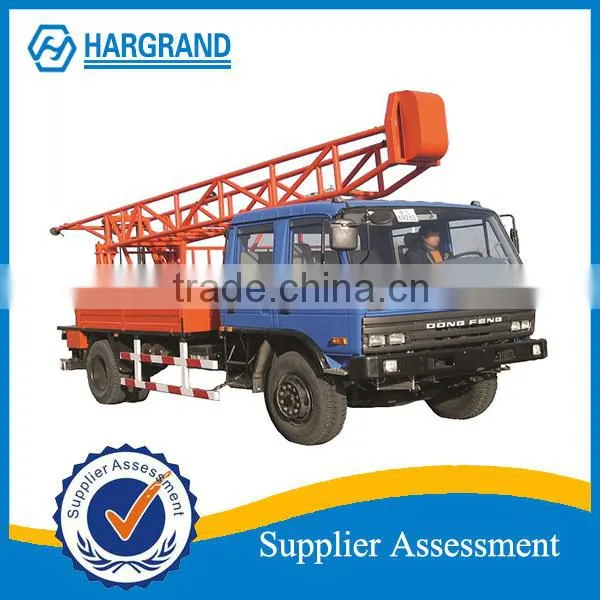

DPP100-5C1 Mobile Drill rig Introduction:
DPP100-5C1 mobile drill is one kind of rotary drilling equipment installed on the chassis of ‘Dongfeng’ diesel truck, the truck meets the china IV emission standard, the drill equipped with transpose positions and auxiliary hoisting device, drilling fed by hydraulic oil pressure.
1. Application Range
(1) Exploration in shallow holes of mine, and seismic exploration drilling.
(2) Drilling holes in liquids and natural gas exploitation.
(3) Drilling holes for construction blasting.
(4) Geological exploration and shawllow water well drilling.
2. Main Features
(1) Having hydraulic pressure and high ability of pulling down and pulling up. The operation is easy and secure.
(2) The mian hoist provided is planetary hoisting; the operations are easy, safe and reliable. The auxiliary hoisting device provides impacting operating.
(3) The mud pump is high self-adsorb ability and can be regulated 10 kind flows.
(4) Rotary table can automatic transpose position to get out off the hole; thus the labor intensity is reduced and the drill's service life is prolonged.
(5) The driver rod has high rigidity, weightier, being pressure by self-weight.
(6) Having hydraulic mast and four stabilizers, convenient in operation.
(7) Long feeding stroke, auxiliary time reduced, drilling efficiency improved.
(8) The cab of this equipment is sealed bi-rows cab; capacity of this cab is 6 persons.
Technological Data of YDC-2A1 mobile drilling rig :
1. Fundamental parameters
Maximum drilling depth With 7-3/4" (200 mm) bit 70 m
With 5-3/4" (150 mm) bit 100 m
Hex Kelly bar (across flats x length) 75 X 5500 mm
Diameter of drilling rod 50 mm
Overall dimension (L x W x H) 9110 x 2462 x 3800 mm
Outfit weight 10650 Kg
2. Rotary table
Spindle speed 65, 114, 192 rpm
Maximum feeding capacity 48 KN
Maximum pulling capacity 70 KN
Feeding stroke 1200mm
Transpose stroke 450 mm
3. Main hosting device
Rotation speed of drum 28, 48.8, 82.3 rpm
Hosting speed (single wire) 0.313,0.544,0.917 mls
Single wire lifting capacity 12.5 KN
Diameter of the wire rope 13 mm
4. Mud pump
Type BWT - 450
Maximum operating pressure 2 MPa
Maximum displacement of water 450 L/min
5. Hydraulic oil pump
Type CBE 32
Operating pressure 8 MPa
Hydraulic oil flow 35 L/min
6. Hydraulic mast
Diameter of cylinder 100 mm
Maximum operating pressure 8 MPa

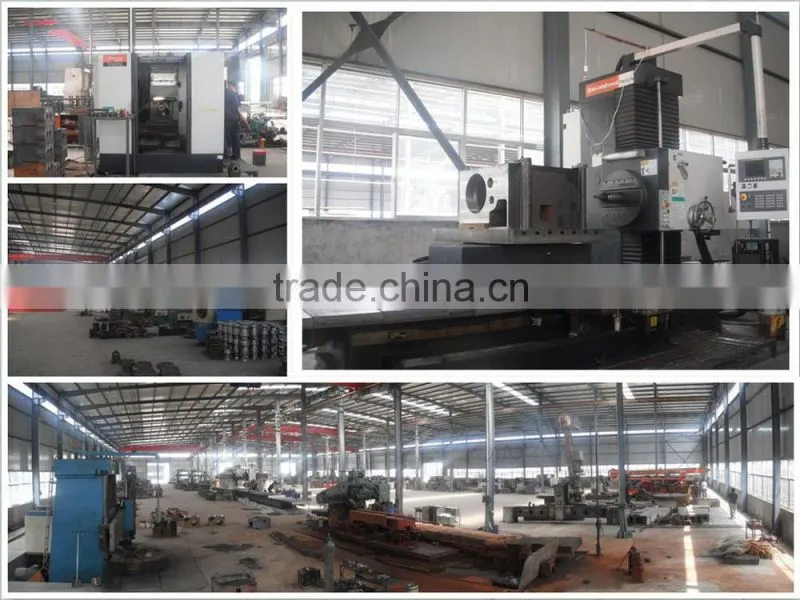

Drill rigs Factory:

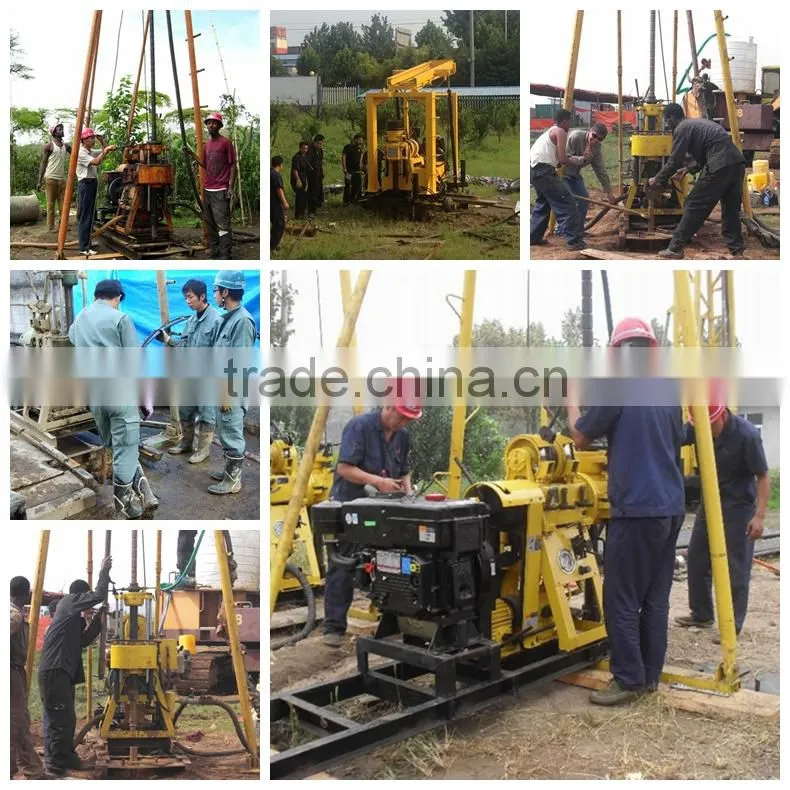

DPP100-5C1 Mobile Drill rig Customer:
Quality Drill rigs Manufacturer In China -FAQ
Payment terms:100% by TT ,
Delivery time:10 days after deposit
Supply ability:1000 pcs per month.
If you want to get more information,please contact me.
Name:Eric Qin
Skype id:hargrand163
