Home > Products > CO2 Laser Cutting Machines > Wood block laser cutting machine 1200*900mm
Wood block laser cutting machine 1200*900mm
- 200 Set / Sets per Month
- Qingdao Shanghai
- T/T Credit Card PayPal
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood |
Cutting Thickness: | 20mm acrylic | Cutting Area: | 1200*900mm | Cutting Speed: | 0-30000mm/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | Leetro 6525/RD |
Graphic Format Supported: | AI, PLT, DXF, BMP, DST, DWG, DXP | Place of Origin: | Shandong, China | Brand Name: | SUKE |
Model Number: | SK1290 | Certification: | CE, Other, CE, FDA | After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
Wood block laser cutting machine 1200*900mm1.10000hrs Reci laser 120w.
2. 60000mm
3. USB port LCD screen
3. CE FDA
Wood block laser cutting machine 1200*900mm
Appliacble materials:
Our laser machine is suit for wood , die board, MDF ETC hard wood cutting works. cutting thickness 1-3cm.Tt also suit for fabrics, label, paper boards, leather, embroidery, acrylic ,wooden plates and paper ware etc non-metal material.
Technical parameters:
Model | Laser cutting machine SK1290 |
Working area | 1200*900mm |
Laser tube power | 60W/80W/100W/130w/150w(can be optional) |
Laser tube type | Sealed CO2 laser tube, water-cooling, 10.6um |
Life of laser tube | 1500 hours, 10000hours for RECI tube |
Max Engraving speed | 0-60000mm/min |
Cutting speed | 0-30000mm/min |
Cutting thickness | 1-20mm acrylic (others determined by the material ) |
Resolution ratio | <0.01mm |
Location precision | <0.01mm |
Min shaping character | Chinese 2*2mm,English1*1mm |
Support graphic format | DST, PLT, BMP,DXP and AI |
Software supported | CorelDraw, AutoCAD, Photoshop |
Power supply | AC110-220V 50-60HZ |
Operating temperature | 0– 40 centigrade degrees |
Operating humidity | 5%-95% Free of condensed water |
Interface | USB |
Assistant equipment | Exhuast-fans, water pump, air pump |
Driving system | stepper |
Control system | DSP |
Consuming power | <1,000W |
Net weight | 370kgs |
Gross weight | 440kgs |
Package size | 185*145*130 cm |

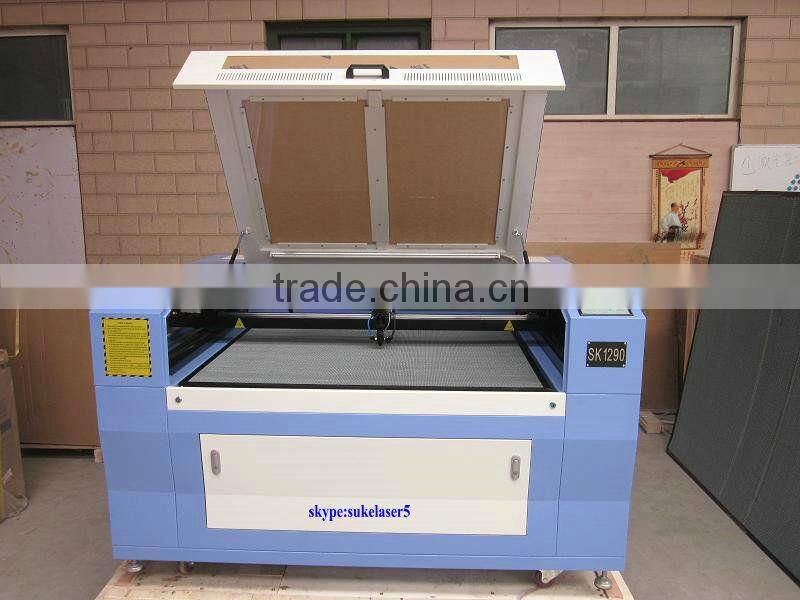

Machine photo
The optional accessories:
1.Lifting platform: to adjust the height of table, for putting 450mm depth materials.
2.Rotary axis: to engrave cylindrical shape materials, such as pens, bottles and so on.
3.Chiller unit: to cool circular water.

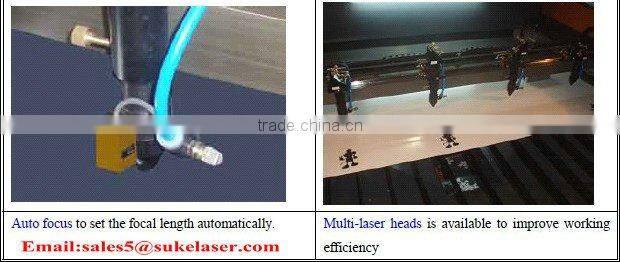

4.Auto focus: to engrave uneven surface.
5.Red point for position :to realize simulation engraving, quickly find the position.
Optional parts
Samples of laser cutting machine/ laser engraving machine /co2 laser cutting machine :
Warrany terms:
1. 1 year for the whole laser cutting machine.
2. 3 months for laser tuber(ordinary quality ),lens and mirror.(8 month for good quality laser tube)
3. 6 months for equipments outfit, such as water pump, fan, air pump,ect
4. If you meet the problems, we can solve it with pictures, videos ect .
5. Lifely and fast technical guide and solution within 24 hours by email and web,msn or skype!
After-sale service
1.Small parts will be supplied to you for free, such as, software CD, dongle.
2. Any problem will be repied to you within 24 hours!
3. By video, online video, solution manual in English, Email, Instant messenger, Telphone.
4. Our distibuter or user in your local place will help you when neccessary!
5. We supply lifelong after-sale service under our professional’s guide for free!
Certificate CE & FDA
We also supply other models as below: laser cutting machine/ laser engraving machine
Model | Working size | Laser power |
SK2525 | 25x25cm | 40w Moshi software |
SK3030 | 30x30cm | 40w Moshi software |
SK4040 | 40x40cm | 40w Moshi software |
SK5030 | 50x30cm | 40w, 60w |
SK9060 | 90x60cm | 60w,80w,100w, 120w 150wReci tube w2 w4 w6 |
SK1280 | 120x80cm | 60w,80w,100w, 120w 150wReci tube w2 w4 w6 |
SK1290 | 120x90cm | 60w,80w,100w, 120w 150wReci tube w2 w4 w6 |
SK1390 | 130x90cm | 60w,80w,100w, 120w 150wReci tube w2 w4 w6 |
SK1490 | 140x90cm | 60w,80w,100w, 120w 150wReci tube w2 w4 w6 |
SK1610 | 160x100cm | 60w,80w,100w, 120w 150wReci tube w2 w4 w6 |
SK1325 | 130x250cm | 60w,80w,100w, 120w 150wReci tube w2 w4 w6 |
Note: above is our standard models, customize is accepted according your needs |
If you are interesting in any, please do not hesitate to contact me.
I will reply for you within 24 hours.
Wish we can have the chance for supplying our best service for you !
