Specifications
1325 multifunction woodworking machine1.1300*2500mm work area
2. 3 kw spindle
3.3D engraving
4. CE certificate
1325 multifunction woodworking machine
Products Feature
1. Whole lathe bed is in steel structure of high stability.
2. Racks and gears transmission with high-speed motor keeps smooth movement in fast accuracy.
3. Breakpoint restoring function enable the machine continue to work after sudden stop, such as accident, tool breaking.
4. Wide software compatibility with processing files generated by Type3, ArtCAM, Artcut, Auto CAD, JDPaint etc, CAD/CAM design software.
5. Oil lubrication system lubricating tracks, ensures machine ‘s precision and service time.
Technical Parameter
Model |
SK1325-II |
Machine structure |
Square tube lathe bed, vacuum table |
Working holding |
By clamps |
X Y movement |
Rack and gear |
Z movement |
Ball screw/ German |
Guide/rail |
Round rail/Taiwan HIWIN |
Precision (mm) |
0.07 |
Positioning accuracy (mm) |
0.02 |
Repeatability (mm) |
0.02 |
Idling speed (mm/min) |
25000 |
Working speed (mm/min) |
15000 |
spindle |
3kw Water cooling (0-24000rpm) |
Available tools (mm) |
Φ3.175~Φ12.7 |
Drive system |
Stepper motors |
Working voltage |
AC380V±30V, 50HZ |
Command code |
G code (*.nc,*.mmg, 8.u00, etc.),*.eng |
Control system |
DSP system |
Compatible software |
Compatible with any software generating G code file in window 98/XP/7 |
Optional parts |
1. Specified power, air-cooling (0-18000 rpm) 2. Automatic tool changer 3. Servo motors 4. Tool cooling system with sink 5. Rotary device |
Sample Display

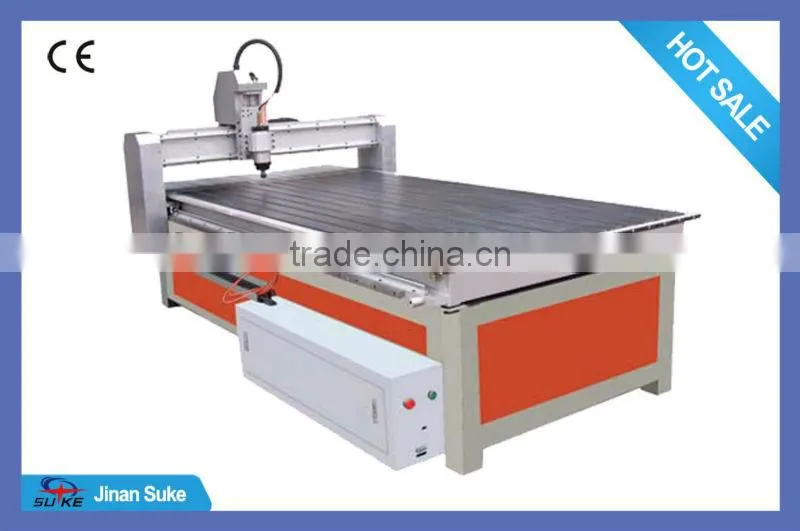

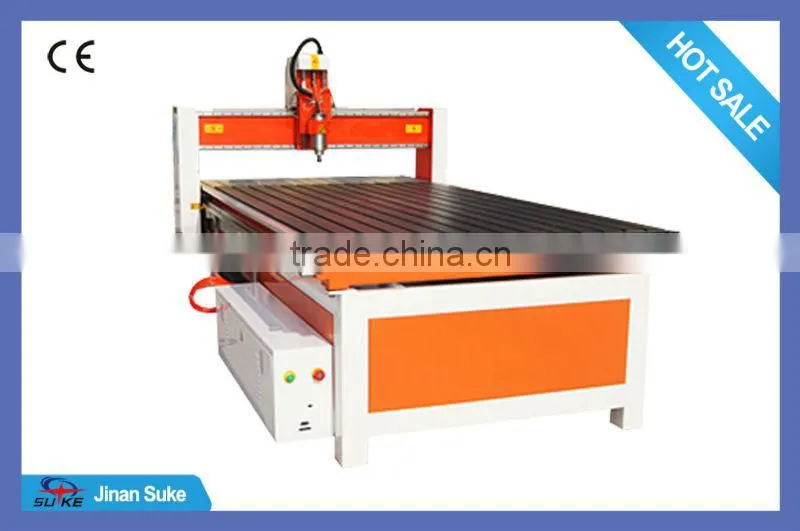

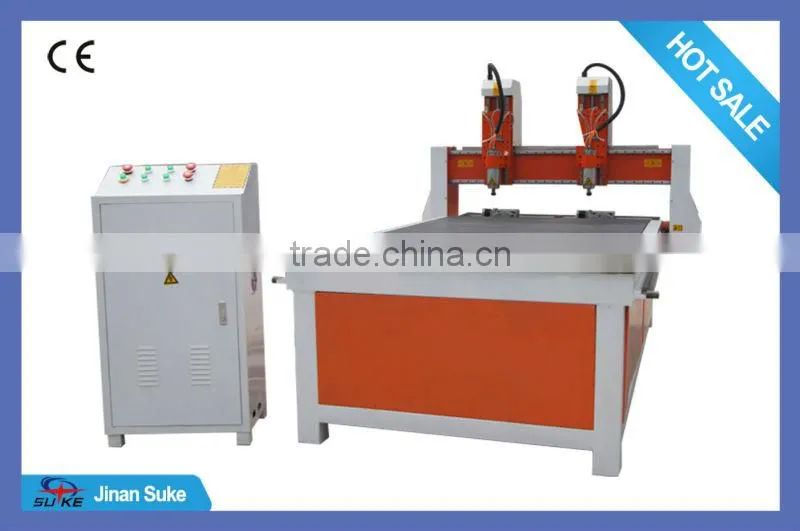

Machine Picture
Warranty terms
1. 1 year for the whole machine.
2. Detail manual and video to guide the uses how to use the machine and maintenance, also supply the
specification settings for the speed and power to engrave or cut various material.
3. If you meet the problems, we can solve it with pictures, videos etc.
4.Lifelong and fast technical guide and solution within 24 hours by email and web, msn or skype!
If any interesting, please don't hesitate to contact us !
Skype: sukelaer5
