Specifications
cnc cutting machine SK1325 OEM available1.CE certificate
2.4.5kw 24000rpm water cooling spindle
3.405Bstepper motor

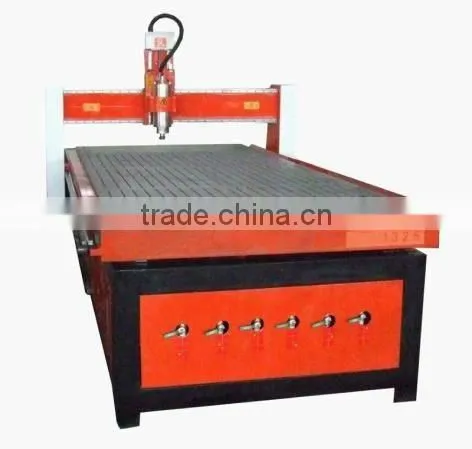

cnc cutting machine SK1325 OEM available
Feature
1. Square tube lathe bed , stable , not deformation with heavy-duty.
2. Vaccum table and vacuum pump , working without clamps to improve the work efficiency.
3.X,Y,Z axis are square orbit Hiwin , ensuring the high precision.
4.X,Y rack and gear transmission movement, Z axis with german ball screw 30mm
5. Y axis with two stepper motors, improve the working speed.
6. 4.5kw water cooling spindle with 24000rpm rotation speed, good refrigeration, high stable with low fault.
7. DSP control system , DSP handle operation
8. MA860 Leashine driving system
9. Automatic oiling system, machine working with low noise and smoothly, extend the using time.
10.Standard gantry height: 200mm (customize is avaiable )
Technical Data
Model |
SK1325-III |
Machine structure |
Square tube lathe bed, vacuum table |
Working holding |
By vacuum |
X Y movement |
Rack and gear |
Z movement |
Ball screw/ German |
Guide/rail |
Round rail/Taiwan HIWIN |
Precision (mm) |
0.07 |
Positioning accuracy (mm) |
0.02 |
Repeatability (mm) |
0.02 |
Idling speed (mm/min) |
25000 |
Working speed (mm/min) |
15000 |
spindle |
4.5kw Water cooling (0-24000rpm) |
Available tools (mm) |
Φ3.175~Φ12.7 |
Drive system |
Stepper motors |
Working voltage |
AC380V±30V, 50HZ |
Command code |
G code (*.nc,*.mmg, 8.u00, etc.),*.eng |
Control system |
DSP system |
Compatible software |
Compatible with any software generating G code file in window 98/XP/7 |
Optional parts |
1. Specified power, air-cooling (0-18000 rpm) 2. Automatic tool changer 3. Servo motors 4. Tool cooling system with sink 5. Rotary device |
Spare parts display
We also supply 600*900mm, 1200*1200mm 1200*1800mm, 1200*2400mm 1300*2500mm 2.2kw spindle 1300*2500mm 3kw spindle, 1300*2500mm 4.5kw spindle Customize is available .
