Specifications
Hot sales wood carving machine 1325-I1.Steel structure lathe bed
2.5.5kw Vacuum table
3.Rack transmission Y axis two motors

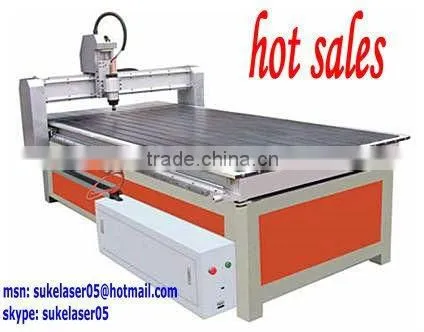

Hot sales wood carving machine 1325-I
Machine Feature
1. Whole lathe bed is steel structure with high stability , Solid and reliable, the deformation, carrying heavy
2.X,Y axis Gear transmission to ensure high engraving accuracy.
3. Y axis with two stepper motors to ensure the high speed movement
4. Z axil with German ball screw
5.Aluminum working table with PVC to extend the table using time
6. 5.5kw vacuum table to adsorb the material to be engraved , saving time , improve working efficiency (optional parts)
7.2.2kw water cooling spindle(0-24000rpm) and inverter, good refrigeration, smooth running with low fault (Specified power, Air cooling spindle0-18000rpm ,multi-head is aviailable )
8.Leadshine driving system
9. NC studio Computer control system
10. Standard gantry height :150 mm (Customization is aviable )
Spare parts display
Technical Parameter
Model |
SK1325-I |
Working area (x*y*z) |
1300*2500*150 |
Machine structure |
Steel structure lathe bed and T-slot of sectional material |
Work holding |
By clamps |
Overall dimensions (mm) |
3100*1810*1750 |
X Y movement |
Rack and gears |
Z movement |
Ball screw/ German |
Guide/rail |
Round rail/Taiwan HIWIN |
Precision (mm) |
0.07 |
Positioning accuracy (mm) |
0.02 |
Repeatability (mm) |
0.02 |
Idling speed (mm/min) |
28000-32000 |
Working speed (mm/min) |
15000 |
spindle |
2.2kw Water cooling (0-24000rpm)
(Specified power, Air cooling spindle0-18000rpm ,multi-head is aviailable )
|
Available tools (mm) |
Φ3.175~Φ12.7 |
Drive system |
Stepper motors |
Working voltage |
AC220V±30V, 50HZ
AC380V±30V,50HZ for 2.2 kw |
Command code |
G code (*.nc,*.mmg, 8.u00, etc.),*.eng |
Control system |
NC Studio |
Compatible software |
Compatible with any software generating G code file in window 98/XP/7 |
Sample display
