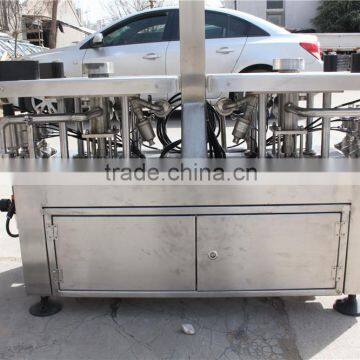

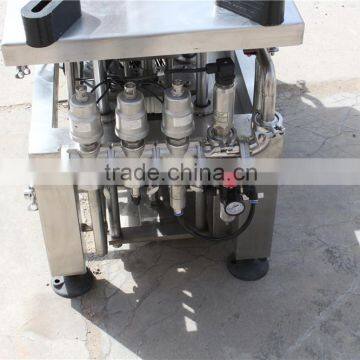

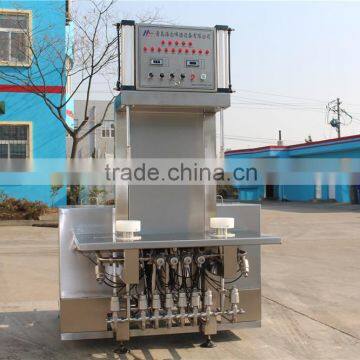

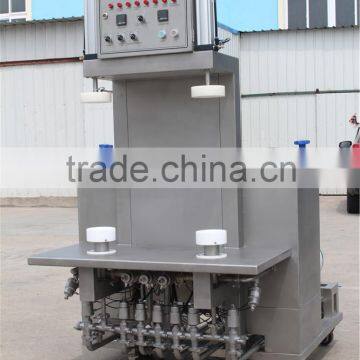

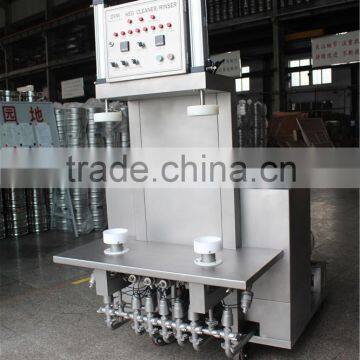

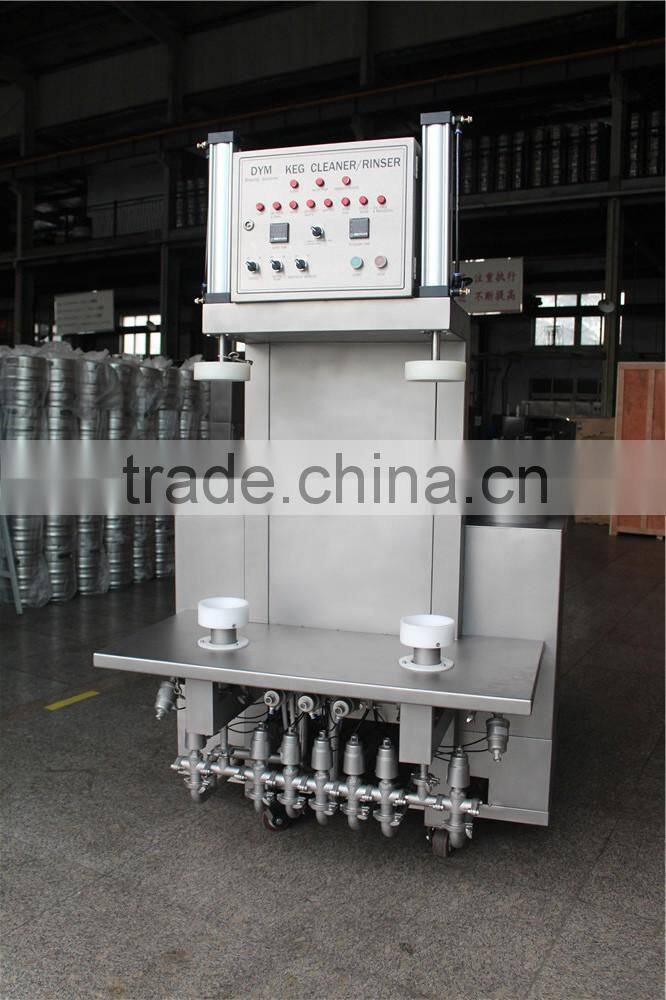

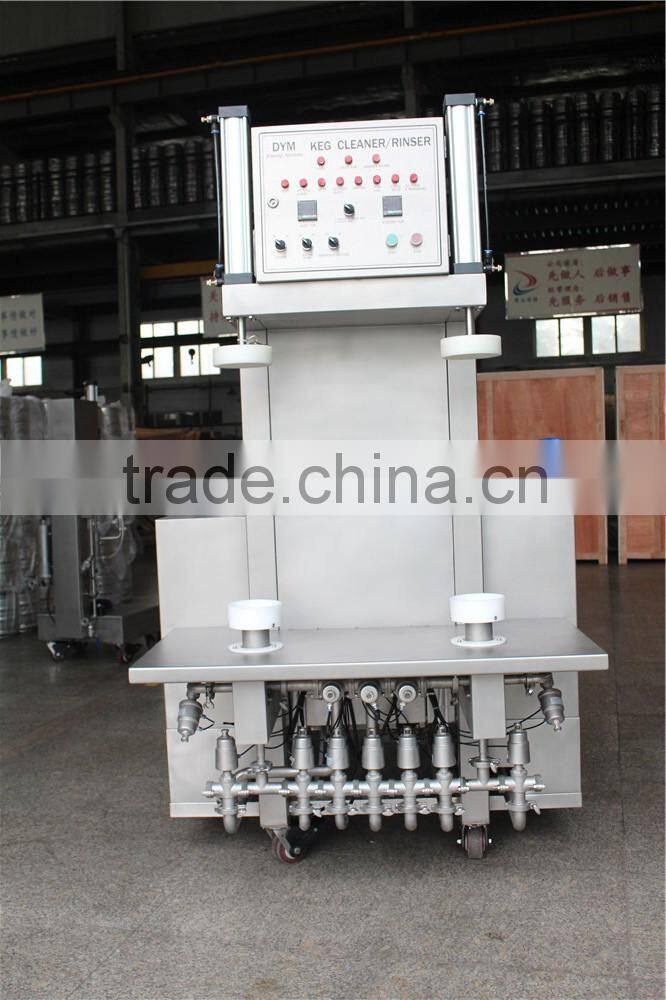

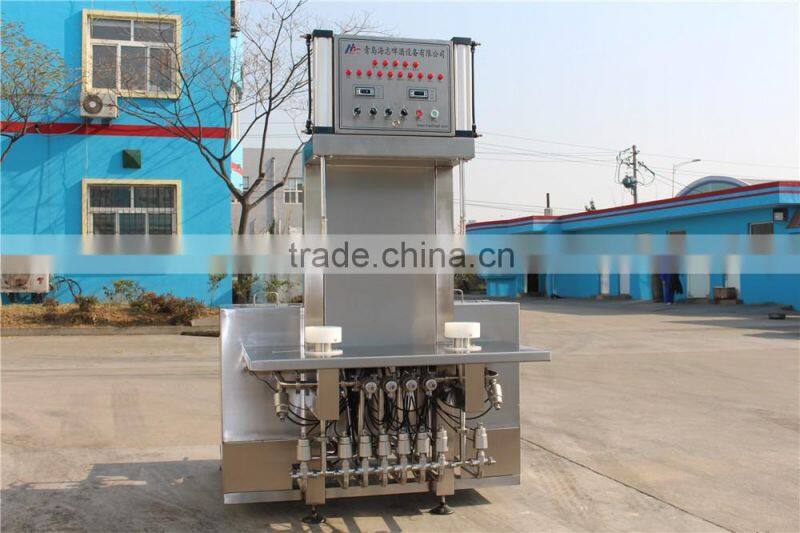

Help CenterChina High Quality Two Heads Beer Keg Cleaning Machine
Related Products
-
Double Heads Electric Heating or Steam Heating Beer Can Washing MachineUS$ 6,000 - 7,000MOQ: 1 Set -
Double Heads Beer Barrel Washing Machine EquipmentUS$ 6,000 - 7,000MOQ: 1 Set
-
50l Two Heads Beer Canning Washing Machine EquipmentUS$ 6,000 - 7,000MOQ: 1 Set
-
Double Heads Beer Can Washing MachineUS$ 6,000 - 7,000MOQ: 1 Set
-
Customized Beer Keg Washer MachineUS$ 6,000 - 7,000MOQ: 1 Set
Specification and Parameters:
table-board size |
900mm×450mm |
table-board height |
750mm |
|
exterior dimension |
1000mm×1600mm×1950mm |
cylinder max stroke |
350mm |
|
net weight |
200Kg |
|
power |
2Kw/17KW |
|
capacity |
50-80 kegs/hour |
|
cleaning mode |
keg topside down |
|
Applicable keg |
diameter φ250~φ500 height 360mm~600mm |
|
air source pressure |
0.5~0.7Mpa |
|
CO2 source pressure |
0.4~0.6Mpa |
|
cylinder valve pressure |
0.4~0.5Mpa |
|
CO2 valve pressure |
0.2~0.25Mpa |
|
Air-blow valve pressure |
0.3-0.4Mpa |
|
sterile water pressure |
0.3Mpa |
|
steam pressure |
0.3-0.4Mpa |
|
power voltage |
380V 3P 60HZ |
Main Structures and Characteristics
This machine mainly contains the frame, electric system, air system and other pipeline system. The characteristics are as follow:
1.All parameters (time values) can be adjusted without stopping the machine.
2.Maximum straight-line design on main cleaning pipelines makes sure the powerful and thorough scouring.
3.Twin-acting pneumatic valve with reliable quality and anti-high temperature characteristic.
4.Adoption of world top products as main accessories makes sure premium quality.
5.With steaming function for both of sterilization and water tanks heating.
Working Procedures
Load the keg → start (cylinder pressing tightly) → air blowing (draining residue) → scoured by clean water → air blowing (draining water) → extracting tube scoured by lye → air blowing → scoured by lye → air blowing (circulation of lye) → scoured by clean water → air blowing (draining water) → steam blowing → CO2 blowing → scoured by sterile water → CO2 blowing → prepare CO2 pressure → reset the cylinder → unload the keg
