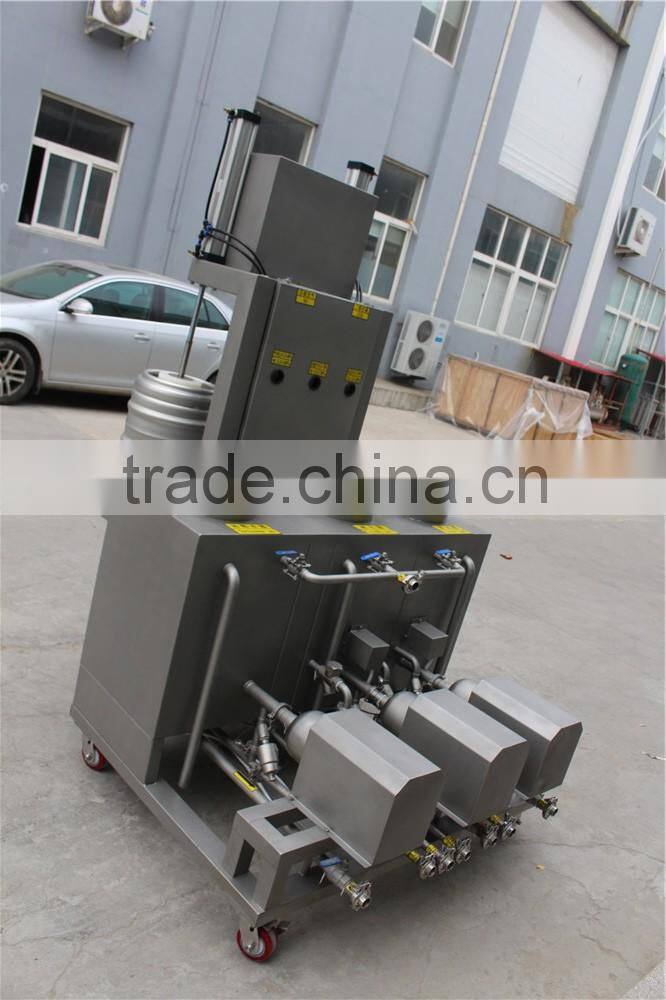

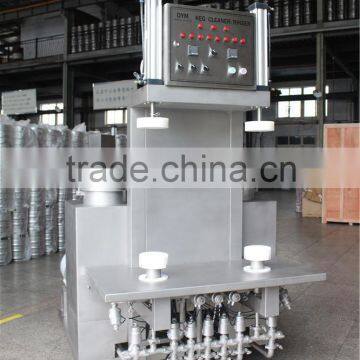

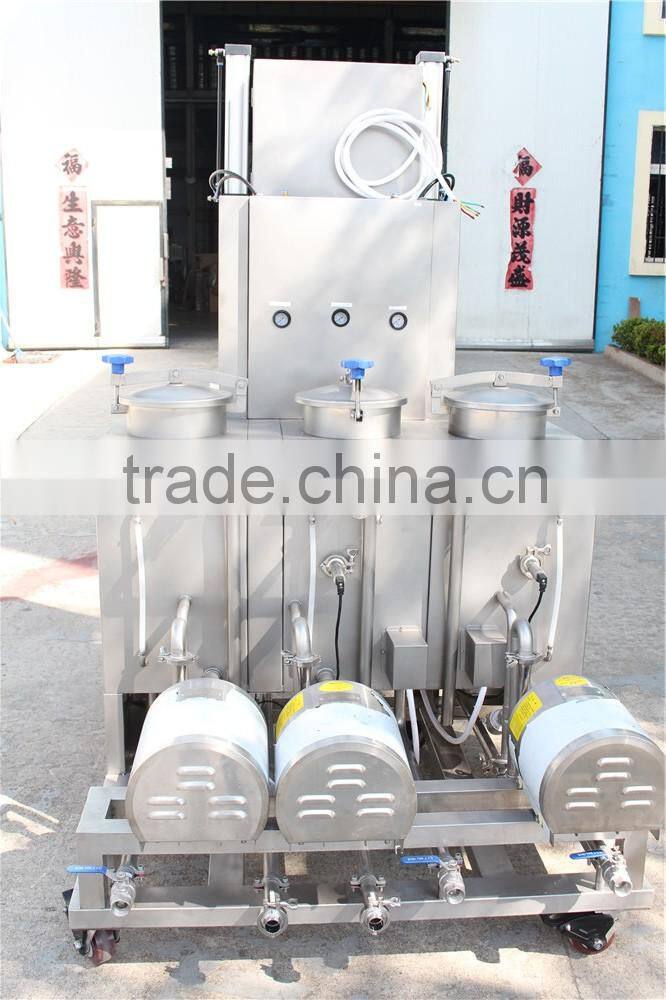

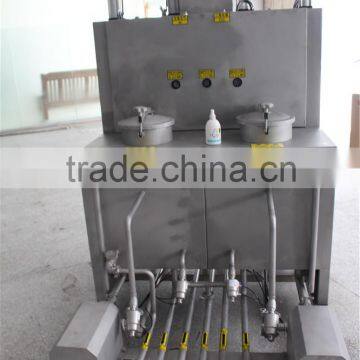

Help Center50l Two Heads Beer Canning Washing Machine Equipment
Related Products
-
Double Heads Beer Can Washing MachineUS$ 6,000 - 7,000MOQ: 1 Set -
Customized Beer Keg Washer MachineUS$ 6,000 - 7,000MOQ: 1 Set
-
Beer Barrel Washing System EquipmentUS$ 6,000 - 7,000MOQ: 1 Set
-
Threee Heads Beer Keg Cleaning MachineUS$ 6,500 - 7,500MOQ: 1 Set
-
Beer Can Washing SystemUS$ 6,000 - 7,000MOQ: 1 Set
Specification and Parameters:
table-board size |
900mm×450mm |
table-board height |
750mm |
|
exterior dimension |
1000mm×1600mm×1950mm |
cylinder max stroke |
350mm |
|
net weight |
200Kg |
|
power |
2Kw/17KW |
|
capacity |
50-80 kegs/hour |
|
cleaning mode |
keg topside down |
|
Applicable keg |
diameter φ250~φ500 height 360mm~600mm |
|
air source pressure |
0.5~0.7Mpa |
|
CO2 source pressure |
0.4~0.6Mpa |
|
cylinder valve pressure |
0.4~0.5Mpa |
|
CO2 valve pressure |
0.2~0.25Mpa |
|
Air-blow valve pressure |
0.3-0.4Mpa |
|
sterile water pressure |
0.3Mpa |
|
steam pressure |
0.3-0.4Mpa |
|
power voltage |
380V 3P 60HZ |
Main Structures and Characteristics
1.All parameters (time values) can be adjusted without stopping the machine.
2.Maximum straight-line design on main cleaning pipelines makes sure the powerful and thorough scouring.
3.Twin-acting pneumatic valve with reliable quality and anti-high temperature characteristic.
4.Adoption of world top products as main accessories makes sure premium quality.
Working Procedures
Load the keg → start (cylinder pressing tightly) → air blowing (draining residue) → scoured by clean water → air blowing (draining water) → extracting tube scoured by lye → air blowing → scoured by lye → air blowing (circulation of lye) → scoured by clean water → air blowing (draining water) → steam blowing → CO2 blowing → scoured by sterile water → CO2blowing → prepare CO2 pressure → reset the cylinder → unload the keg
