240v Single Phase Online Ups 10000va for Home Application

240v Single Phase Online Ups 10000va for Home Application thumbnail-1
240v Single Phase Online Ups 10000va for Home Application photo-1
US$ 519 - 632 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Must Solar
Model Number:
C10k
Contact Supplier Request Quote Chat Now
Shenzhen Must Solar Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Must Solar
Model Number C10k
Phase Single Phase
Protection Unbalanced Loads
Weight 65KG
Output Voltage 240v
Type On-line
Application Security / Monitoring / Alarm

Specifications

1.Single phase
2.Rated power 10000va
3.output voltage 240v
4.for home application
5.Lcd display

240v Single phase online ups 10000va for home application



Main feature



  • True on-line double conversion technology with advanced microprocessor control
  • Wide input voltage range with high frequency technology
  • Zero transfer time
  • Protection against all type of power problems
  • Self test while start of the UPS
  • Site wiring fault warning
  • On-battery power-on function
  • Smart RS232 communication interface
  • Intelligent slot available
  • Sealed acid battery, free-maintenance battery

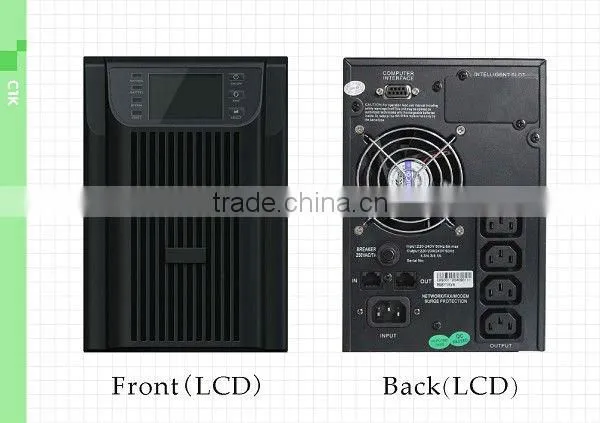

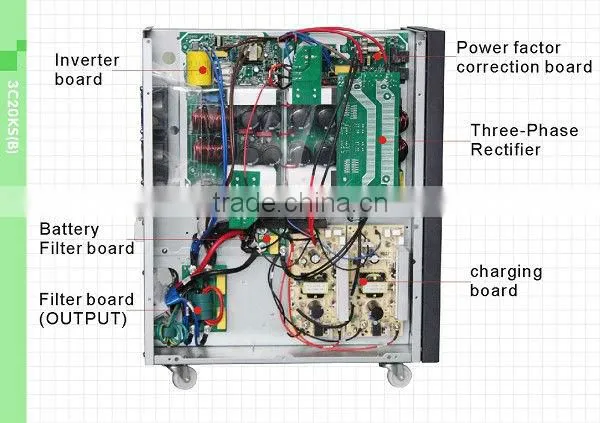

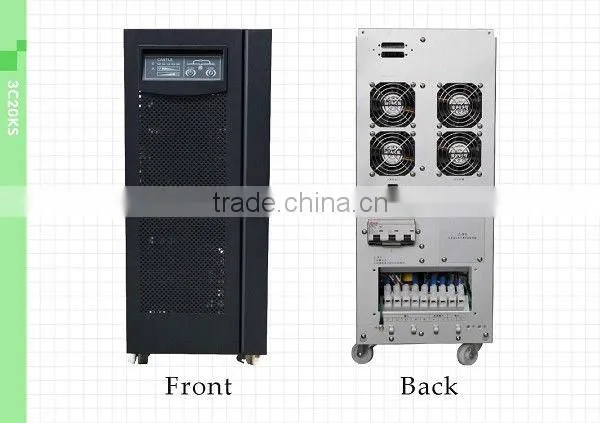

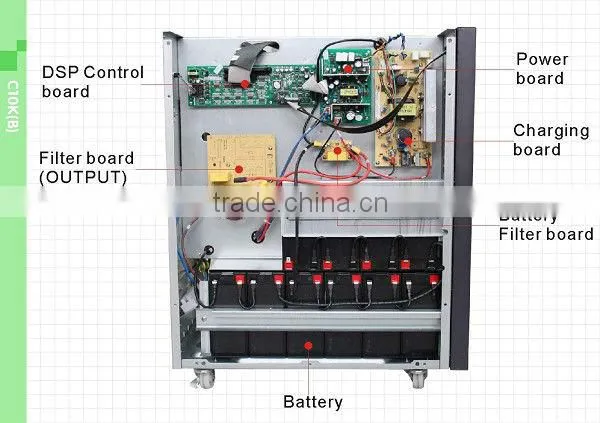

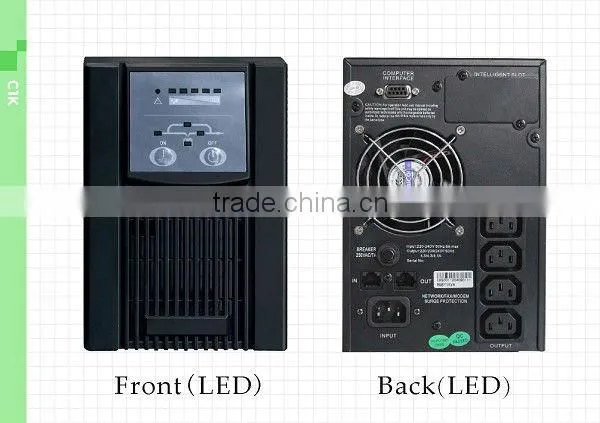

Pictures

240v Single phase online ups 10000va for home application240v Single phase online ups 10000va for home application240v Single phase online ups 10000va for home application240v Single phase online ups 10000va for home application240v Single phase online ups 10000va for home application240v Single phase online ups 10000va for home application











Description



Output C1KVA/C1KS C2KVA/C2KS C3KVA/C3KS
Rated Power 1000VA/700W 2000VA/1400W 3000VA/2100W
Output Voltage 208VAC/220VAC/230VAC/240VAC
Voltage Waveform Pure Sine wave
Crest Factor 3:1
Output Frequency
(Synchronized- Mains) 		46~54Hz or 56Hz - 64Hz (Line mode)
50/60HZ/ ±0.05Hz( Battery mode)
Regulation(Nominal) ±1%
Regulation (Battery mode) ±1%
Transfer time 0 ms; less than 4 ms from inverter to bypass and vice versa
Over current protection Line Mode:10min@100%~130%;
Battery Mode:30s@100%~130%
Outlet IEC*4/IEC*6/IEC*4+Terminal
Harmonic Distortion ≤2%THD(Linear Load); ≤5%THD(Non-Linear Load)

2.Input

Input C1KVA/C1KS C2KVA/C2KS C3KVA/C3KS
Nominal Voltage 160~300VAC@full load (110~300VAC@half load)
Input Frequency 46~54Hz / 56~60Hz
Efficiency 87% (AC mode)/83%(Battery Type)
Noise Filtering Full time EMI/RFI filtering
Over current protection by AC fuse or by re-settable over current   protector

AVR Range

(2 Bucks,2 Boosts)

Enhanced Buck: +15% of selected nominal voltage
Buck mode: +5% of selected nominal voltage
Boost mode: -5% of selected nominal voltage
Enhanced Boost: -12.5% of selected nominal voltage
Phase Single phase with ground

3.Battery

Battery type Sealed lead acid Battery
Rated Charging Voltage 41.0Vdc / 81.9Vdc / 109.2Vdc
Typical backup time more than 5 min
Charging method Smart pulse charging with two charging modes.
Quick charging when battery is not fully charged,
trickle charging when battery is 90% fully charged.
Charging current(MAX) 1.0A(C1KS-C3KS:4.0/8.0A)
Protection Over current protection & Over charging voltage protection (SCR control)
Thermal protection (CPU control)
When temperature inside UPS is over 45°C,
charger will stop charging for 2.5 minutes followed by an 1.5 minutes charging.
The cycle will be repeated until the temperature is lower than 44°C.
TemperatureCompension Yes
Numbers of Batteries 3 8 8

4.Optional Features

ECO Mode Support
CVCF Support
PDU Support
Remote Panel Wired Type,Up to 100M Length
Parallel Redundancy Up to 4 Units maxium(Option)

5.Environmental and Safety

Operating Temperature  0°C to 40°C (32°F to 104°F)
Transit/storage
Temperature 		-15°C to 55°C (5°F to 131°F)
Relative Humidity 20-90%(NON-CONDENSING)
Operating Altitude 0 ~ 3000 meters
Audible noise less than 50 dBA
Safety Markings BSMI CE
EMC Class B, EN50091-2, FCC part15, IEC1000-2-2
Quality control system ISO 9001:2000
Noise Level less than 55db@1 Meter
LED Version Load Level/Battery Level/Battery;Mode/AC Mode/Bypass Mode/Fault
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload  Sounding twice every  second
Fault Continously Sounding
LCD Version Load/Battery/Input/Output/Operating;Mode Information

6.Indicator Interface

Smart RS-232 Software supports Windows Family.
Sun Solaris,IBM Aix,Compaq True64,
SGIIRIX ,FreeBSD.HP-UX,and MAC
USB (Option) Windows Family& MAC
Internal Slot(Option) SNMP/AS400 Relay Card/Rs485
EPO(Option) Support Emergency Shutdown

7.Physical

Dimensions:
(D×H×W)mm		 400*145*220 460*192*348 460*192*348
N.W/G.W(kg) 1KVA:14 / 1KS:7 2KVA:34 / 2KS:13.5 3KVA:35 / 3KS:14
Packing PBP standard Packing,Export carton for each unit



 Typical Application



Server, Data center, Critical network devices, Sensitive electronic equipment, Telecom
