48v to 220v 8000 Watt Off Grid Solar Hybrid Inverter With Charger
US$ 1 - 1,200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
PV3500 series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
48v 230v 8000W Solar Inverter Home Power System With MPPT Charger and AC ChargerUS$ 1 - 1,200MOQ: 1 Piece -
48v 4KVA 5KVA Off Grid Solar Charge Controller Inverter to Connect 3000W PV PanelUS$ 1 - 430MOQ: 1 Piece
-
Off Grid Pure Sine Wave 3200W Solar Panel Connecting 48V 6kw Solar Inverter PriceUS$ 1 - 1,200MOQ: 1 Piece
-
48V 230V Off Grid Pure Sine Wave Home Power Supply Solar Inverter Controller 5kvaUS$ 1 - 430MOQ: 1 Piece
-
Pure Sine Wave 24Vdc Hybrid Solar Inverter Off-grid 5kw Home Solar SystemUS$ 1 - 1,200MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
PV3500 series
Output Power
1 - 200KW
Output Type
Single
Size
414*645*211mm
Weight
90KG
Input Voltage
48vdc
Output Voltage
220v/230v
Type
DC/AC Inverters
Output Frequency
50Hz/60Hz
Output Current
34.7A
PV3500 5KW-12KW

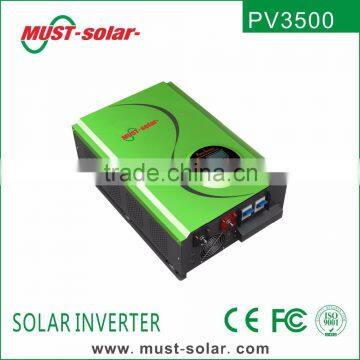

48v to 220v 8000 watt Off Grid Solar Hybrid Inverter with Charger
New Design for Panel:
What are Features of Inverter ?
| 1. 8000W Low Frequency Solar Inverter, DC to AC Power | 4. AC Output Volt: 230Vac 50Hz/60Hz, Pure Sine Wave | 7. Battery Priority Function |
| 2. 48V Dc Batt Volt System | 5. By-Pass Input:AC Grid, Generator-auto sending Signal to Start | 8. DC start & Auto Self-Diagnostic Function |
| 3. 60A / 120A Optional MPPT Solar Charge Controller | 6. 24KVA Max Power Surge Rating, 20ms | 9. Inbuilt Pure Copper Transformer |
| 10. With RS232 & Remote Control Port | 11. With Battery Cable | 12. Wooden Case Package |

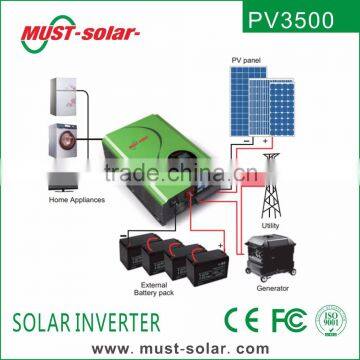

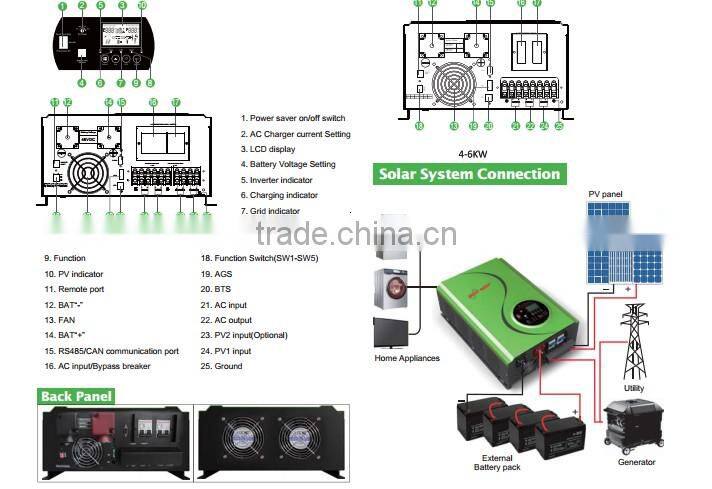

LCD Display & Inverter System Connection Diagram
Specification
Technical Specifications
| MODEL | PV35-5K | PV35-6K | PV35-7500 | PV35-10K | PV35-12.5K | PV35-15K | ||||
| Default Battery System Voltage | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC | |
| INVERTER OUTPUT | Continuous output power | 5KVA/4.0KW | 6KVA/4.8KW | 7.5KVA/6.0KW | 10KVA/8.0KW | 12.5KVA/10.0KW | 15KVA/12.0KW | |||
| Surge rating (20ms) | 12.0KW | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW | ||||
|
Capable Of Starting Electric Motor |
2HP | 3HP | 3HP | 4HP | 5HP | 6HP | ||||
| Output waveform | Pure sine wave/ same as input (bypass mode) | |||||||||
| Inverter Efficiency(Peak) | >88% | |||||||||
| Line mode efficiency | >95% | |||||||||
| Power factor | 1 | |||||||||
| Nominal output voltage RMS | 220V/230V/240VAC(+/-10% RMS) | |||||||||
| Output frequency | 5OHz/60Hz +/-0.3 Hz | |||||||||
| Short circuit protection | Yes (1sec after fault) | |||||||||
| Typical transfer time | 10ms(max) 10ms(max) | |||||||||
| AC INPUT | Voltage | 230VAC | ||||||||
| Selectable Voltage Range | 155~280VAC(For Personal Computers) | |||||||||
| Frequency Range | 50HZ/60HZ (Auto sensing) 40~80Hz | |||||||||
| BATTERY | Minimum start voltage | 40.OVDC/42.0VDC for 48VDC mode | ||||||||
| Low battery alarm | 42.OVDC+/-0.6V for 48VDC mode | |||||||||
| Low battery Cutoff | 40.OVDC+/-0.6V for 48VDC mode | |||||||||
| Idle consumption-search mode | <25W when power saver on | |||||||||
| CHARGER | Output voltage | Depends on battery type | ||||||||
| Charger AC input breaker rating | 30A | 30A | 30A | 40A | 50A | 63A | ||||
| Max charge power rate | 1/3 Rating power | |||||||||
| Overcharge protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |||||||||
| Maximum Charge Current | 65A | 35A | 65A | 40A | 65A | 50A | 70A | 80A | 100A | |
| BTS | Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||||||||
| BYPASS & PROTECTION | Input voltage waveform | Sine wave (grid or generator) | ||||||||
| Nominal voltage | 220V/230V/240VAC | |||||||||
| Max input AC voltage | 300VAC for 230VAC HV mode | |||||||||
| Nominal input frequency | 50Hz or 60Hz | |||||||||
| Overload protection (SMPS load) | Circuit breaker | |||||||||
| Output short circuit protection | Circuit breaker | |||||||||
| Bypass breaker rating | 40A | 40A | 40A | 50A | 63A | 63A | ||||
| Max bypass current | 40Amp | 80Amp | ||||||||
| Rated voltage | 24VDC/48VDC | |||||||||
| PV open circuit voltage | Operational max = 145VDC temperature corrected VOC | |||||||||
| SOLAR CHARGER | Maximum PV Charge Current | 60A | 60A(120A Optional) | |||||||
| DC Voltage | 24V/48V atuo work | 48V | ||||||||
| Maximum PV Array Power | 1600W | 3200W | 1600W | 3200W | 1600W | 3200W | 3200W(6400W for 120A Optional) | |||
|
MPPT Range @ Operating Voltage |
32-145VDC for 24V mode,64-145V for 48V mode | 64~145VDC | ||||||||
| Maximum PV Array Open Circuit Voltage | 147VDC | 147VDC | ||||||||
| Maximum Efficiency | >98% | |||||||||
| Standby Power Consumption | <2W | |||||||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | ||||||||
| Inverter dimensions (W*H*D) | 587*414*211mm | 587*414*211mm | ||||||||
| Inverter weight (solar chg) KG | 38+2.5 | 48+2.5 | 49+2.5 | 60+2.5 | 66+2.5 | 70+2.5 | ||||
| OTHER | Operation Temperature Range | 0°C to 40°C | ||||||||
| Storage Temperature | -15°C to 60°C | |||||||||
| Audible Noise | 60dB MAX | |||||||||
| Display | LED+LCD | |||||||||
| Standard warranty | 1 year | |||||||||
Packaging & Shipping
Product Package by Carton Box & Wooden Case to Protect in Transportation if Required.
OEM Package Design is Welcomed.
Shipment Available by Courier, such DHL, UPS, TNT; By Air-way or By Sea.
What Kinds of Services You Can Get From Must Powre Limited?
| Off-Line and On-line Consulting Service | Answer Questions Any Time, on-line 24 HOURS |
| After-Sale Service | 1-Year Warranty, 1%-3% Free Spare Parts Offered |
| Technical Support & Consultancy | Offered Free |
| Shipping Services | Must Power can do shipment for you |
| OEM & ODM Design | Welcomed |
| System Solutions & Problem Sulotions | Yes, we gladly offer good solution to our Customers |
| Accessories or Parts for Repairing | Glad to supplies related Parts to our Customers,if necessary |
