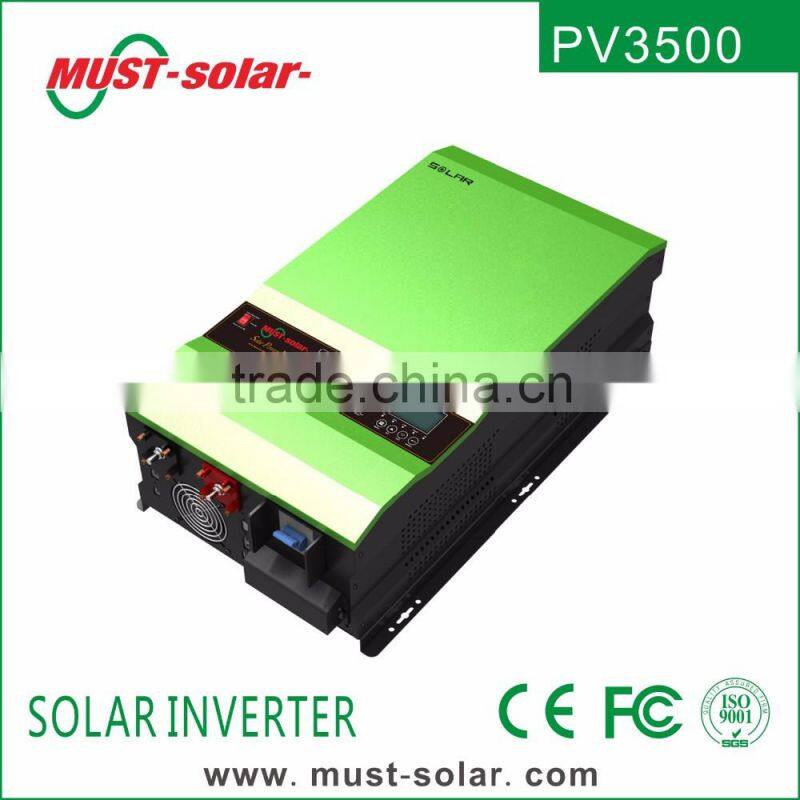

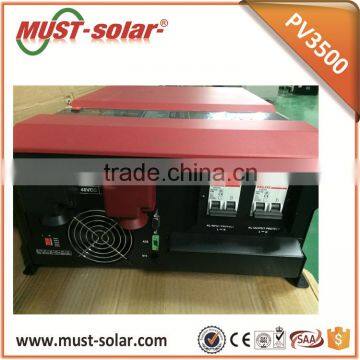

Pure Sine Wave 3200W Solar Panel Connecting 48V 6kw Solar Inverter Price
What are Features ?
| 1. 6000W Low Frequency Solar Inverter, DC to AC Power | 4. AC Output Volt: 230Vac 50Hz/60Hz, Pure Sine Wave | 7. Battery Priority Function |
| 2. 48V Dc Batt Volt System | 5. By-Pass Input: AC Grid, Generator-auto sending Signal to Start | 8. DC start & Auto Self-Diagnostic Function |
| 3. 60A MPPT Solar Charge Controller | 6. 18KVA Max Power Surge Rating, 20ms | 9. Inbuilt Pure Copper Transformer |
| 10. With RS232 & Remote Control Port | 11. With Battery Cable | 12. Wooden Case Package |

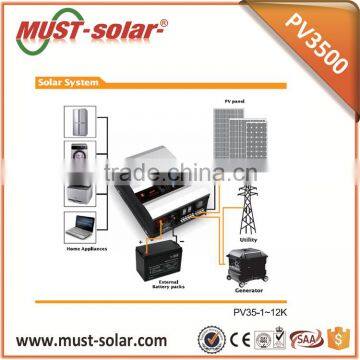

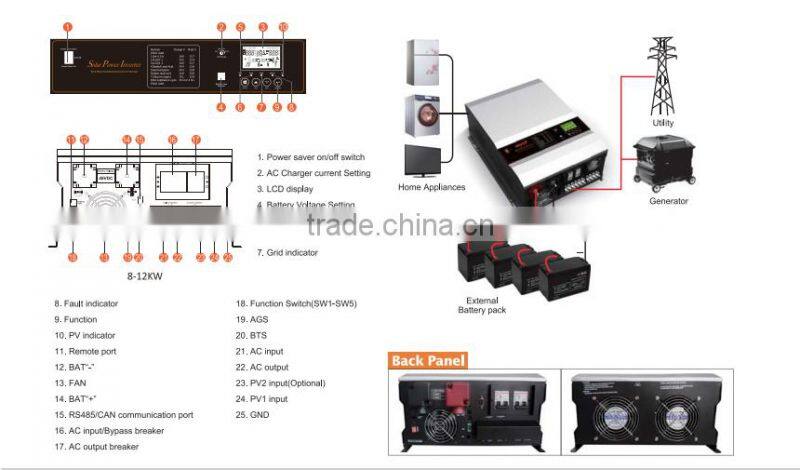

LCD Display & Inverter System Connection Diagram

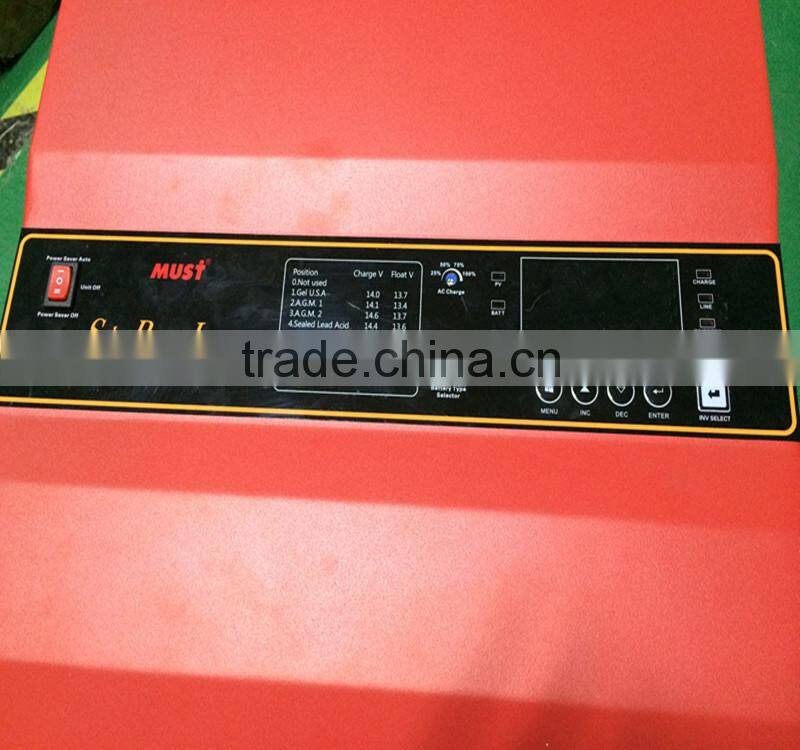

Pict : Surface of Solar Power Inverter,Including Solar Charge Indicator (LED), LCD Display
| MODEL | PV35-5K | PV35-6K | PV35-7500 | PV35-10K | PV35-12.5K | PV35-15K | ||||
| Default Battery System Voltage | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC | |
| INVERTER OUTPUT | Continuous output power | 5KVA/4.0KW | 6KVA/4.8KW | 7.5KVA/6.0KW | 10KVA/8.0KW | 12.5KVA/10.0KW | 15KVA/12.0KW | |||
| Surge rating (20ms) | 12.0KW | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW | ||||
|
Capable Of Starting Electric Motor |
2HP | 3HP | 3HP | 4HP | 5HP | 6HP | ||||
| Output waveform | Pure sine wave/ same as input (bypass mode) | |||||||||
| Inverter Efficiency(Peak) | >88% | |||||||||
| Line mode efficiency | >95% | |||||||||
| Power factor | 1 | |||||||||
| Nominal output voltage RMS | 220V/230V/240VAC(+/-10% RMS) | |||||||||
| Output frequency | 5OHz/60Hz +/-0.3 Hz | |||||||||
| Short circuit protection | Yes (1sec after fault) | |||||||||
| Typical transfer time | 10ms(max) 10ms(max) | |||||||||
| AC INPUT | Voltage | 230VAC | ||||||||
| Selectable Voltage Range | 155~280VAC(For Personal Computers) | |||||||||
| Frequency Range | 50HZ/60HZ (Auto sensing) 40~80Hz | |||||||||
| BATTERY | Minimum start voltage | 20.OVDC/21.0VDC for24VDC mode (40.OVDC/42.0VDC for 48VDC mode) | ||||||||
| Low battery alarm | 21.0VDC+/-0.3V for 24VDC mode (42.OVDC+/-0.6V for 48VDC mode) | |||||||||
| Low battery Cutoff | 20.0VDC+/-0.3V for 24VDC mode (40.OVDC+/-0.6V for 48VDC mode) | |||||||||
| Idle consumption-search mode | <25W when power saver on | |||||||||
| CHARGER | Output voltage | Depends on battery type | ||||||||
| Charger AC input breaker rating | 30A | 30A | 30A | 40A | 50A | 63A | ||||
| Max charge power rate | 1/3 Rating power | |||||||||
| Overcharge protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |||||||||
| Maximum Charge Current | 65A | 35A | 65A | 40A | 65A | 50A | 70A | 80A | 100A | |
| BTS | Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||||||||
| SOLAR CHARGER | Maximum PV Charge Current | 60A | 60A(120A Optional) | |||||||
| DC Voltage | 24V/48V atuo work | 48V | ||||||||
| Maximum PV Array Power | 1600W | 3200W | 1600W | 3200W | 1600W | 3200W | 3200W(6400W for 120A Optional) | |||
|
MPPT Range @ Operating Voltage |
32-145VDC for 24V mode,64-145V for 48V mode | 64~145VDC | ||||||||
| Maximum PV Array Open Circuit Voltage | 147VDC | 147VDC | ||||||||
| Maximum Efficiency | >98% | |||||||||
| Standby Power Consumption | <2W | |||||||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | ||||||||
| Inverter dimensions (W*H*D) | 587*414*211mm | 587*414*211mm | ||||||||
| Inverter weight (solar chg) KG | 38+2.5 | 48+2.5 | 49+2.5 | 60+2.5 | 66+2.5 | 70+2.5 | ||||
| Shipping dimensions(W*H*D) | 650*520*310mm | 771*505*330mm | ||||||||
| Shipping weight (solar chg) KG | 40+2.5 | 50+2.5 | 51+2.5 | 62+2.5 | 68+2.5 | 72+2.5 | ||||
| OTHER | Operation Temperature Range | 0°C to 40°C | ||||||||
| Storage Temperature | -15°C to 60°C | |||||||||
| Audible Noise | 60dB MAX | |||||||||
| Display | LED+LCD | |||||||||
| Standard warranty | 1 year | |||||||||
MUST Package & Shipping

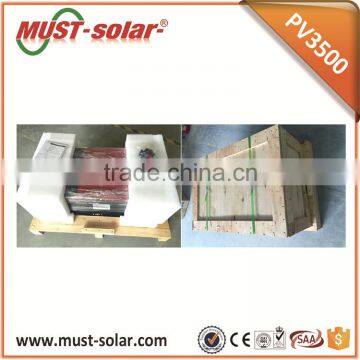

1. Product Package by Carton Box & Wooden Case to Protect in Transportation if Required.
2. OEM Package Design is Welcomed.
3. Shipment Available by Courier, such DHL, UPS, TNT or By Air-way from Shenzhen Air-port or Hong Kong;
By Sea from Shenzhen or Guangzhou Sea Port
MUST Company Information
1. MUST Minestone
2. MUST Market Places Worldwide

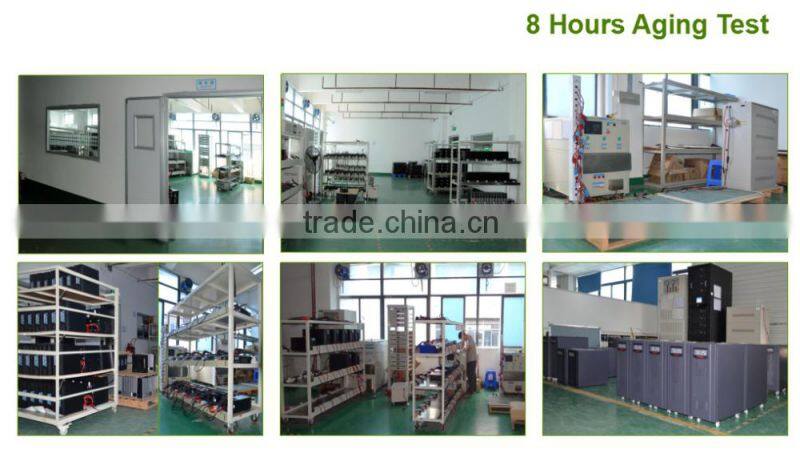

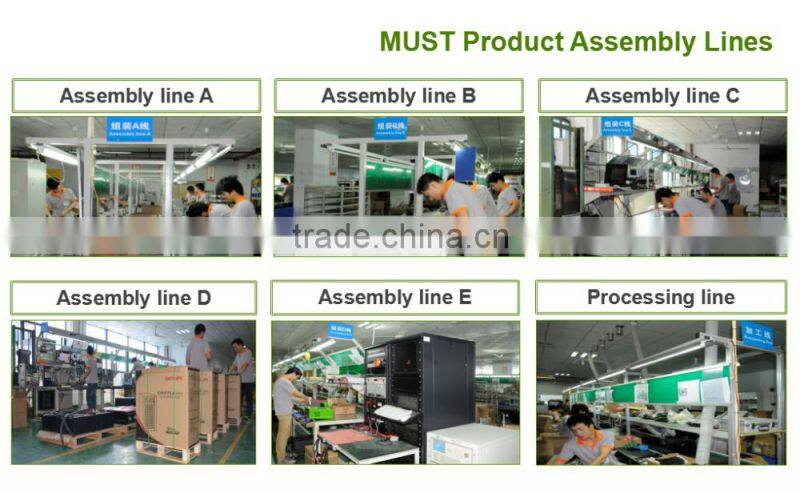

3. MUST Factory Pictures

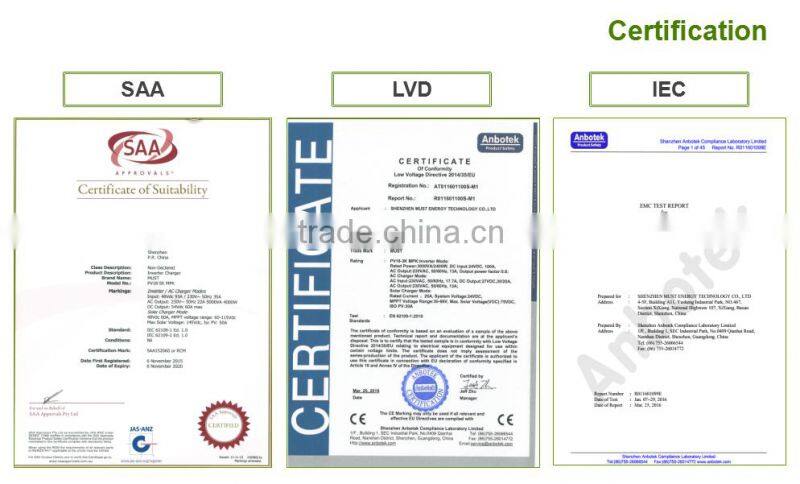

4. MUST Certification
5. MUST International Exhibitions
6. MUST Sales Teams
MUST Services
| Off-Line and On-line Consulting Service | Answer Questions Any Time, on-line 24 HOURS |
| After-Sale Service | 1-Year Warranty, 1%-3% Free Spare Parts Offered |
| Technical Support & Consultancy | Offered & Free |
| Shipping Services | Must can do shipment for you |
| OEM & ODM Design | Available and Capable to do by MUST |
| System Solutions & Problem Sulotions | Yes, we gladly offer good solution to our Customers |
| Accessories or Parts for Repairing | Glad to supplies related Parts to our Customers,if necessary |
MUST Payment Term & Delivery
| TradeTerms | EXW, FOB, CNF(CFR), CIF | ||
| PaymentTerms | T/T | T/T 30% in advance before production, the balance 70% before shipment | |
L/C(30% as depsit, the balance by L/C) |
L/C amount below US$70,000.00 ,We need charge US $500.00 for LC fee. | ||
| L/C amount above US$100,000.00,L/C at Sign | |||
| Trade Assurance | Amount over 1000USD. | ||
| Western Union | Under 5000 USD | ||
| Delivery Time | 7 days for sample order (2pcs), within 25 working days for bulk order | ||
For Any Further Questions?
1. Do YOU Want to Enjoy MUST Excellent Service?
- Come & Send US An Inquiry at Bottom.
2. Do YOU Doubt About MUST Company?
- Come & Send US An Inquiry at Bottom, or Send US Email as Below Card
3. Do YOU Want to Know More About MUST Other New Products?
- Come & Click Below Products and Send US An Inquiry.

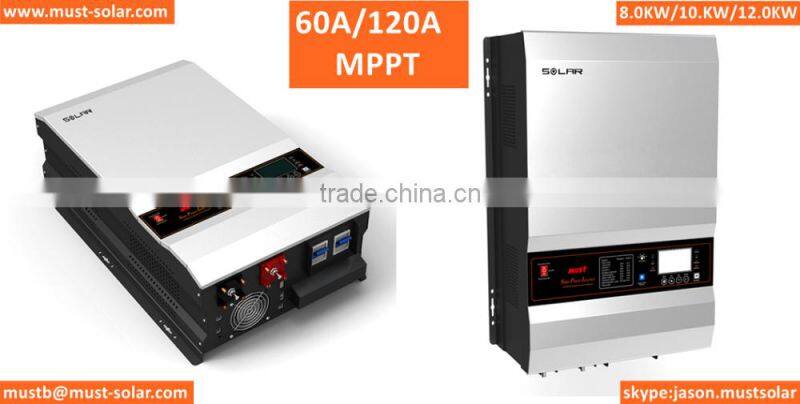

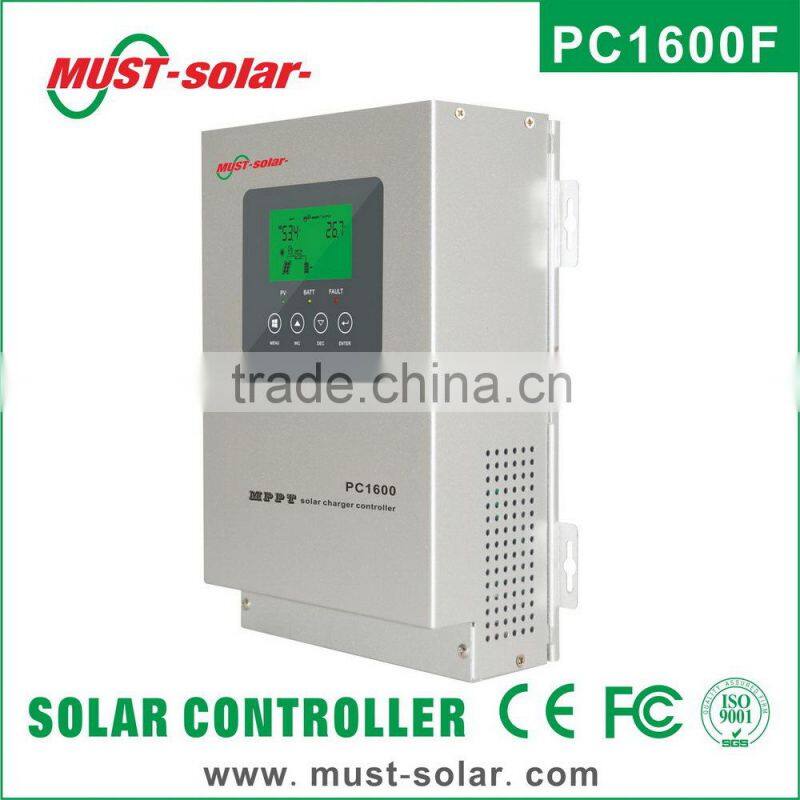

-PV3500 Series 4KW-12KW Solar Inverter -PC1600 Series MPPT Solar Charger 45A/60A
