BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3)

BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3) thumbnail-1
BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3) thumbnail-2
BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3) thumbnail-3
BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3) thumbnail-4
BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3) thumbnail-5
BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3) photo-1
BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3) photo-2
BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3) photo-3
BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3) photo-4
BOTTLE WATER TANKS //PLASTIC TANKS BLOW MOLDING MACHINE(YK1000L-3) photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Qingdao Yankang Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Shandong, China
Brand Name YK
Model Number YK1000L-3
Voltage 380V
Power(W) 325KW
Dimension(L*W*H) 9*4.5*5.2M
Weight 30TON
Certification SGS
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

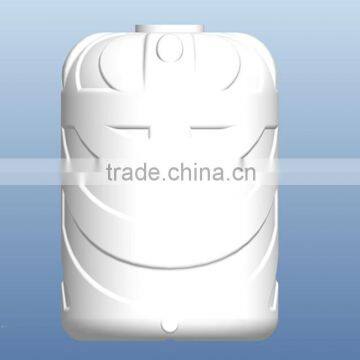

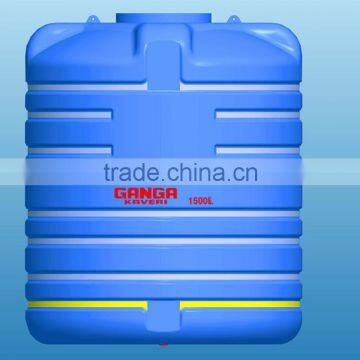

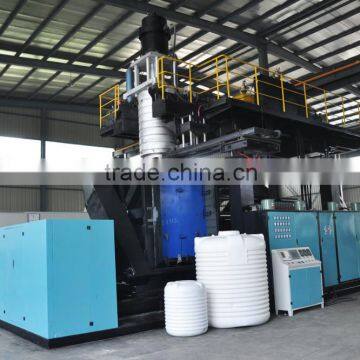

1000L three layer Blow Molding Machine.Can produce 200-1000L water tanks.

1.Adopt Siemens PLC,Siemens Touch Screen and MOOG to make the operation easy.
2.Adopt progressive hydraulic system by ourselves,easy to control.
3.Adopt inverter to control the clamping system,saving a lot of energy.
4.The technology of DIe Head is the same with Germany.
5.Configuration:

PARISION CONTROL THINCKNESS CONTROL MOOG JAPAN
PLC SEIMENS GERMANY
TEMPERATURE CONTROL MODULE SEIMENS GERMANY
SERVO VALVE & SERVO TRANSDUCER MIRAN ITALY
INVERTER SEIMENS GERMANY
HYDRAULIC OIL SEAL DZ TAIWAN
INTERMEDIATE RELAY OMRON JAPAN
PNEUMATIC VALVE AIRTECH TAIWAN
HYDRAULIC PUMP & VALVE YUKEN JAPAN
PNEUMATIC SWITCH & CONTACTOR SEIMENS GERMANY
HYDRAULIC MOTOR & SCREW MOTOR SEIMENS GERMANY
REDUCER GUOMAO CHINA

6.Specification

No   specifications 1000 Liter
    Model No. 3 layers
    Processing material HDPE/HMWHDPE
1 Extruders Gear Box Type Hard surface
Extruder Drive Motor (Inner) 55KW
Extruder Drive Motor (Middle) 55KW
Extruder Drive Motor (Outer ) 55KW
Heating Load 50KW
Max Screw Speed 60RPM
2 Accumulator Die Head Heating Load 70kw
Parison Control Cylinder 420X40mm
Die-Core size [ Min / Max] 420-500MM
Inverter Siemens
Max. parison weight 33KG
3 Moulding Clamping Unit CLAMPING PLATEN  Size 1600X1500mm
MAX MOLD SIZE 1400X 1600mm
Mould Clamping Force 800KN
Mould Thickness 950-1350
Clamping Pull Bar 120mm
4 Stretching and Blowing Unit Spreading stroke 400-800mm
Vertical stroke max. 300mm
5 Electrical Control Panel Thickness controller 100 points Moog
Main Operation Panel Siemens
Die Head Control Temperature Control Siemens
6 Hydraulic System Hydraulic Drive Motor (Parison Control) 7.5kw
Oil Tank Capacity 1000L
7 Gripper  Gripped stroke 350mm
Discharge Stroke 2000mm
8 Hopper Loader Loader 800kg/H 3pcs
Hopper 50kg 3pcs
9 Production rate Productivity 12PCS/H
of 1000 ltr. Product Weight 18kg
10 Delivery period   4 months
11 Weight of Machine   30Ton
12 Size of Machine [L xW xH ]  (M) 9mx4.5mx5.2m
13 Total power   340KW
14 Average power Comsumption   95KW


DELIVERY TIME
4 months after the down payment;
TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory. After one week,if the Buyer still needs the training,$100 should be paid for the engineer.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.And the Buyer should also pay for the air ticket for the engineer.
GUARANTEE
The guarantee time is one year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
