TV-620HC

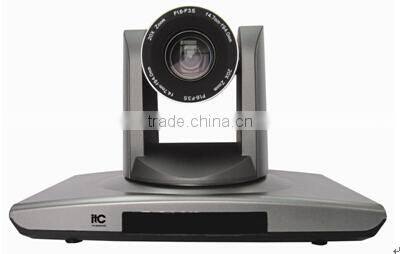

HD 1080P motion sensor video conference camera
(18-20X, 1080P Full HD , high-performance , wide visual angle , high magnification )
(Support 1080P60/50/30/25, 1080I60/50, 720P60/50, SDI up to 1080P30)
Features
* True HD images: high-quality HD CMOS sensor, to fulfill ultra-high resolution of 1920x1080 high-quality images; with 1/2.8 inch, 500-megapixel, high -quality HDCMOS sensors of 2.1 million effective pixel, to fulfill ultra-high resolution 1920x1080 high quality images. The output frame rate up to 60/50 frames/sec, to meet the needs of image of excellent fluence and high-definition
* 18-20 optical zoom: fast, accurate and stable auto focus lens, can be up to 18x optical zoom
* Low Noise High SNR: SNR from the camera directly affects the compression coding efficiency of HD video conference image
* wide range, high speed, low noise pan/tilt operation: the new stepper motor driver, very quiet and smooth running, enable to move quickly to a designated location , and a wide range of shooting
* Full HD multi-format video output: support 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 720P30 multiple HD video formats, simultaneously output multiple analog and digital HD video signal in the DVI-I, HDMI, HD-SDI interfaces at the same time
* High-quality image transmission through HD multimedia interface: providing DVI-I digital HD multimedia interface, compatible with both analog and digital HD video outputs, can be connected to HD display devices by cable directly
* RS-232C Remote Control (VISCA protocol ): with RS-232C (VISCA protocol) interface, to high speed communication remote control for all camera settings and pan/tilt/zoom operations
* Position Preset: can pre-set multiple locations, including pan, tilt, zoom, even when the camera shut -down, the preset data can be saved automatically
* Support Camera Flip: support camera flip in structure, set the image horizontal and flip through serial commands, can save automatically when shut -down
* Equipped with remote control: convenient operation, not only can remote control the basic settings, pan, tilt, zoom operation, but also manually set the parameters of the camera
* OSD Menu: the user can adjust the camera exposure parameters via the OSD menu, switch the video format, to view the current status
Input/Output Interface
* HD Interface: DVI-I HD Multimedia Interface signals
* HD Interface: HD-SDI
* Control signal interface: 8-pin mini DIN
* Power Interface: HEC3800 power socket
Electrical characteristics
* Power adapter: AC 110V-AC 220V - DC 12V/2.5A
* Input vlotage: DC 12V(DC 11.5-DC 12.5V)
* Power Consumption: 18w(max)
Physical Characteristics
* DimensionWidth/Height/Depth: 265x144x171(mm)
* Weight: about 1.9kg
* Storage temp: -10°C- +60°C
* Work temp: 0°C- +45°C
