HD Communication Multi-point Control Unit 1080p Video Conference System

HD Communication Multi-point Control Unit 1080p video conference system

* HD: 1080P/60

* Low latency: Less than 200ms

* Low bandwidth: Ultra-low bandwidth, 1M for 1080P HD Conference

* limited capacity: one machine 16 users, can be seamlessly upgraded to 120 users

Communication Protocol

* Multimedia Framework Agreement ITU-T H.323, IETF SIP

Video Features

* Support: H.264 (highest: High profile)

* Video Resolution Rate: QCIF, CIF, 4CIF, 480P, D1, 720P, 1080P24, 1080P25, 1080P30,

1080P50, 1080P60

* Support: mixed -speed, mixed video formats, mixed protocol conference

* Static Graphic: XGA, HD720P, 640 x 480, 1280 x 1024, 1080P (1-60 frames), English subtitles

* Supports H.239 dual stream digital technology, primary and secondary streams can reach

   resolution 1080P60

* Bandwidth: 1Mbps for 1080p video conference available

Audio Features

* Audio codec: G.711A/U, G.722, G.7221, G.722.1.C, G.723, iLBC, AAC, and so on.

* Lip Sync

* Multi-channel mixer

* Echo Cancellation

* Automatic Gain

* Noise cancellation

Network Features

* With dual 100M/1000M network interface

* Line can be adapted to DDN, ISDN, ATM, SDH, VPN, dedicated satellite, ADSL, etc

* Span the router and firewall to ensure system security, support dual-network interface

* Supports H.264 SVC, anti network error code, no interruption to the meeting within a 5%

   packet loss

* Voice is with priority, support Qos strategy

* Support H235 signaling encryption, AES media stream encryption

* Conference access password

* Conference control password

* Administrator password

Conference Features

* Support multi-screen, multi-screen layouts, up to 16pictures per screen

* Supports split screen automatically

* Director conference mode

* Chairman conference mode

* MCU convene mode

* Meeting room mode

* Broadcast mode

* Free mode

* Supports voice activation function

* Support breakpoint re-invitation function

* Support remote control HD camera, backlight settings

Maintenance Management

* WEB management operation in English & Chinese version

* Device management

* User management

* Conference management

* Supports Telnet, ssh remote maintenance

* Zone management according to user and region characteristics

* Support large-scale terminal membership and management

* Software upgrade: local & remote upgrade

* IP network diagnosis: PING, packet loss, delay, jitter detection

* Status indication of network packet loss

* Supports event logging

* Support configuration import and export

* Restore factory settings

Maintenance Management

* Dimensions ( LxWxH ): 675mm x 430mm x 88mm

* Weight: 25Kg

* Electrical specification

* Operating voltage: 100VAC ~ 240VAC

* Operating frequency: 50Hz ~ 60Hz

* Maximum power consumption: less than 500W

* Environment Temperature: 10℃~ 35℃(working condition) -40℃~ 55℃(non- operating)

* Relative Humidity: 10% ~ 80% (working) 0% ~ 95% (non- operating)

* Ambient noise: less than 50dBA

.............................................................................................................................................................................................

Description

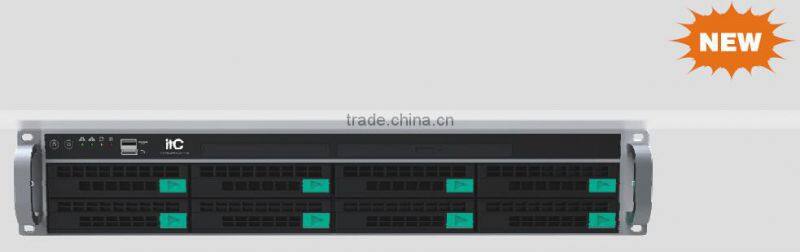

TV-60MCU-16 is a high performance and large capacity multi-point control

unit. It supports standard H.323 protocol, H.264 (high profile) codec and H.239 dual stream,

and extensive network communication protocols. It is with full HD 1080P/60 terminal and

media processing.
