HD auto tracking audio video conference camera with USB

1. Cloud based architecture

Adopt cloud based architecture, with distributed MCU

2. First class picture quality

With high 1080p quality, the highest video technology, rich in detail, makes you feel in the picture

3.Save much bandwidth

Home ADSL can run HD video conference system,

only 2M to run 1080p/60,

       1M to run 1080p/30,

       512k to run 720p,

       64k make the continuous picture and sound

4. With Strong network self-adaption ability

Adopt H.264SVC technology to adapt to high-lass network, available for interest network.

5. Easy operation, one key into conference

The branch venues can be one key enter co conference from the terminal, no need professional operators

6. Flexible expansion function

According to customer's applicatin needs to provide electronic white board, document sharing and remark, collaborative browsing, remote voting, video file sharing, etc

System connection

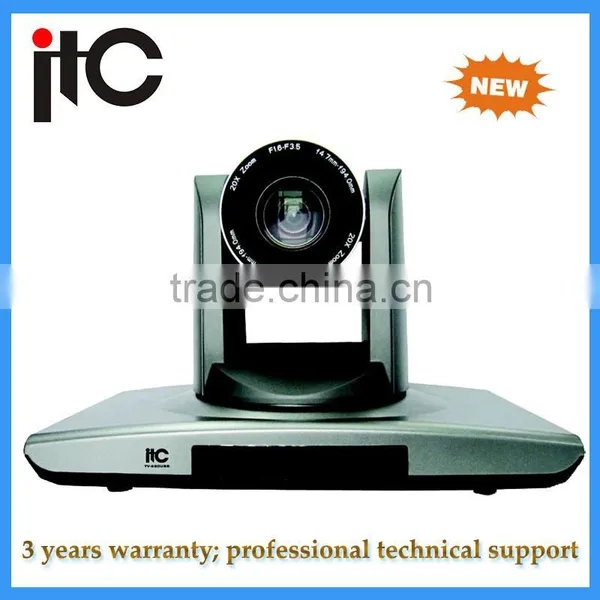

TV-620USB HD auto tracking audio video conference camera with USB

Effective pixels high quality hdcmos sensor, up to 1080p60 / 50 the output of high-quality high-resolution images. Ensuring a high-definition, while focusing on meeting the needs of the screen fluency

* Magnification optical zoom: fast, accurate and stable auto focus lens, 18x optical zoom can be achieved

* Ultra-wide viewing angle: up to a maximum angle of 55 °

* Low noise high snr: snr directly affect camera video to hd video conferencing terminal image compression coding efficiency

* Wide range, high speed, low noise pan / tilt operation: ± 170 degree horizontal rotation, pitching rotation -30 degrees to + 90 degrees, the new stepper motor drive, running very quiet and smooth, Able to move quickly to the designated position, and a wide range of shooting

* Full hd multi-format video output: support 1080p60 / 50,1080p30 / 25,720p60 / 50,720p30 multiple hd video formats, and on the dvi-i, hdmi, usb3.0 interfaces simultaneously output multiple analog and digital hd video signal

* Through high-definition multimedia interface for high-quality image transmission: dvi-i that provide digital high-definition multimedia interface, compatible with both analog and digital high-definition video output, you can use the cable to connect directly to high-definition display devices

* Rs-232c remote control (visca protocol): using the rs-232c (visca protocol) interface, all settings on the camera and pan / tilt / zoom operation for remote control of high-speed communication

* Position presets: 128 can be pre-set positions, including pan, tilt, zoom preset, even when the camera shut power down, the preset data can be saved

* Support camera flip: flip camera support structure, and set the image horizontally through the serial commands, image flip command has brown-save feature

* Equipped with remote control: equipped with easy-to-remote control, in addition to the basic settings, as well as pan, tilt, zoom control, etc., you can also set the parameters of the camera by remote sontrol manual

* Osd menu: osd menu, the user can adjust the camera exposure parameters via the osd menu, switch the video format, to view the current status

Input/Output

* HD Interface: DVI-I interface definition multimedia signals

* HD Interface: USB3.0

* Control signal interface: 8-pin mini DIN

* Power Interface: HEC3800 outlet

Electrical Characteristics

* Power Adapter: AC110V-AC220V turn DC12V / 2.5A

* Input voltage: DC12V (DC11.5-DC12.5V)

* Maximum power consumption: 18W

Physical Characteristics

* Dimensions (W * L * D): 265x144x171 (mm)

* Weight (approx): 1.9Kg

* Storage temperature: -10 ℃ to + 60 ℃

* Operating temperature: 0 ℃ to + 45 ℃
