1. Cloud based architecture
Adopt cloud based architecture, with distributed MCU
2. First class picture quality
With high 1080p quality, the highest video technology, rich in detail, makes you feel in the picture
3.Save much bandwidth
Home ADSL can run HD video conference system,
only 2M to run 1080p/60,
1M to run 1080p/30,
512k to run 720p,
64k make the continuous picture and sound
4. With Strong network self-adaption ability
Adopt H.264SVC technology to adapt to high-lass network, available for interest network.
5. Easy operation, one key into conference
The branch venues can be one key enter co conference from the terminal, no need professional operators
6. Flexible expansion function
According to customer's applicatin needs to provide electronic white board, document sharing and remark, collaborative browsing, remote voting, video file sharing, etc
System connection

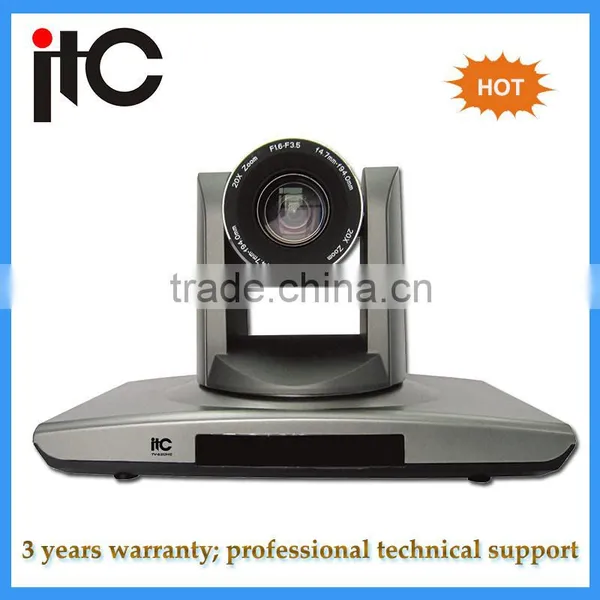

HD ptz video conference camera use for Conference system
(18-20X, 1080P Full HD , high-performance , wide visual angle , high magnification )
(Support 1080P60/50/30/25, 1080I60/50, 720P60/50, SDI up to 1080P30)
Features
* True HD images: high-quality HD CMOS sensor, to fulfill ultra-high resolution of 1920x1080 high-quality images; with 1/2.8 inch, 500-megapixel, high -quality HDCMOS sensors of 2.1 million
effective pixel, to fulfill ultra-high resolution 1920x1080 high quality images. The output frame rate up to 60/50 frames/sec, to meet the needs of image of excellent fluence and high-definition
* 18-20 optical zoom: fast, accurate and stable auto focus lens, can be up to 18x optical zoom
* Low Noise High SNR: SNR from the camera directly affects the compression coding efficiency of HD video conference image
* wide range, high speed, low noise pan/tilt operation: the new stepper motor driver, very quiet and smooth running, enable to move quickly to a designated location , and a wide range of shooting
* Full HD multi-format video output: support 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 720P30 multiple HD video formats, simultaneously output multiple analog and digital HD
video signal in the DVI-I, HDMI, HD-SDI interfaces at the same time
* High-quality image transmission through HD multimedia interface: providing DVI-I digital HD multimedia interface, compatible with both analog and digital HD video outputs, can be
connected to HD display devices by cable directly
* RS-232C Remote Control (VISCA protocol ): with RS-232C (VISCA protocol) interface, to high speed communication remote control for all camera settings and pan/tilt/zoom operations
* Position Preset: can pre-set multiple locations, including pan, tilt, zoom, even when the camera shut -down, the preset data can be saved automatically
* Support Camera Flip: support camera flip in structure, set the image horizontal and flip through serial commands, can save automatically when shut -down
* Equipped with remote control: convenient operation, not only can remote control the basic settings, pan, tilt, zoom operation, but also manually set the parameters of the camera
* OSD Menu: the user can adjust the camera exposure parameters via the OSD menu, switch the video format, to view the current status
Input/Output Interface
* HD Interface: DVI-I HD Multimedia Interface signals
* HD Interface: HD-SDI
* Control signal interface: 8-pin mini DIN
* Power Interface: HEC3800 power socket
Electrical characteristics
* Power adapter: AC 110V-AC 220V - DC 12V/2.5A
* Input vlotage: DC 12V(DC 11.5-DC 12.5V)
* Power Consumption: 18w(max)
Physical Characteristics
* DimensionWidth/Height/Depth: 265x144x171(mm)
* Weight: about 1.9kg
* Storage temp: -10°C- +60°C
* Work temp: 0°C- +45°C
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
