Must Hot selling PV18-3K Pure Sine Wave Hybrid Inverter 24v 3KVA MPPT Controller Inverter with Charger
- 10000 Set / Sets per Month
- Shenzhen/ Hong Kong
- T/T L/C D/P D/A Credit Card PayPal
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | PV1800 |
Output Power: | 1 - 200KW | Output Type: | Single | Size: | 354*272*128mm |
Weight: | 8KG | Input Voltage: | 24vdc | Output Voltage: | 220v/230v |
Type: | DC/AC Inverters | Output Frequency: | 50Hz/60Hz | Output Current: | 30A Max |
Product Description
Must Hot selling PV18-3K Pure Sine Wave Hybrid Inverter 24v 3KVA MPPT Controller Inverter with Charger
Features:
- For Home PV Energy System
- Max solar charge current is 25A
- Max AC charging current up to 20A or 30A
- Max total charging current 30A
- Inverter+ AC Charger+ Solar Charger, 3-in-1 design
- Configurable AC/Solar input priority via LCD setting
- Compatible with AC line or generator
- Auto restart while AC is recovering
- Cold start function
- AC Output Voltage: 230Vac 50Hz/60HZ
- DC 24Vdc battery voltage
- Pure sine wave AC output
- LCD Display screen
- Transformerless
- DC/AC Pure Sine Wave High Frequency Inverter
- Sealed, GEL and flooded lead-acid batteries
- Easy wiring, with battery cable
Product Picts of 3KVA MPPT Controller Inverter:

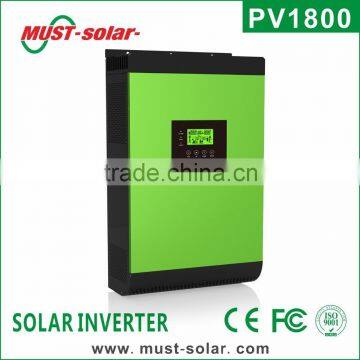

Pict 1: Complete Unit
Pict 2: output and input connectors
Pict 3: Connecting panel
Pict4 : Other surface
Technical Specifications:
Models for your Options:
MODEL | PV18-1K | PV18-2K | PV18-3K | PV18-4K | PV18-5K | |
Default Battery System Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | |
INVERTER OUTPUT | Rated Power | 1000VA/ 800W | 2000VA/ 1600W | 3000VA/ 2400W | 4000VA/ 3200W | 5000VA/ 4000W |
Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |
Waveform | Pure sine wave | |||||
AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||||
Inverter Efficiency (Peak) | 90% | 93% | ||||
Transfer Time | 10ms(For Personal Computers) 20ms(For Home Appliances) | |||||
AC INPUT | Voltage | 230VAC | ||||
Selectable Voltage Range | 170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) | |||||
Frequency Range | 50HZ/60HZ (Auto sensing) | |||||
BATTERY | Nominal voltage | 12VDC | 24VDC | 48VDC | ||
Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | |||
Overcharge Protection | 15VDC | 30VDC | 60VDC | |||
SOLAR CHARGER | Maximum PV Array Open Circuit Voltage | 30VDC | 60VDC | 105VDC | ||
Standby Power Consumption | 1W | 2W | 2W | |||
Maximum Solar Charge Current | 50A | 50A | 50A | |||
Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | |||
Maximum Charge Current | 50A | 110A | ||||
MECHANICAL SPECIFICATIONS | Dimension,WxHxD(mm) | 240×316×95 | 272×355×100 | 297.5×468×125 | ||
Net Weight(kg) | 5 | 6.4 | 6.9 | 9.8 | ||
OTHER | Humidity | 5% to 95% Relativ Humidity (Non-condensing) | ||||
Operating Temperature | 0℃-55℃ | |||||
Storage Temperature | -15℃-60℃ |
Samples and OEM, Warranty and After-Sale Service:
- Welcome Solar Power Inverter Sample Test
- OEM Welcomed
- Warranty:1 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
Shenzhen Must Power Limited
- Established in 1998, Headquarter in HongKong
- 10-year Professional Factory Manufacturer in Shenzhen, China
- Product Range: Power Inverter, Solar Inverter, MPPT Solar Charge Controller, Solar Battery, UPS
- Main Market : Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya,etc.
- Three-Floor Factory Building, 10000 Square Meters, Two Manufacturing Centers, QA Office, Aging Test Area and Two Teams of R & D.
- Certificate: ISO 9001, SGS Certificate, CE, etc
- 5-Year Alibaba Gloden Supplier
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
How to contact us?
Ms. Gloria Guan
Skype:mustups.gloria
what's app/viber:008613428783612
^_^ Any logo acceptable! To know more details about Price, Packing, Shipping and Discount, Inquiry of 3KVA MPPT Controller Inverter Now ^-^
