Must solar ISO factory hot selling mppt off grid hybrid power inverter with solar charger 1kva-5kva solar power system
What is Solar inverter?
Solar pv inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the MPPT. It can increase charge current up to 30% or more compared to traditional charge controllers.
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features of high efficiency solar inverter
. Pure sine wave inverter
. Selectable input voltage range for home appliances and personal computers
. Selectable charging current based on applications
. Configurable AC/Solar input priority via LCD setting
. Compatible to mains voltage or generator power

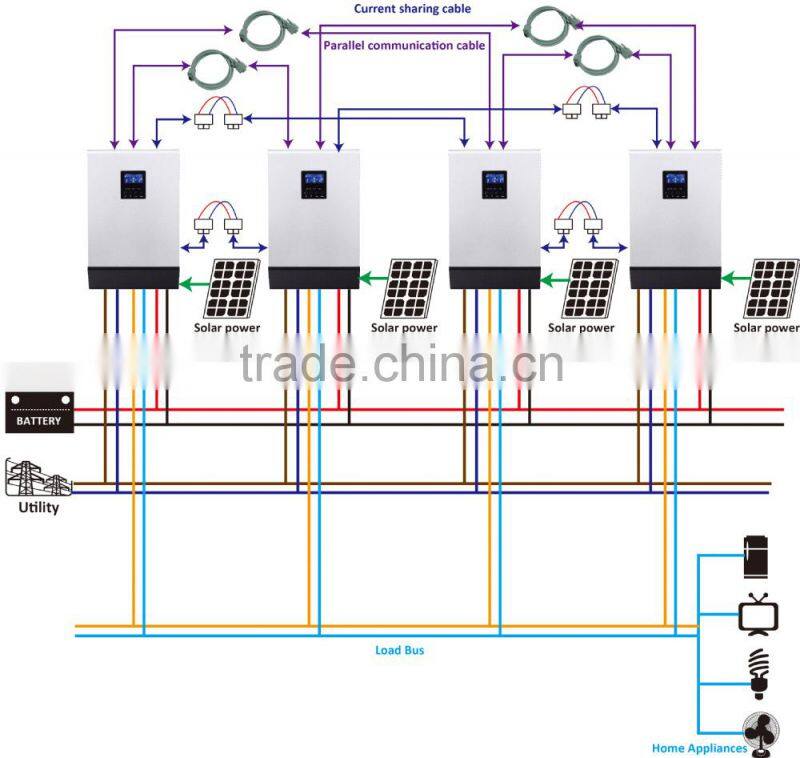

. Parallel operation with up to 6 units only available for PV1800 4KVA/5KVA
. Auto restart while AC is recovering
. Overload and short circuit protection
. Smart battery charger design for optimized battery performance
. Cold start function
What is the specification of high efficiency solar inverter ?
| RATED POWER | 1000VA / 800W | 2000VA/ 1600W | 3000VA / 2400W | 4000VA / 3200W | 5000VA / 4000W |
| INPUT | |||||
| Voltage | 230 VAC | ||||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | ||||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | ||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency (Peak) | 90% | 93% | |||
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | ||||
| Waveform | Pure sine wave | ||||
| BATTERY | |||||
| Battery Voltage | 12 VDC | 24 VDC | 48 VDC | ||
| Floating Charge Voltage | 13.5 VDC | 27 VDC | 54 VDC | ||
| Overcharge Protection | 15 VDC | 30 VDC | 60 VDC | ||
| Maximum Charge Current | 10 A or 20 A | 20 A or 30 A | 60 A | ||
| SOLAR CHARGER (OPTION) | |||||
| Charging Current | 50 A | ||||
| Maximum PV Array Open Circuit Voltage | 30 VDC | 60 VDC | 105 VDC | ||
| Standby power Consumption | 1 W | 2 W | 2 W | ||
| PHYSICAL | |||||
| Dimension, D x W x H (mm) | 95 x 240 x 316 | 100 x 272 x 355 | 125 x 297.5 x 468 | ||
| Net Weight (kgs) | 5.0 | 6.4 | 6.9 | 9.8 | 9.8 |
| OPERATING ENVIRONMENT | |||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||
| Operating Temperature | 0°C - 55°C | ||||
| Storage Temperature | -15°C - 60°C | ||||

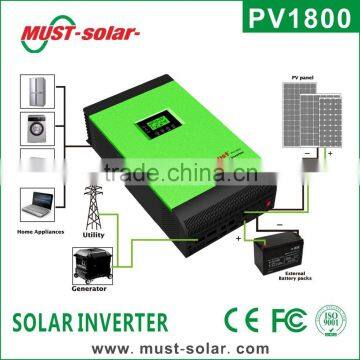

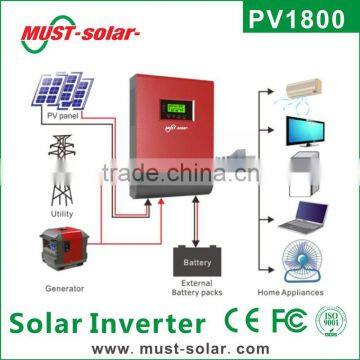

Picture of high efficiency solar inverter

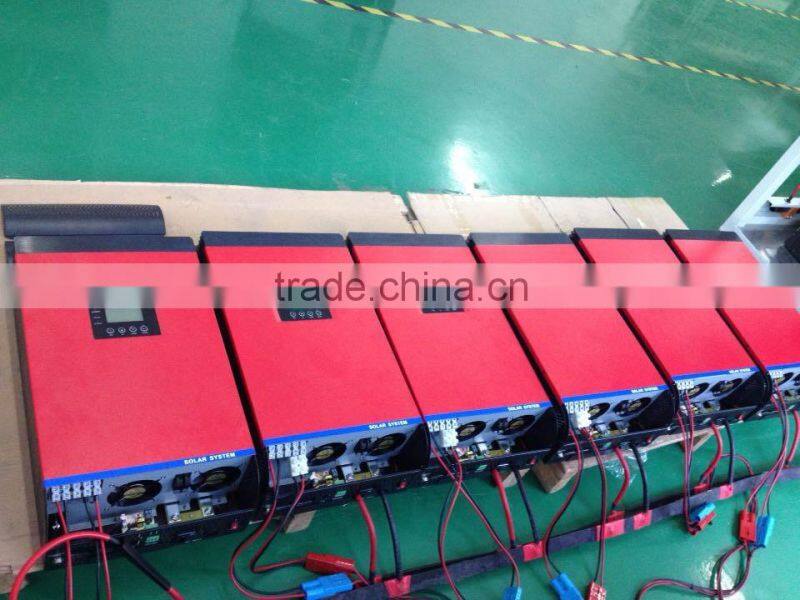

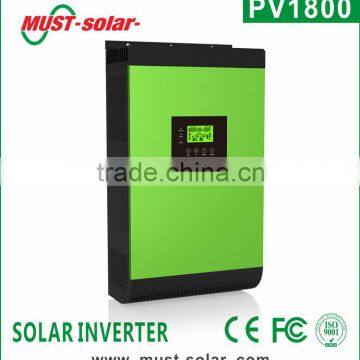

PV1800 5KVA, Off grid must power solar inverter with parallel operation.

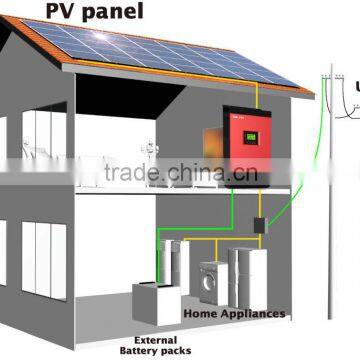

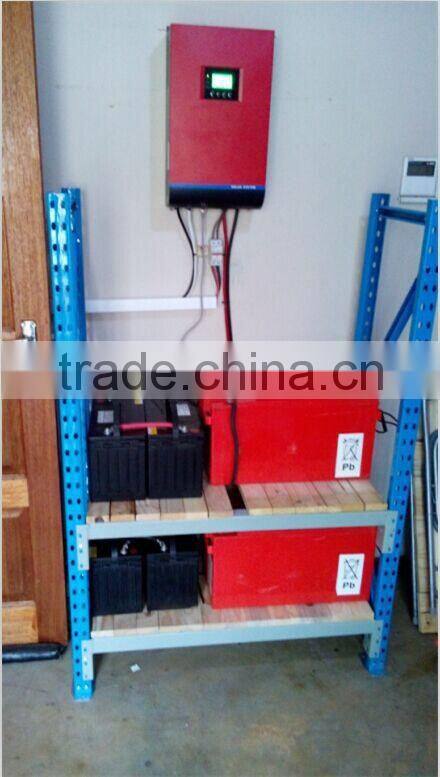

Clients installation for PV1800 solar inverter

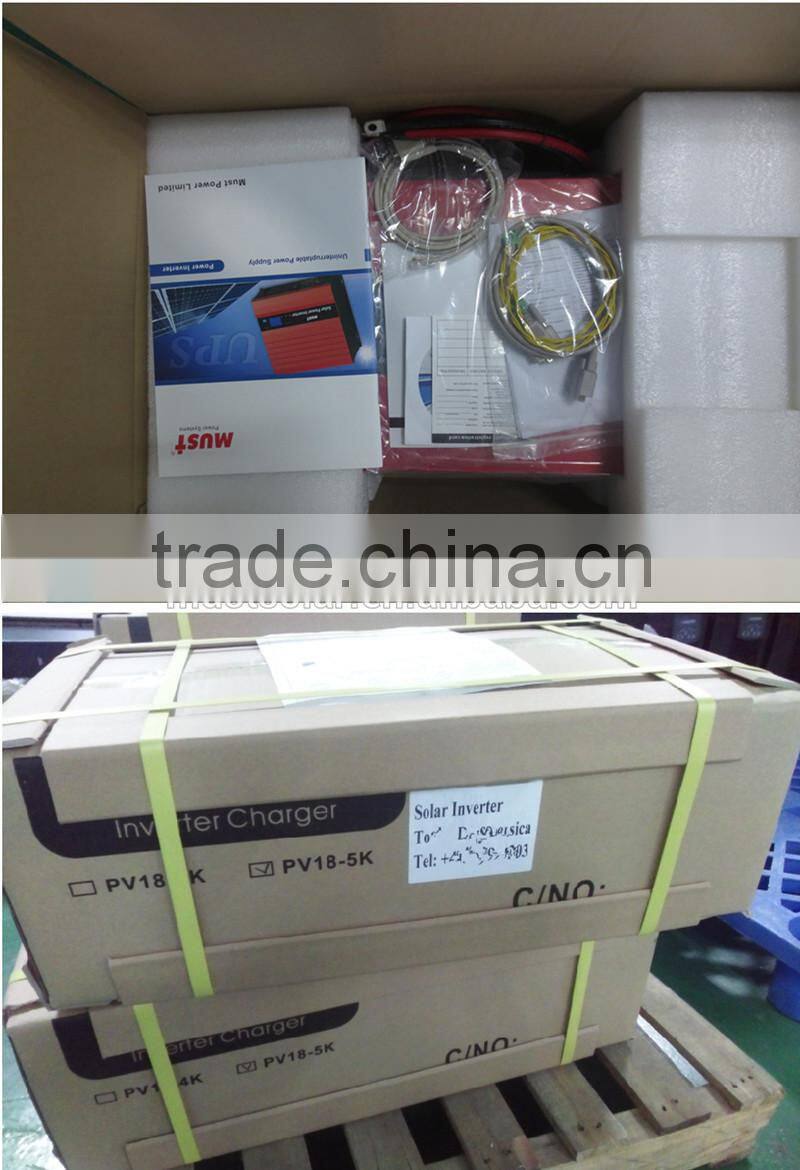

What is the packing?
1.Package: Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations. Package designed by Clients is welcomed.
2.Shipping: DHL,FEDEX,UPS,EMS,AirWay and By Sea.
3.Payment: T/T( telegraphic transfer (T/T) and Western Union
4.Welcome to your Sample Order to test First.

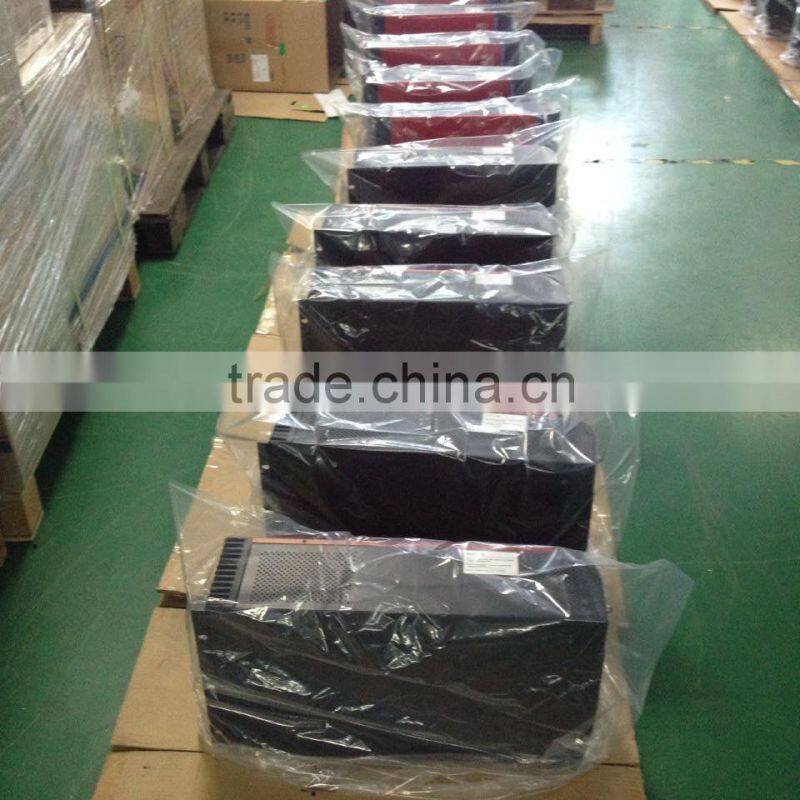

Welcome to visit our company and factory !
Why Choose US ???
OUR MUST SHOWROOM :
Our Exhibitions:
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
How to contact us?
Ms Gloria Guan Skype:mustups.gloria
what's app/viber:008613428783612
