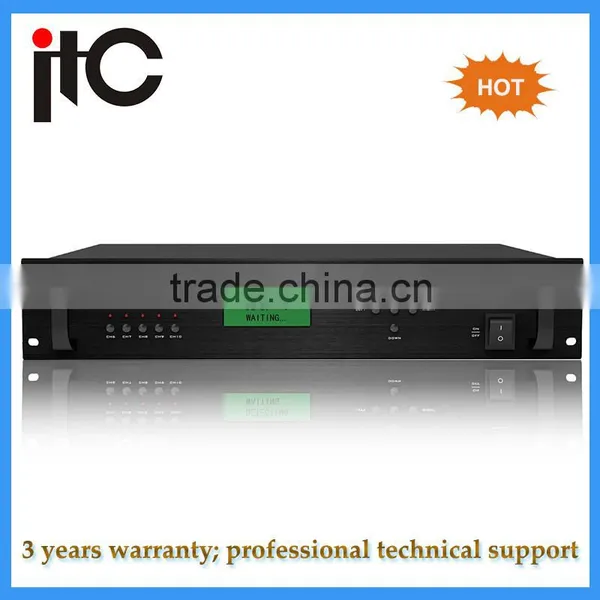

Professional rack mounted pa system Speaker Line Supervision
* Rack mounted design in 2U height
* LCD English display and 1-10 channel status indicator.
* Detection over speaker line impedance, open circuit, short circuit and overloading.
* Timely detect speaker loop line.
* Speaker line detection no interrupt with music broadcasting or paging
* Indications include indicator color change and buzzer alarm when speaker line impedancehas been changed
* Each channel detection Max. 2000W speaker loading
* LCD real time display speaker line's status and power

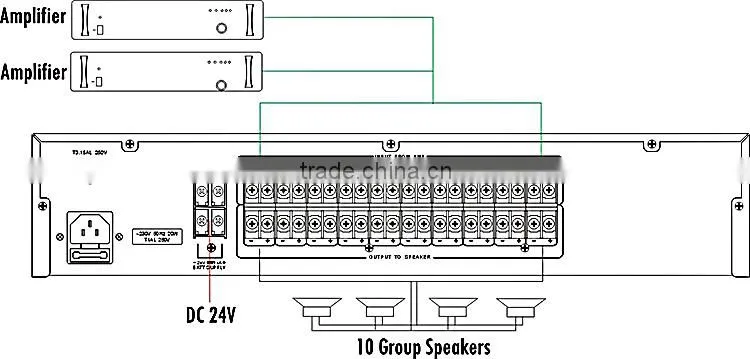

* Suitable for 100V and 70V line speaker system

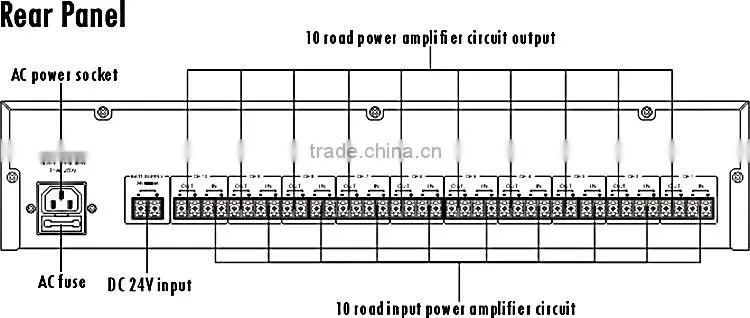

* Ten channel inputs and outputs
* AC120V or 230V and DC 24V DC operation
* Pre-setting memory function even in case of power off
Model |
T-6242 |
Power Supply |
~110V/60Hz or ~230V/50Hz & DC 24V |
Power Consum |
20W |
Dimension |
484x303x88mm |
Weight |
5.5Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
