ITC TI-1206S 6 Zones Mixer Amplifier With Bluetooth for Restaurant Paging System

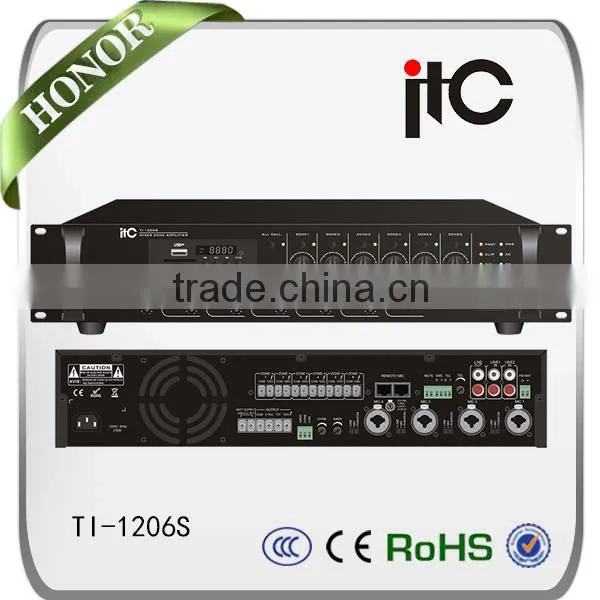

ITC TI-1206S 6 Zones Mixer Amplifier With Bluetooth for Restaurant Paging System photo-1
US$ 150 - 500 MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ITC
Model Number:
TI-1206S TI-2406S TI-3506S
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name ITC
Model Number TI-1206S TI-2406S TI-3506S
Feature

ITC TI-1206S 6 Zones Mixer Amplifier with bluetooth for restaurant paging system

1. 4 channel Mic. inputs, 2 channel line inputs, separated treble and bass control.
2. 6-channel zone output, zone volume is independently controlled.
3. Built-in bell, the bell tone is optional, 4 tones and 2 tones (built-in), the alarm generator.
4.  MP3 decoder module supports USB / SD / Bluetooth / FM radio playback. Configuring MP3 remote control, support memory function without power input, MIC recording function.
5.  When start the built-in generator, the background will turn off and 6-channel zone output will automatically turn on, switch to maximum output volume function.
6.  Built-in 24V DC power input
7.  MIC1- 4 built-in 48V phantom power and independent control switch.
8. T -216 remote microphone can remote control zone output, the maximum cascade 6pcs Mic.
9.  The audio input with separate control, tone control and master volume control
10.  A variety of LED display (signal, clip, protection LED indicator)
11.  With fan forced cooling structure, to ensure the device to keep long time working
12.  There are five priority levels:
EMC with top priority: When there is EMC alarm signal input, it overrides all audio, 6 zone outputs open automatically.
The 2nd priority level: TEL / REM MIC is priority to MIC1-4, LINE1-2,chime.The 3rd priority level: built-in alarm generator is priority toMIC1-4, LINE1-2, 6 zone outputs open automatically.
The 4th priority level :built-in chime is priority to MIC1-4, LINE1-2.
The 5th priority level :built MIC1 is priority to  MIC2-4, LINE1-2.
13.  The constant voltage output: 70V, 100V, constant impedance output: 4-16Ω

Technical Parameters
Model
TI-1206S
TI-2406S
TI-3506S

Amplifier Section (Load 100V Output )
Rated Output Power (THD 1%)
120W(RMS)
240W(RMS)
350W(RMS)
Speaker Zone 1~5 Output
25W MAX
50W MAX
70W MAX


Mic Input Section(Mic 1~4 In@1KHz)
Input Sensitivity/Impedance
5mV 600Ω/350mV 10KΩ BAL
S/N Ratio
Better than 75dB
Frequency Response (±3dB)
80Hz~16KHz
Tone Control (Bass:100Hz,      Treble:10KHz)
±10dB
Phantom Power
+ 48V


Line Input Section
(Mic 1~2 In@1KHz)
Input Sensitivity/Impedance
350mV/47KΩ
S/N
Better than 80dB
Frequency Response (±3dB)
80Hz~16KHz
Tone Control (Bass: 100Hz,        Treble:10KHz)
±10dB


Tel Audio Input
Input Sensitivity/Impedance
0.775V/10KΩ
S/N
Better than 75dB
Frequency Response (±3dB)
50Hz~16KHz


EMC Audio Input
Input Sensitivity/Impedance
0.775V/10KΩ
S/N
Better than 75dB
Frequency Response (±3dB)
80Hz~16KHz
Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In)
1V/600Ω
Remote MIC Sensitivity/Impedance
775mV/10KΩ
THD
Less than 0.1% at 1KHz, 1/3 rated power
Power Supply
~110V/60Hz or ~230V/50Hz & DC 24V
Power Consumption
180W
500W
500W
Weight
6.5Kg
7.8Kg
7.8Kg
Dimensions
484x310x88 mm

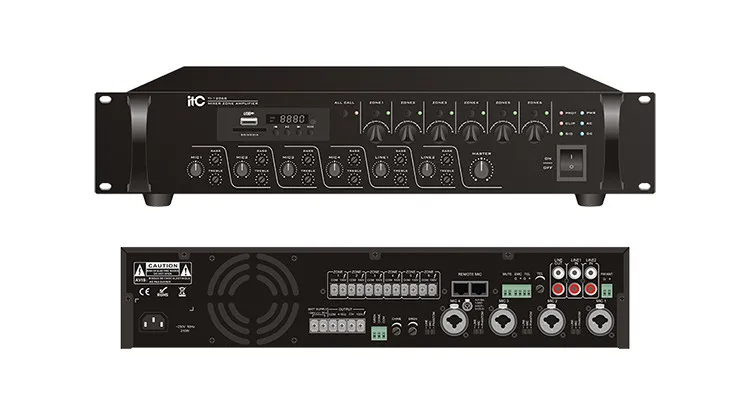

Detailed Images
Packing & Delivery

Full-sealing package of Products

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
