PA System Fire Alarm Interface voice alarm controller
What is the special features of the voice alarm controller ?
The T-6223(A) is a multi-voice alarm controller suitable for high capacity zone system, which is the interface of pa system and fire system. It is built-in fire alarm receive module and voice alarm or evcuation player module.
It includes 30 zone fire alarm interfaces, alarm matrix and voice message player, it can broadcast 3 voice messages as alert, EVAC and clear to help people been safely evacuated.
The alarm modes can be all zones, different voice alarm in separate zone, group zones and neighboring zones. In this way, the pre-set zone could be evacuated, while these neighboring zones also could be altered.

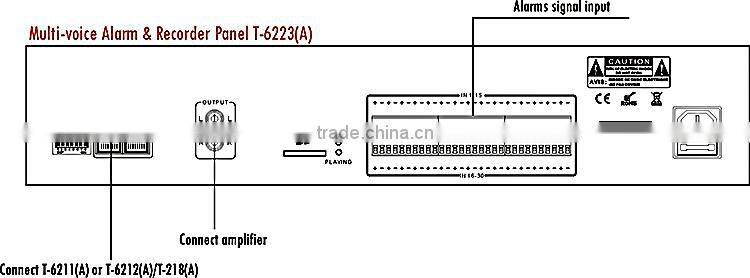

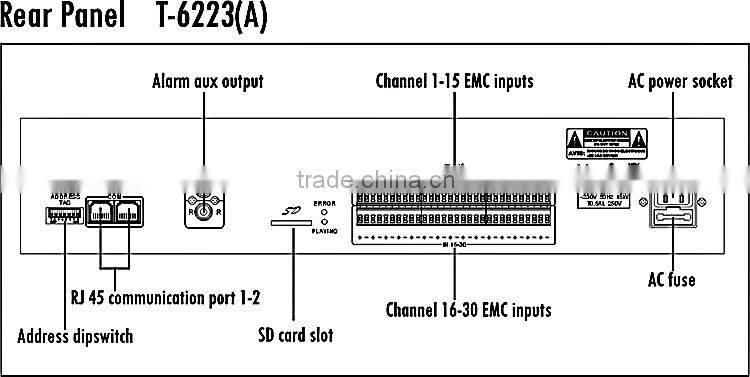

The SD card slot on rear panel is used to read SD memory card, where different voice message files could be downloaded. The file name and zone number are automatically matching with each other.

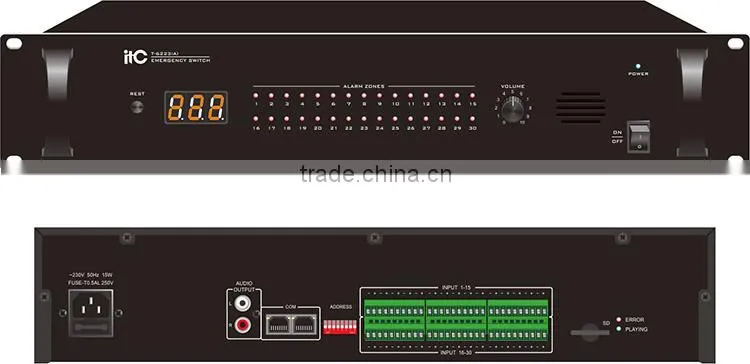

The voice alarm system could be expanded to 300 zones, its dipswitch as ID address could be easily distinguished by the controller. The dual RCA audio output is provided to link to other fire alarm equipments. 2 RJ45 communication ports is used cascade another unit or controller. Front panel's LED is used to display the ID address. Each 30 zones' select buttons and state indicators are on the front panel. An overall volume control is provided.
The zone number and voice message number are automatically accordingly matched.
What is the special features of the voice alarm controller ?
* Multi voice alarm controller
* Built-in alarm interface, alarm matrix and message generator
* Different voice message alarm in different zones
* All zones, group zones, neighboring zones and separate zone alarm modes one each units and expandable to 300 zones
* 2G SD memory card to download voice alarm message
Optional:
* DC 24V
* Panel with/without handhold
What is the special Specification of the voice alarm controller ?
Model | T-6223(A) |
Power Supply | ~110V/60Hz or ~230V/50Hz |
Power Consum | 15W |
Communication Protocol | RS422 |
Communication Input | RJ45 |
Communication | 4800bps |
Dimension | 245 ×316 ×88mm |
Weight | 5Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
