T-318
PA System Remote Zone Paging Microphone
(amplifier with audio sources, mixer preamplifier, mixer amplifer, class-d amplifier, loop amplifier,power amplifier,weekly timer,mic & podium lectern,volume control, public address & communication system,audio matrix system)

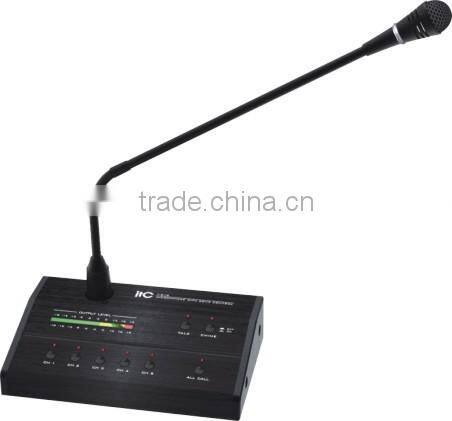

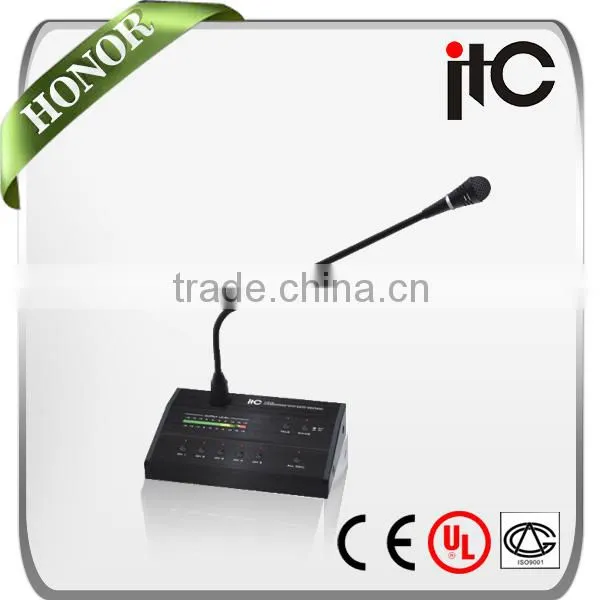

T-318 is remote paging console with 5 zone mixer amplifier TI-120S/TI-240S/TI-350S/TI-500S,
whose communication distance up to 1kms.
The paging console could be power supplied by the mixer within 50 meters, while extra DC 24Vpower supply is needed when distance is longer than 50 meters. The paging console provides adirect zone and paging control over the amplifier's output.
* Remote paging console with input priority over Mic1 and siren/chime excep t fo r EM C input andTE L input
* Condenser microphone type
* 2/4 tone selectable pre-announcement chime
* Each 5 zone, all zones, talk and chime functional buttons.
* Volume control over chime, Mic and master
* 10 segment LED amplifier output level meters
* DC power socket and DC 24V input
* Extra DC power supply is needed when communication distance is more tha n 5 0 meters
Model |
| T-318 |
Mic Input Section(Mic 1~4 In@1KHz) | Input Sensitivity/ Impedance | -50dB/600Ω balanced |
S/N Ratio | Better than 65dB | |
Frequency Response (±3dB) | 50Hz~16KHz, -3dB | |
THD | Less than 0.1% | |
Output | 0.775V/600Ω | |
Power Supply | DC 24V | |
Weight | 960g (Without Microphone) | |
Dimensions | 197x115x43.5mm | |
ITC CE Certification
- History back up to 1993.
- 1,000 employees and 800 hand workers.
- 50 R & D members and 6 chief engineers.
- Electronic factory, speaker factory, hardware and wooden factory & speaker tooling factory.
- Advanced equipment include: SMT machine, reflow oven & numerical control cutting machine.
- ISO9001-2000 quality control system certificated in 2007.
