T-4012

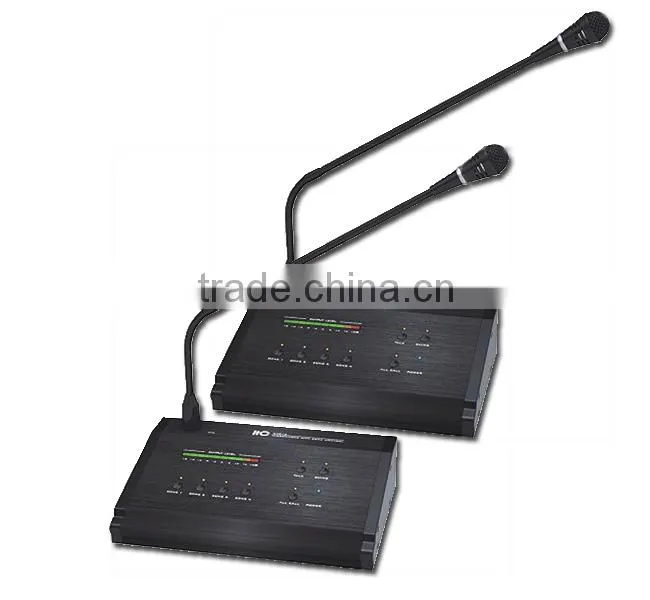

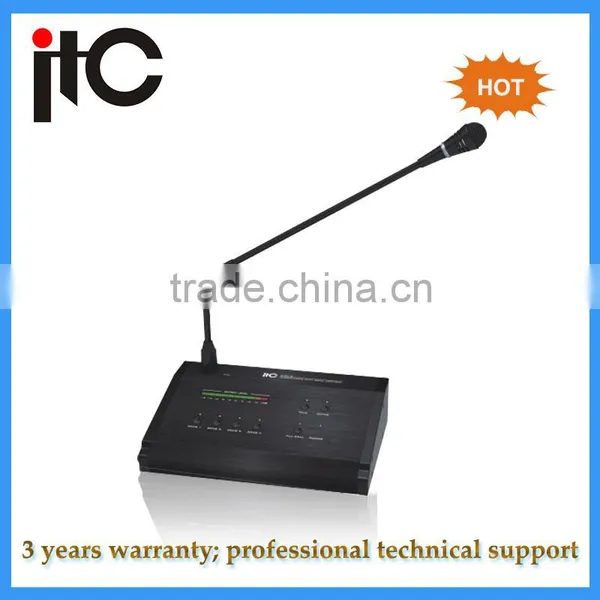

Remote 4 Zone Paging Microphone
The T-4012 is a remote paging microphone with 4 zone capacity for T-4060MP and T-4120MP amplifiers only.

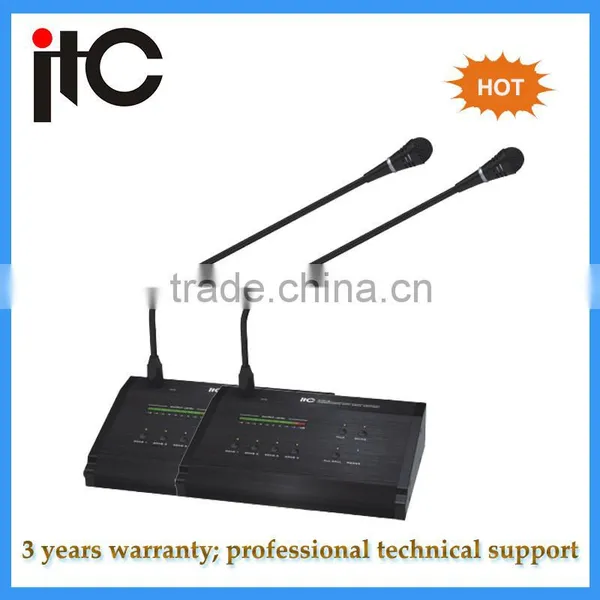

They are linked by RJ45 port through CAT5 cable, max 6 microphones can be cascaded together for one amplifier.
The microphone is built-in a two & four tone chime selector, it is powered by amplifier at 24V DC. Maximum communication distance is 1kms. There are four zone selector, all call, talk and chime bush buttons, the 10 segments level meter is supplied to display the output level. Built-in microphone, chime and master volume control.
Remote 4 Zone Paging Microphone
* 4 zone remote paging microphone
* With zone, group zone and all zone paging capacity
* One amplifier capacity is 6 microphones
* The microphone was connected to the amplifier through CAT 5 cable
* The microphone is DC24V powered by the amplifier at max 1kms distance
* Built-in pre announcement chime of 2 & 4 tone selector
* With microphone, chime & master volume control
* With 10 segments level meter
Remote 4 Zone Paging Microphone
Model |
T-4012 |
Mic Type |
Condenser microphone |
Communication Mode |
Level control |
Capacity |
4 ZONE |
Output Level |
1V/600Ω |
Frequency Response |
80-18KHz (+1/-3dB ) |
THD |
≤1% |
Power Consumption |
10W |
Communication Distance |
1KM |
Power Supply |
24V DC |
Dimension |
197x115x43.5mm |
Weight |
960g (Without Microphone) |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
