Public Address System Remote Zone Paging Mic T-328
- 500000 Piece / Pieces per Month
- Guangzhou Shenzhen or Hongkong
- T/T L/C D/P D/A
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ITC | Model Number: | T-328 |
Product Description

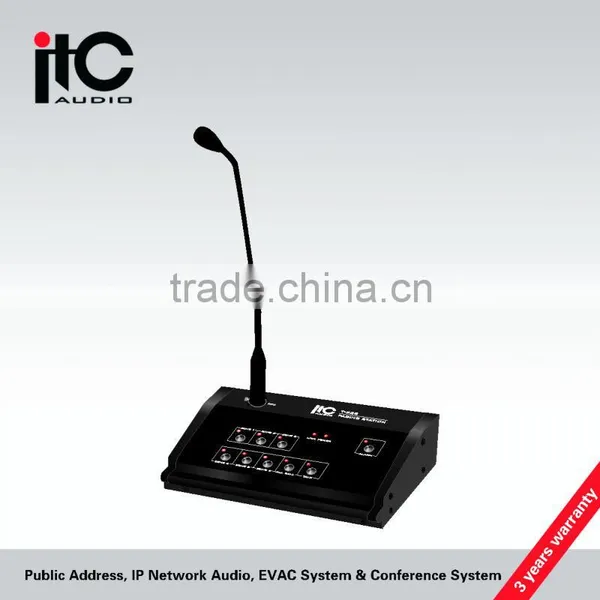

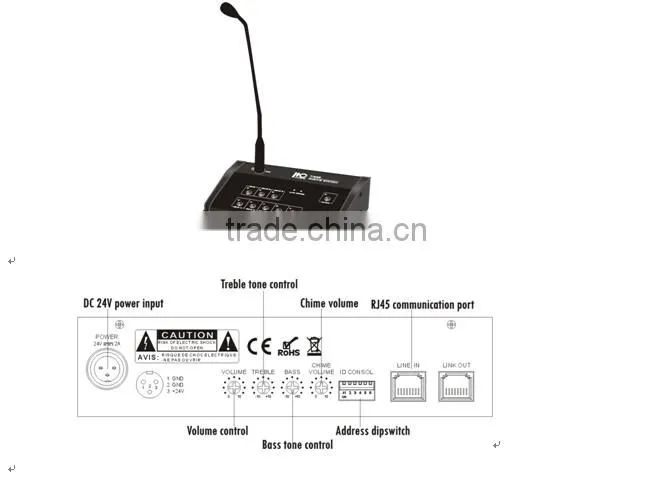

Public Address System Remote Zone Paging Mic T-328
Microphone Descriptions
The T-328 remote paging console works together with T-6245 mixer for remote controland announcement. Its 6 zone selectors provide a direct control interface for use toeasily control and zone paging. The alarm button will automatically activate thepre-recorded message 3 over other aux inputs. It could be power supplied by the mixerwithin 50 meters, while extra DC 24V power supply is needed when distance is more.
The 2 RJ45 communication ports is used to communicate with the mixer and nextpaging console. Dipswitch could be distinguished by the mixer makes 6 paging consoleswork simultaneously possible.
Microphone Features :
* Zone selection
Push the switch for one zone or all zone and the zone led turn on.
* Announcement
After selecting the zone where to make the announcement, then keep pushing thetalk button till the led turn on, the internal chime will be heard, after that, the usercould proceed with the announcement. If the zone selected is already taken by anotherconnected paging console, the talk led starts blinking which means line is busy.
* Pre-recorded message 3 remote trigger
After selecting the zones, push the alarm button to activate the pre-recorded voicemessage 3 broadcasting. Based on the setting of continuous and once play modesfrom T-6245, the accordingly activity will be taken.
* Priority
The remote paging announcement with priority over mic1, chime and pre recordedmessage broadcasting.
* Pre-recorded messages
Three different voice messages could be recorded and stored in the mixer, while eachmessage's broadcasting time max is 3 minutes.
* Capacity of 6 paging console working at the same time.
Specifications
Model | T-328 |
MIRCOPHONE INPUT |
|
Sensitivity | ±5 mV/600Ω |
S/N Ratio | >68dB |
Frequency Response | 100Hz~17KHz(+1, -3dB) |
Phantom Power | +12V |
CONTROL |
|
Bass | ±12dB at 100Hz |
Treble | ±12dB at 10KHz |
Chime | 2 tone active for contact free inpriority and BGM |
Normal Distortion | >0.1% |
OPERATING CONDITION |
|
Power Supply | DC 24V |
Dimensions | 220x142.7x51.5 mm |
Weight | 0.96Kg |
Max number of paging console | 6 |
Guangzhou ITC Electronic Technology Limited
Company Profile
ITC Audio was established in 1993, and we have been constantly devoted to the R & D and manufacture of public address system, conference system, IP system and EVAC voice system. We are one of the eariest manufacturers among public adress industry in China.
Project Reference
ITC Audio succeeds to carry on major famous projects as below, relying on its exquistite technology and excellent service which is the leader in the industry.
*the 2008 Beijing Olympic Games
* the 2010 Shanghai World Expo
* the 2010 Guangzhou Asian Games
* the 2011 Shenzhen Universiade
* more
ITC Audio cooperates with many international noted brands to accomplish well-known projects as below.
* the Central Bank of Poland Country
* the International Financial Building of Azerbaidzhan
* the Seven-star Hotel of Dubai
* the University of Toronto
* more
ITC Audio dedicates to the internal market and expand its offerings throughout the world. Its products have been sold to more than 60 countries such as America, England, and Russia. ITC Audio will constantly provide globle clients with the public address products and service beyond their expectation.
Certification & Trademarks

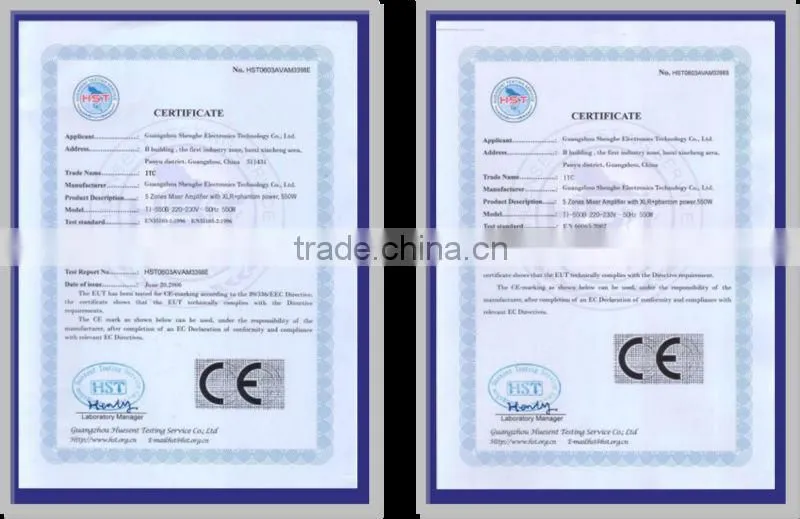

CE

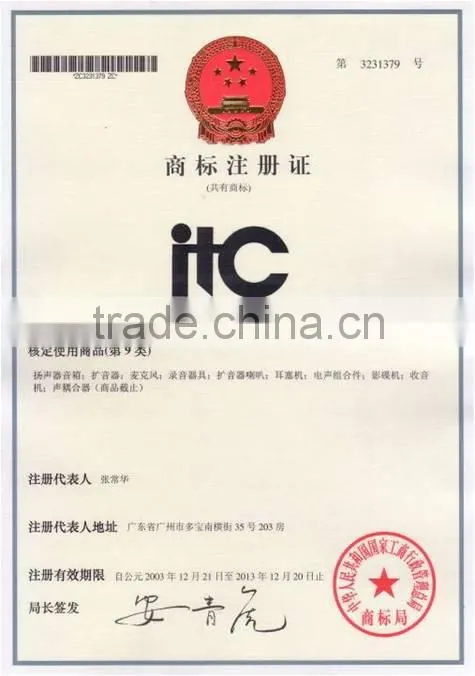

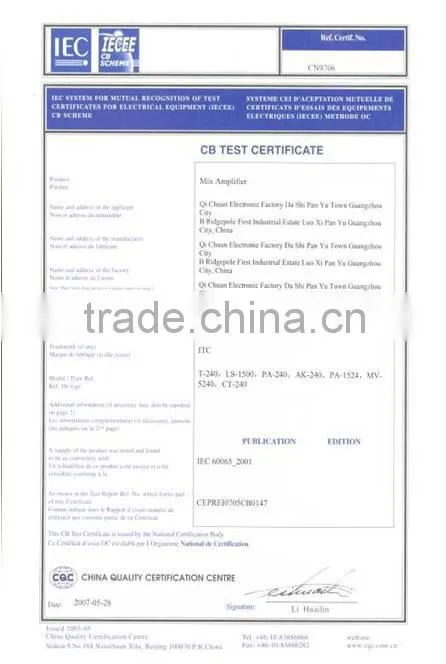

Trademark registration CB
Contact Us
- Guangzhou Baolun Electronics Co., Ltd.
- Contact nameFancy Fong
- Phone86-20-84590536
- AddressBuilding NO. A13-1, Yiku Industrial Park, The Hills, Dongyi Road, Panyu Guangzhou,Guangdong
