T-6716

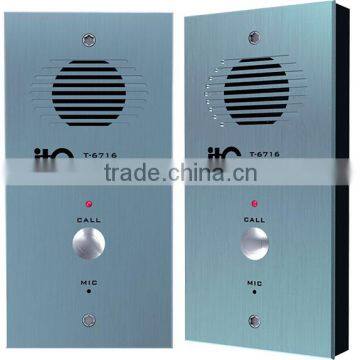

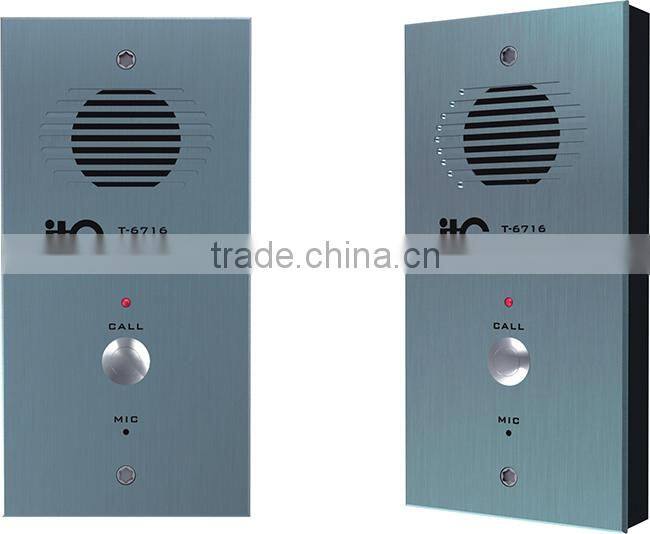

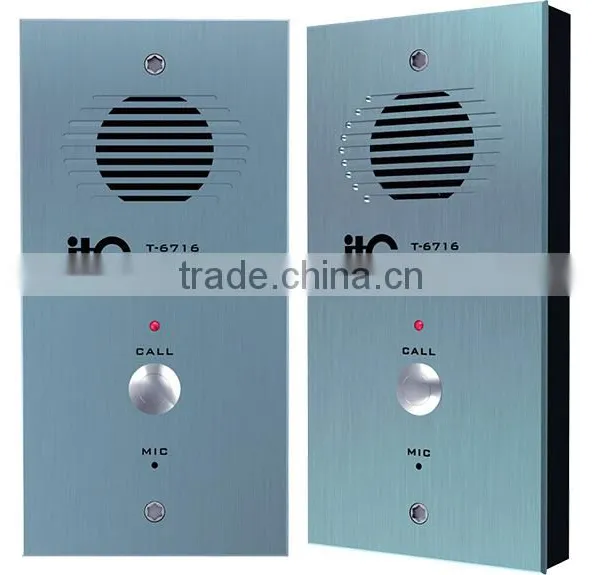

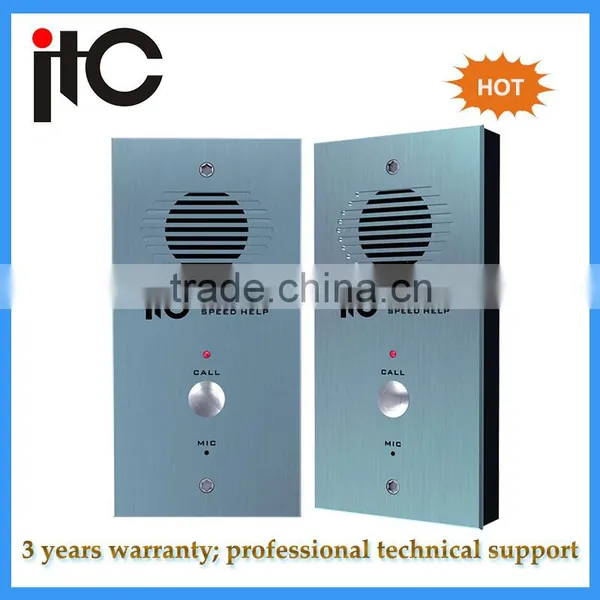

Professional emergency ip audio intercom system for bank ATM with single bond
It’s in design of double 86 bottom box; Easy installation
2 option: 1-key (for alarm) or 2-key (1 for alarm, the other for business dialogue);
2 modes of install: 1 Unfold install; 2 Concealed install
Just to press 1 key to call the target terminal; Full-duplex communication
Connection way is hand-in-hand, which is up to 15; The distance is up to 1.2Km
Built in nonpolar mic and amplifier circuit to achieve high sensitive pick-up
With 2W hi-fi full range speaker
It’s in high degree of protection design; To adopt aluminum alloy case and anti-demolition screw; And it’s waterproof.
Model | T-6716 |
Network Interface | Standard RJ45 input |
Communication Protocol | RS485 |
Frequency Response | 80Hz~16KHz (+1dB,-3dB)) |
T.H.D. | ≤0.01% |
S/N Ratio | ≥85dB |
Mic Input | 10mV |
Speaker Power & Impedance | 2W, 4ohm |
Power | ≤3W |
Power Supply | Within 300 meters direct power supply from T-6715, external DC 24V is needed when distance is more, max 1.2kms |
Dimensions | 172x86x23mm |
Weight | 0.2Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
