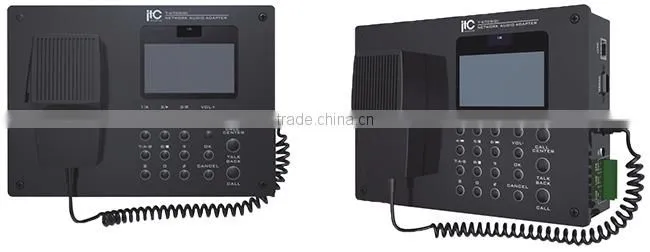

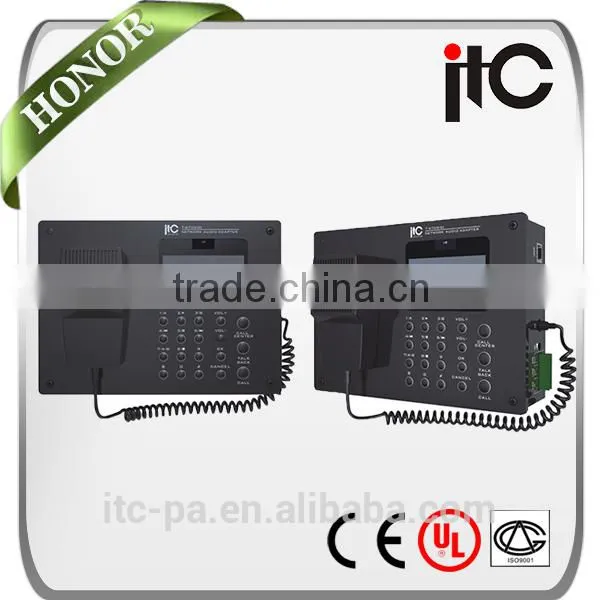

T-6705(D)
Professional digital full duplex intercom system
Control room where intercom and sound system is both required, it can be take as a intercom station tocall any zone, receive intercom call from intercom panel and serve as one IP amplifier to receive andbroadcast network sources. Moreover, it also have the basic PA system features: background musicsystem, zone paging system and voice alarm system highest priority broadcast.
* Wall-mount design with emergency intercom hand-clip microphone
* 3.4 inch LCD with user-friendly English display
* With numeric keys, function keys to call any terminal, easy and quick to operate.
* With two-way intercom, realizing 2-way intercom from IP terminals and IP terminals..
* Built-in 10W low impedance power amplifier for loading 4 loudspeaker
* Support hands-free calls and broadcast receiving.
* Support local microphone, line input, volume adjustment.
* Audio auxiliary output, external power amplifier expansion.
* With AC220V 10% AC power interface.
Model |
T-6705(D) |
Network Interface |
Standard RJ45 input |
Audio Format |
TCP/IP, UPP, IGMP |
Audio Format |
MP3/MP2 |
Sampling Rate |
8K~48KHz |
Transfer Rate |
10/100Mbps |
Audio Mode |
16-bit stereo CD sound quality |
Output Frequency |
20Hz~16KHz |
Harmonic Distortion |
≤3% |
S/N Ratio |
>70dB |
|
Speaker Output Impedance and The Rated Power |
4 ohm, 1x10W industry-standard compression terminals |
Auxiliary Line Input Level |
400mV industry-standard voltage wire terminals |
Audio Output Level |
775mV industry-standard voltage wire terminals |
Audio Output Impedance |
1000ohm |
Mic Input |
10mV |
Operating Temperature |
5 °C~+40°C |
Operating Humidity |
10%~90% |
Power Consumption |
≤18W |
Power Supply |
~110V/60Hz or ~230V/50Hz |
Dimensions |
220x157x37mm |
Weight |
1.25Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
Packaging |
|
1)Bubble+Carbon+Wooden 2) Your request. (a plastic bag and foam for product protection, then brown master carton outside.)
|
Shipping |
|
1) Main port: Guangzhou, Shenzhen & HK 2) FOB/ EXW or CIF. Our sales team are capable enough to arrange the shipment if you want. 3) All the cargoes under inspection before shipment. |
