IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U

IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U photo-1

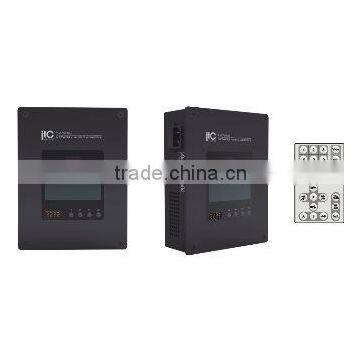

IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U photo-2

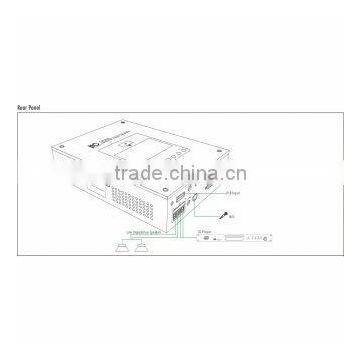

IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U photo-3
US$ 0.2 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ITC
Model Number:
T-6705U
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ITC
Model Number T-6705U

IP LAN Addressable Network Audio Adapter with USB AmplifierModel: T-6705U

(IP digital amplifier, IP audio decoder, sound system over internet, voip sound system, IP addressable pa system, digital ip audio system, digital ip audio amplifier)



         IP LAN Addressable Network Audio Adapter with USB Amplifier Descriptions:

  • The IP system, TCP system, IP PA system, Internet PA system are suitable for background music system, paging system and fire alarm system. And the T-6705U is a network audio amplifier with USB input.
  • The public address system based on IP, it is easy to identify each amplifier and speaker
  • The system is fully Digital PA system to make sure hi-fi sound quality
  • The IP addressable PA system is fully digital link with intercom, CCTV, security and fire alarm system



        IP LAN Addressable Network Audio Adapter with USB Amplifier Features:

  • 3.4 inches LCD screen English display
  • With remote control to write in and select
  • Built-in 15W digital class-D amplifier
  • Aux output for larger power amplifier
  • Built-in time program collecting module to have real time broadcasting
  • Expandable HUB module to realize hand-in-hand connection
  • Support IR remote control to select program freely
  • Support local MIC, line input and volume adjustment
  • Remote priority forced insertion.

  • IP LAN Addressable Network Audio Adapter with USB Amplifier Specification:
Specifications

Model

T-6705U

Network Input

Standard RJ45x1, 1 Input

Protocol Support

TCP/IP, UDP, IGMP (group broadcasting)

Transmit Speed

10/100Mbps

Audio Format

16 digit stereo CD tone

Frequency Output

20Hz~16KHz

THD

≤0.3%

S/N

≥75dB

Speaker Output Impedance

and Rated Power Output

4Ω, 1x15W Industrial Standard Screw terminals

Aux Line Voltage Input

350mV input Industrial Standard Screw terminals

MIC Input S/N

5mV

Working Temperature

5°C~+40°C

Working Humidity

20%~80%

Power Consumption

≤30W

Power Supply

~110V/60Hz or ~230V/50Hz

Dimensions

187x144x60mm

Weight

3Kg







          Guangzhou ITC Electronic Technology Limited



IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U



1. Exhibitions

  • Event: Prolight + Sound Shanghai (10 to 13 October, 2013)
  • IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705UIP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705UIP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705UIP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U



ITC will put out new revolutionary products to completely change the PA industry:



 1) Energy star Range Digital Class-D Mixer Amplifier at High Price Competitive (30W-60W-120W)
 2) Four Channel Mixer Amplifier with Mp3 & Recorder for Multi-room matrix sound system  (4×60W & 4×120W, up to 6 remote mics).
 3) Network EVAC System (Voice Alarm & Evacuation System)
 4) Flexible system expansion,
 5) Automatically IP address configuration, full system redundancy, speaker line supervision
 6) Digital Conference System



      Now these new products are ready for purchase order, please contact your sales manager or directly send us mail to

                                      info  for price and more information.

 IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U

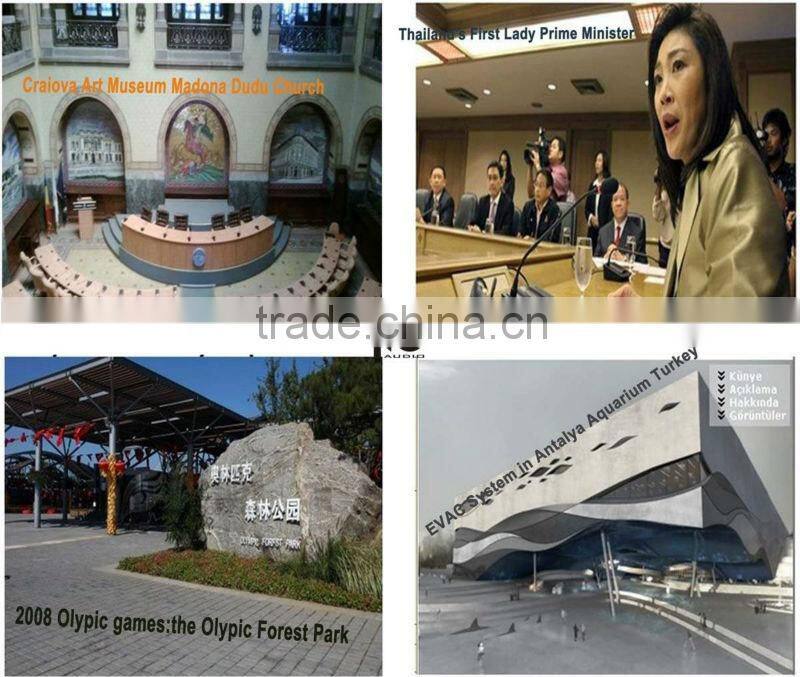

2. Project References:

IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U

  1. Craiova Art Museum Madona Dudu Church

  2. Conference system in Thailand's First Lady Prime Minister

  3. 2008 Olypic games:the Olypic Forest Park,Capital Stadium,Beijing Industry University                                                                                                Gymnasium

  4.  EVAC System in Antalya Anquarium Turkey

More Projects References:

  • T-8000 System in Hotel Park Plaza Histria in Pula, Croatia
  • T-6245 System in Mall with furnitures. Lesnina XXXL Jankomir in Zagreb, Croatia
  • EVAC System in Monachus Hotel Turkey
  •  IP system in Limketkai Hotel Philippines
  • IP system in Chile Cooper Mine
  • Conference system in Cyprus Airways
  • Lectern/Podium to India Air Force

IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U

IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U

3. Certifications&Trademarks(Honor&Awardcertifications)

  • CE&CCC   RoHS&ISO9001IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U

IP LAN Network Audio Adapter IP PA System & IP Digital Amplifier T-6705U

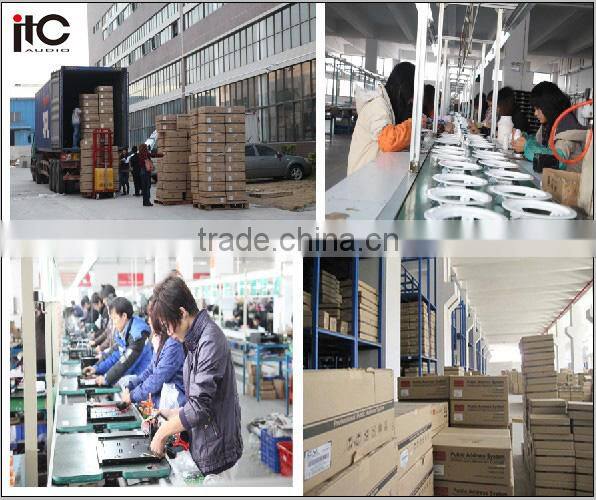

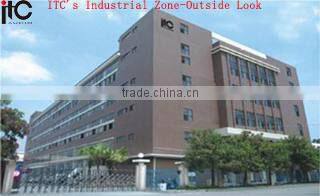

4. Factory Details



ITC is a famous commercial audio system, public address amplifier and loudspeaker manufacturer in China. We established our assembly factory back up to 1993 in Guangzhou city of China.

Product ranges:
1) Public Address Mixer and Power Amplifier
2) Amplifier with Audio Source
3) Loudspeaker
4) Audio Source and Microphone
5) Public Address System
6) Digital Cyber-net PA System
7) EVAC System
8) IP PA System
9) Digital Conference System and Interpretation System
10) Pro Sound Amplifier and Speaker

Certifications:

Our products are complied worldwide certificates: CE, EMC, EN60849, IEC/EN60065, CSA/UL, CB, CCC, RoHS and ISO9001.

Besides, some of our speakers are complied with waterproof (IP66) and fireproof and EVAC certificates.

Family Team and Markets:

 The total number of our employees now is more than 800. 500 handworkers, 50 QC and QA , 25 engineering department, 25 R &D, 15 techinical support, 120 salesmen and 6 branches office (Beijing, Shanghai, Nanjing, Shenyang, Hangzhou and Xi'an). In addition,We also keep 2 weeks of stocks at our more than 6000 square meter warehouse.

 After 6 years of export market exploration, now we had worked with more than 45 distributors from Europe, Australian, North America, Asia, Middle East and Africa.

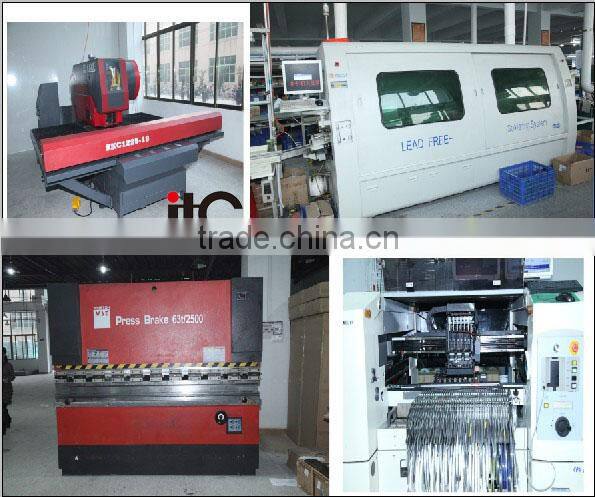

Four  factories:

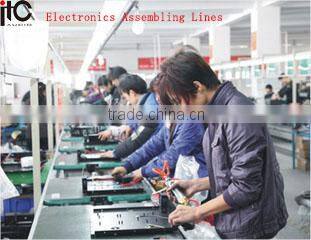

1) Electronic factory of 4 assembly lines
2) Speaker factory of 4 assembly lines and speaker driver line
3) Hardware, plastic and wooden department
4) Amplifier and speaker transformer factory

So we have confidence to promise our failure rate is less than 1% and warranty 3 years.
