Professional Digital ip Network Audio System With RJ45 Port

US$ 230 - 500 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

T-6701

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen or HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ITC

Model Number T-6701

T-6701

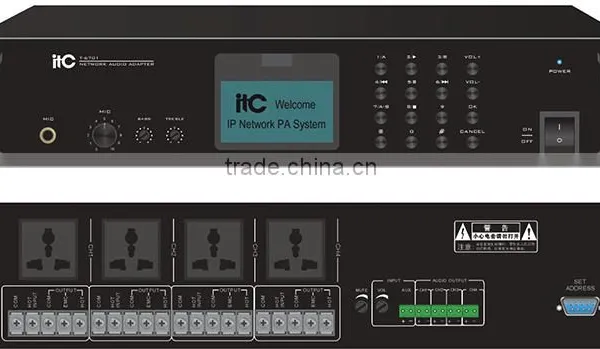

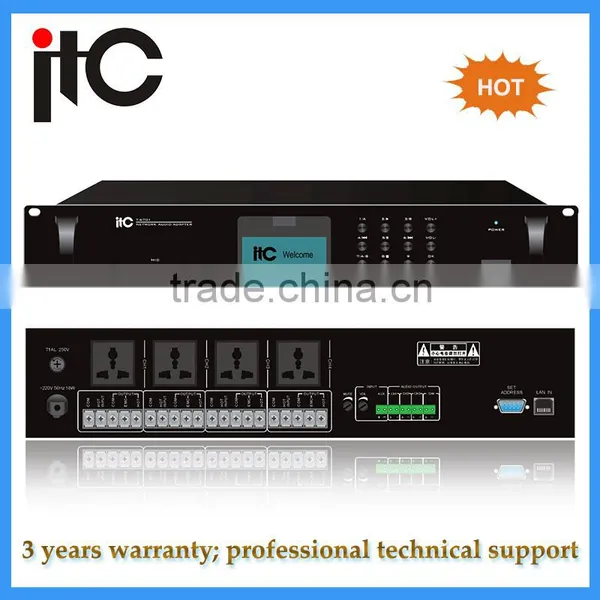

Professional Digital ip network audio system with RJ45 port

Features

19 rack mount IP/TCP network audio adapter in 2U height
Built-in single channel TCP/IP decoder
Decode digital audio data to analog amplifier

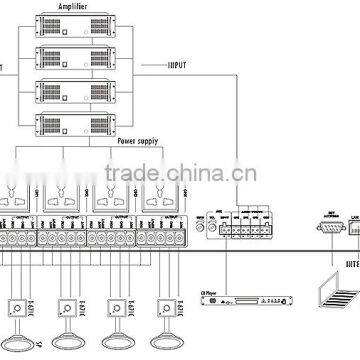

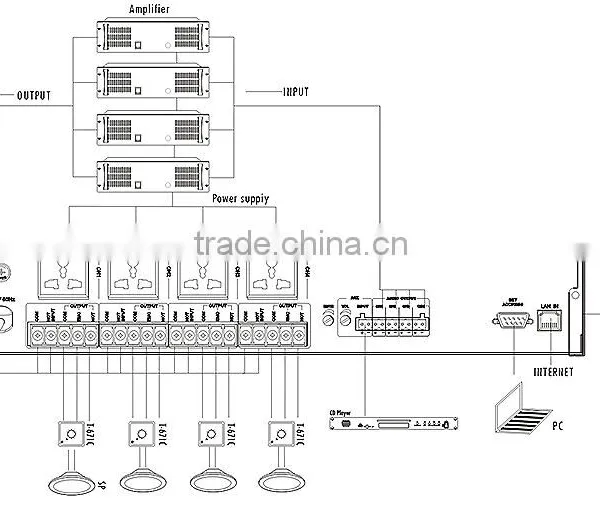

Heart of IP background music, zone paging & voice alarm system
Built-in 5 inch LCD screen display the IP address and status in English
Supplied a remote control over music selection, IP address change and volume attenuation
A serial IP address write in communication port
Numeric keys on front panel for convenient operation
4 channel line outputs to amplifiers
4 channel 100V speaker inputs loop and 4 channel 3 wired volume control inputs
1 external line input (with volume control) and mic input
Automatically power off when no input for 5 minutes and automatically power on when signal feed into
Pre-set power management

Specification

Model	T-6701
Network Input	Standard RJ45x3, 1 input, 2 output
Protocol Support	TCP/IP, UDP, IGMP (group broadcasting)
Audio Format	MP3/MP2
Sampling Rate	8K~48KHz
Transmit Speed	10Mbps
Audio Mode	16 digit stereo CD tone
Frequency Output	20Hz~16KHz
THD	≤0.3%
S/N	>70dB
Aux Line Voltage Input	2x400mV Industrial standard screw terminals
Sources Voltage Output	8x775mV Industrial standard screw terminals
Audio Output Impendance	0V Industrial standard screw terminals
Alarm Control Output	0V Industrial standard screw terminals
Power Source Control Output	0V Industrial standard screw terminals
Program Control Output	DC 24V Industrial standard screw terminals
Working Tempreture	-20°C~+60°C
Working Humidity	10%~90%
Power Consumption	≤40W
Power Supply	~110V/60Hz or ~230V/50Hz
Dimensions	484x350x88mm
Weight	8Kg
