Digital ip network based audio system for school pa project
(IP digital amplifier, IP audio decoder, sound system over internet, voip sound system, IP addressable pa system, digital ip audio system, digital ip audio amplifier)
- The IP system, TCP system, IP PA system, Internet PA system are suitable for background music system, paging system and fire alarm system
- The public address system based on IP, it is easy to identify each amplifier and speaker
- The system is fully Digital PA system to make sure hi-fi sound quality
- The IP addressable PA system is fully digital link with intercom, CCTV, security and fire alarm system

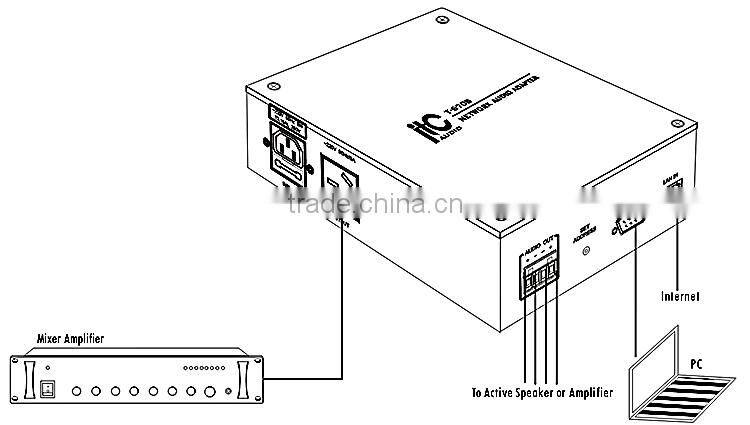

- IP network audio adapter to work with external power amplifier
- Direct to receive internet audio source to decode into analog source as IP mixer pre amplifier
- Non-dedicated network system solution
- Could be installed anywhere of the LAN network
- Economy network audio solution for mulyiple small sized room applications
- Zone definition is done through software, each one or several audio adapters could be taken as one group
- Build-in order programmed collect module, and it can realize the real time signal collect function
Model | T-6708 |
Network Input | Standard RJ45x1, 1 Input |
Protocol Support | TCP/IP, UDP, IGMP |
Aux Format | MP3 & Mp2 |
Sampling Rate | 8K~48KHz |
Transmit Speed | 10/100Mbps |
Audio Format | 16 digit stereo CD tone |
Frequency Output | 20Hz~16KHz |
THD | ≤0.3% |
S/N | ≥75dB |
Aux Output | 1000mV |
Aux output Impedance | 1KOhm |
Working Temperature | 5℃ ~40℃ |
Humidity | 20%~80% |
Power Consumption | ≤8W |
Power Supply | ~110V/60Hz or~230V/50Hz |
Dimensions | 187x139x60mm |
Weight | 0.6Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
