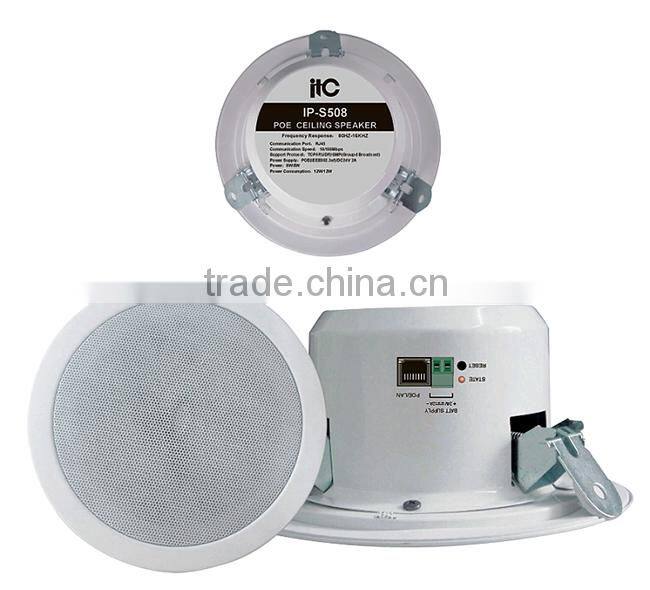

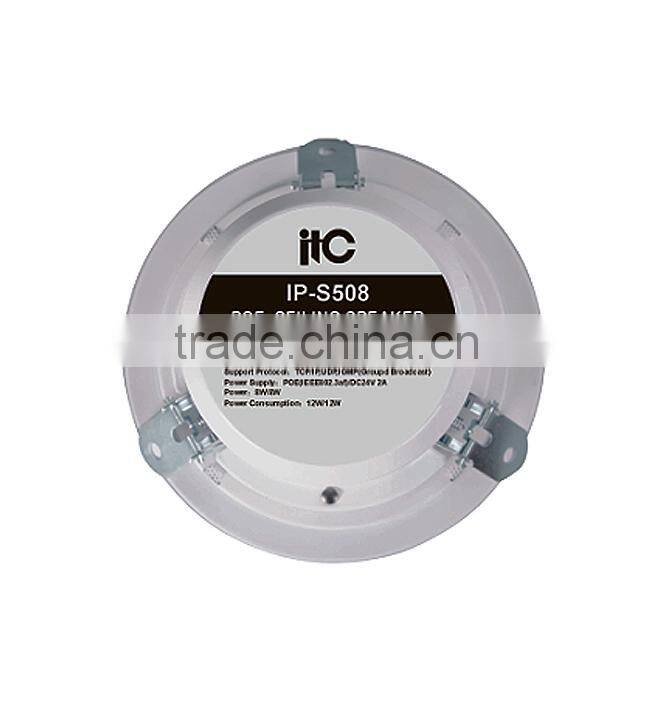

Hifi CD Level Sound Quality IP Audio Speaker support POE
It’s in professional all in one design. It’s ceiling speaker with tech. of IP audio codec. It’s built in digital amplifier of constant impedance output and hifi speaker.
It’s suitable for office, conference room, etc where need sentinel play.
- It adopts DSP that make its startup time is less than 1s.
- Power supply supports the method of IEEE802.3af which only needs a network cable so that it’s cost-effective and easy to be installed. The transmission distance is up to 80m.
- It’s also with port for DC power, in case the power demand is higher than 10W.
- Internal digital amplifier is with auto. gain adjustment, adaptive power supply and auto. amp adjustment. Therefore, it’s always in the status of high performance.
- The speaker driver is in full band and highly sensitive.
- It’s with retardant cover.
- It should work with POE switcher.
- It could start to work wherever there’s Ethernet port. And it support cross-segment and cross route.

Model | IP-S508 | IP-S515 | IP-S625 | IP-S835 | |
Power Supply | POE (IEEE 802.3af) / DC 24V 2A | ||||
Power Consume | RJ45 | ||||
Transmission Speed | 100Mbps | ||||
Communication Protocol | TCP/IP, UDP, IGMP (multicast) | ||||
Audio Format | MP3/MP2 | ||||
Audio Mode | 16 digital stereo CD level | ||||
Sampling Rate | 8K~48K | ||||
Bit Rate | 8K~512Kbps | ||||
Rated Power Output | 8W / 8W | 8W / 15W | 8W / 24W | 8W / 32W | |
Power Consume | 12W / 12W | 12W / 24W | 12W / 32W | 12W / 40W | |
Standby Power | <3W | ||||
Frequency Response | 60Hz~18KHz +1/-3dB | ||||
THD | ≤1% | ||||
S/N Ratio | ≥68dB | ||||
Driver Type | 8Ω/6W Bass speaker | 8Ω/20W Coaxia speaker | 8Ω/30W Coaxial speaker | 8Ω/40W Coaxial speaker | |
Circuit Protection | Over Voltage, over current | ||||
Working Temperature | 5℃~40℃ | ||||
Working Humidity | 20%~80%, Relative humidity, without condensation | ||||
Cutout Size | 160mm | 184mm | 214mm | 255mm | |
Dimension | 180 x 98mm | 147mm | 150mm | 280 x 180mm | |
Weight | 0.8Kg | 1.2Kg | 1.5Kg | 2.5Kg | |
