IP Network Remote Paging Microphone ip Public Address System

IP Network Remote Paging Microphone ip Public Address System photo-1
US$ 210 - 500 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ITC
Model Number:
T-6702
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ITC
Model Number T-6702

IP Network Remote Paging Microphone ip public address system

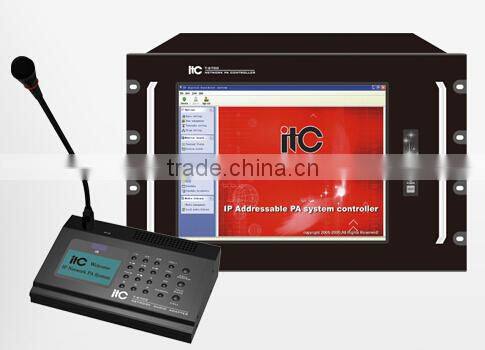

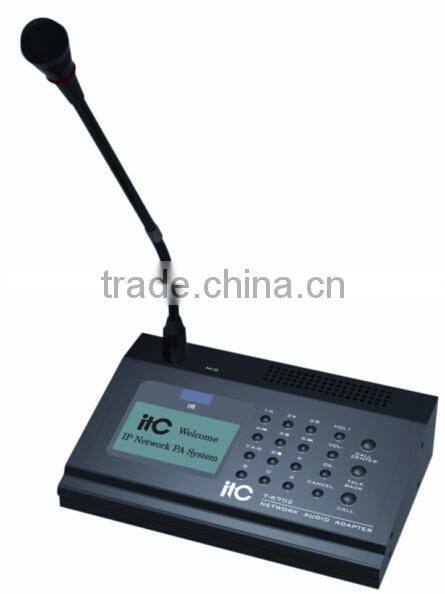

Detailed Images

   IP Network Remote Paging Microphone ip public address system

IP Network Remote Paging Microphone ip public address system









Features
IP Network Remote Paging Microphone ip public address system

* Desktop microphone type, with exquisite appetence, elegant craft and modern design.



* Full duplex two way communication from any point to another intercom system.



* Embed PC technology, built-in DSP and high speed industrial chip to ensure start time less than 1second.



* With 3.4 inch LCD user-friendly human-machine interface.



* With numeric keys, functional keys to call any terminal, easy to operate.



* One button push to answer intercom system.



* Several paging capacity: zone paging, group paging, all zone paging, two way intercom.



* Network conference system solution of discussion and voting function.



* Intercom inquiry with chime warning tone and flashing indicator.



* Support infrared remote control receiver, with a remote controller to complete all operations.



* Built-in 2W full-range monitor speakers with clear voice restoration and no echo noise.



* Support hands-free call and program broadcast receiving.



* With earphone or headphone input for monitor or communication.



* Within one external microphone input and one aux output for sound system.



* 24V DC power supplied, the power adapter is included in the packaging.





Specification

Model

T-6702

Network Input

Standard RJ45

Communication Protocol

TCP/IP, UDP, IGMP

Audio Format

MP3/MP2

Sampling Rate

8K~48KHz

Transmission Speed

10M/100Mbps

Audio Mode

16 digit stereo CD sound quality

Frequency Response

20Hz~16KHz(+1dB, -3dB)

T.H.D.

≤0.3%

S/N Ratio

>70dB

Built-in monitor speaker

4 Ω, 2W

Aux Input

350mV Industry-standard voltage wire terminals

Aux Output

1V Industry-standard voltage wire terminals

Aux Output Impedance

1KΩ

Mic impedance

10mV

Working temp

5 °C~ 40°C

Humidity

10% ~ 90%

Power Consumption

≤10W

Power Supply

DC 24V

Dimensions

200x145x48.5mm

Weight

0.5Kg





Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

IP Network Remote Paging Microphone ip public address system

Technical Support
  • Well-trained sales team for sales and basic technical service.
  • New product promotion and seminar for all employees.
  • Two English spoken technician provide online after sales service.
  • Online system software demo and configuration is available.
  • 30 system consultants and 10 designers to make drawing and BOQ for each tender.
  • Design and BOQ response to customer within 48 hours.
  • PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
  • Technical documents could be downloaded from website
Packaging & Shipping

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.

IP Network Remote Paging Microphone ip public address system
