Home > Consumer Electronics > Audio & Sets > Professional Audio > Indoor 120W 5 Zones Audio Mixer Amplifier for pa System

Indoor 120W 5 Zones Audio Mixer Amplifier for pa System

US$ 130 - 300 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

TI-120

Contact Supplier Request Quote Chat Now

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ITC

Model Number TI-120

Indoor 120W 5 zones audio mixer amplifier for pa system

Features

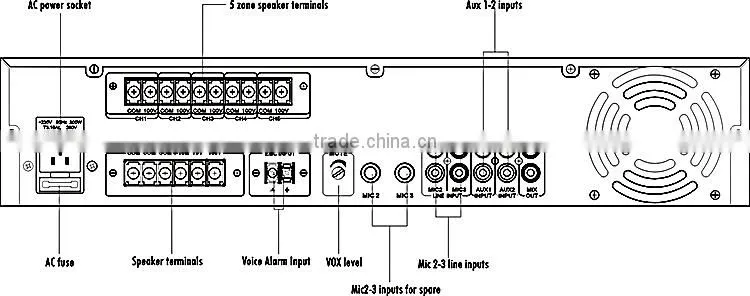

1.5 zones and all zones speaker terminals;

2.Rated Power Output: 60W, 120W, 240W, 350W, 500W, and 650W;

3. Inputs: MIC 1-3, aux 1-2, and EMC1 which has priority over other inputs except MIC 1;

4. Speaker Output: 70V, 100V & 4-16 ohms;

5. Volume Control: MIC1-3, aux1-2,bass,treble, and master;

6. Frequency Response: 50Hz-16KHz;

7. Power Supply: ~110V/60Hz or ~230V/50Hz or DC24V available on less than 500W model.

Specification

Model	TI-60	TI-120	TI-240
Rated Power Output	60W	120W	240W
Speaker Outputs	70V, 100V & 4~16Ω
Input Sensitivity & Impedance	MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input EMC: 775mV/10KΩ, Unbalanced RCA input
Output Sensitivity & Impedance	MIX OUT: 1000mV/470Ω, Unbalanced RCA output
Tone	Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
Frequency Response	50Hz~16KHz(+1dB, -3dB)
S/N Ratio	MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB
THD	Less than 0.5% at 1KHz, 1/3 rated power
Muting Function	MIC 1 overrides other input signals with 0-30dB attenuation
Crosstalk	≤50dB
Cooling	Fan automatically start up when temp reaches 55℃
Protection	High temp, overload & short-circuit
Power Supply	~110V/60Hz or~230V/50Hz or DC 24V
Power Consumption	100W	200W	400W
Weight	7.3Kg	9.5Kg	16.9Kg
Dimensions	484x335x88mm		484x385x88mm
Finish	Panel: aluminum plate, black Case: steel plate, black

Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

Packaging & Shipping

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
