Home > Consumer Electronics > Audio & Sets > Professional Audio > High Quality Top Sale 6w Fireproof Ceiling Speaker With Tweeter

High Quality Top Sale 6w Fireproof Ceiling Speaker With Tweeter

US$ 11 - 40 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

T-105CA

Contact Supplier Request Quote Chat Now

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen and HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ITC

Model Number T-105CA

High quality Top sale 6w fireproof ceiling speaker with tweeter

Features

1) Built-in 100v/70v transformer

2) In-ceiling type loudspeaker

3) 5”+1.5" coaxial speaker unit

4) Power taps 3W & 6W @100V

5) With metal fire dome

6) Aluminum grille, metal baffle and fire dome

7) Paint in white color

8) Fireproof version design of ceramic terminal, thermal fuse, fire dome and fire-resistant cable

Product Description

The T-105CA is a coaxial fireproof ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 5”+1.5" coaxial speaker driver is designed of wide frequency response 110-16kHz, the multiple power taps 3W & 6W are helpful for different applications varies from room size and ambient noise surroundings. The aluminum grille, metal baffle and fire dome are painted in attractive white color and a fire dome metal can is supplied. Its spring clamp makes the easy and secure installation.

It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Fireproof design features of this speaker include ceramic terminal, thermal fuse, fire dome and fire-resistant cable.

Specification

Model	T-105CA
Power Taps @100V	3W, 6W
Power Taps @70V	1.5W, 3W
Impedance	Com/3.3KΩ/1.7KΩ
SPL(1W/1M)	96dB
Max. SPL (Rated W/1M)	104dB
Frequency Response (-10dB)	110-18KHz
Finish	Baffle, Grille: Steel, White Cover: Steel, Color Plating
Speaker Driver	5" x 1 1.5" x 1
Cutout Size	170mm
Dimensions	200 x 110mm
Weight	1Kg
Mounting	Spring-clip

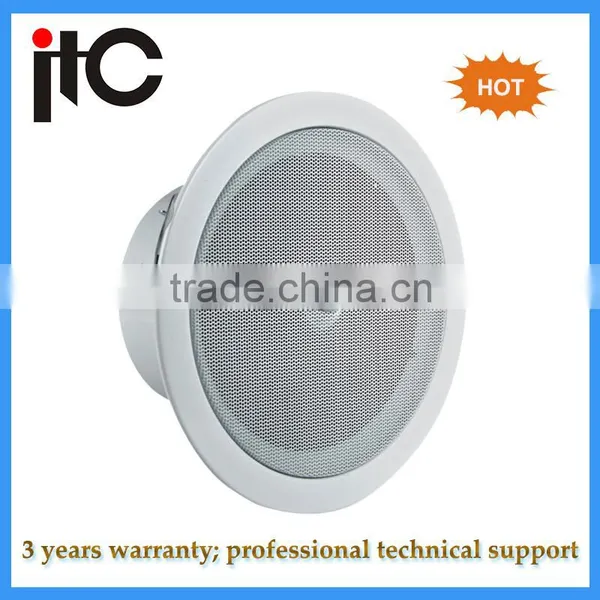

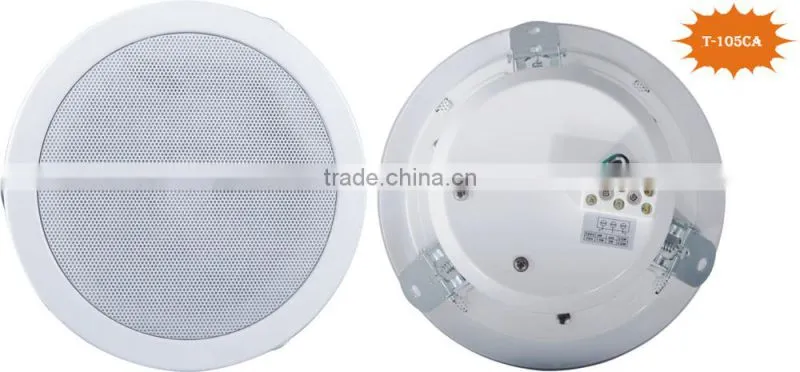

Appearance of T-105CA fireproof ceiling speaker :

Direction Diagram of T-105CA fireproof ceiling speaker :

Frequency Response of T-105CA fireproof ceiling speaker :

Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

Technical Support

Well-trained sales team for sales and basic technical service.
New product promotion and seminar for all employees.
Two English spoken technician provide online after sales service.
Online system software demo and configuration is available.
30 system consultants and 10 designers to make drawing and BOQ for each tender.
Design and BOQ response to customer within 48 hours.
PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
Technical documents could be downloaded from website
