Home > Consumer Electronics > Audio & Sets > Professional Audio > EN54-24 pa System Indoor Fireproof Metal Speaker in Ceiling Type

EN54-24 pa System Indoor Fireproof Metal Speaker in Ceiling Type

US$ 21 - 50 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

T-585

Contact Supplier Request Quote Chat Now

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou shenzhen or Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ITC

Model Number T-585

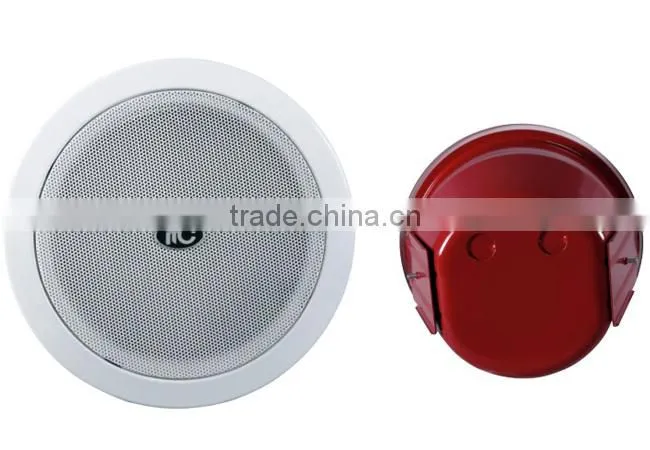

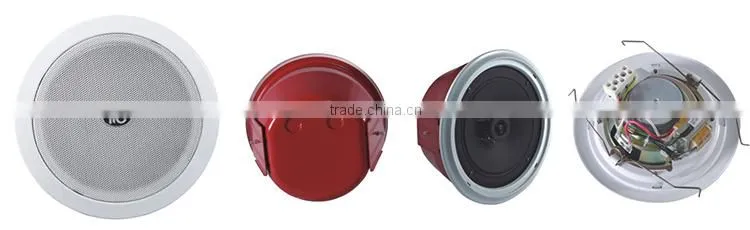

EN54-24 pa system indoor fireproof metal speaker in ceiling type

Features

l Built-in 100v/70v transformer

l In-ceiling type loudspeaker

l Ceramic connector, thermal fuse and fire-resistant cable

l 8” speaker unit

l Power taps 0.93w-1.87w-3.75w-7.5w-15w @100V

l Metal grille, metal baffle and fire dome metal back can

Product Description

The T-585 is a fireproof ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 8” speaker driver is designed of wide frequency response 130-15kHz, the multiple power taps 0.93W, 1.87W, 3.75W, 7.5W & 15W are helpful for different applications varies from room size and ambient noise surroundings.

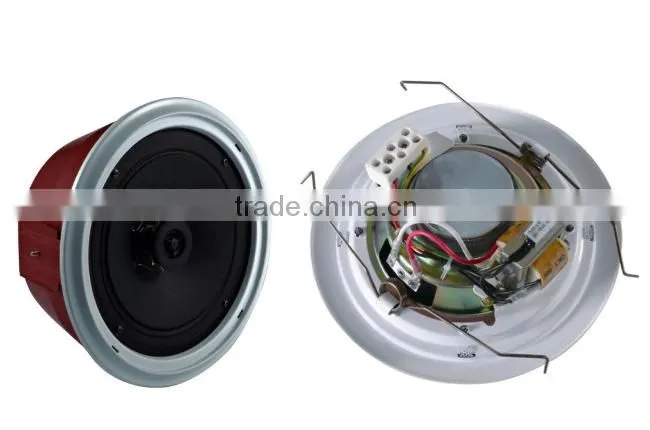

The metal grille, metal baffle and fire dome metal back can plus ceramic connector, thermal fuse and fire-resistant cable, all of the above features make it is fireproof. Its spring clamp type makes the easy and secure installation.

This fireproof ceiling speaker is specially designed for fire alarm and voice evacuation system, which is designed and manufactured according to EN54-24 standard. It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Specification

Model	T-585
Power Taps @100V	0.93W, 1.87W, 3.75W, 7.5W, 15W
Power Taps @70V	0.46W, 0.93W, 1.87W, 3.75W, 7.5W
Impedance	Com/10.7KΩ/5.3KΩ/2.6Ω/1.3KΩ/670Ω
SPL(1W/1M)	93dB
Max. SPL (Rated W/1M)	105dB
Frequency Response (-10dB)	80-20KHz
Finish	Baffle: Steel, Red Grille: Steel, White
Speaker Driver	8" x 1 1.5" x 1
Cutout Size	240mm
Dimensions	270 x 130mm
Weight	1.7Kg

Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

Technical Support

Well-trained sales team for sales and basic technical service.
New product promotion and seminar for all employees.
Two English spoken technician provide online after sales service.
Online system software demo and configuration is available.
30 system consultants and 10 designers to make drawing and BOQ for each tender.
Design and BOQ response to customer within 48 hours.
PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
Technical documents could be downloaded from website

Packaging & Shipping

Full-sealing package of Products:

We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
