Audio Conferencing Equipment Chairman Electronic Voting Discussion Unit

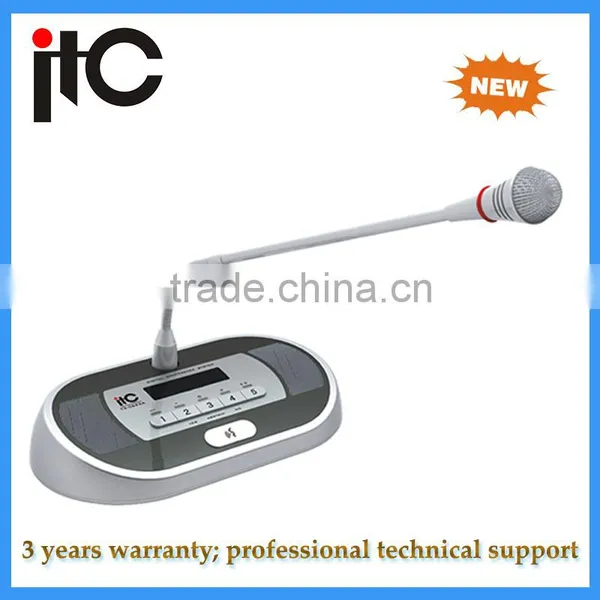

The TS-0622 (Chairman unit) and TS-0622A (Delegate unit) are two tabletop discussion microphone, which is designed to work with the conference system controller TS-0604M.
The microphone unit is built-in a 2W loudspeaker, a monitor earphone output with attenuator. A dual color indicator for direct visual indication of different service: red for speech and green for apply for speech. Attractive ABS patented design of anti-radio frequency technology to ensure superior sound restoration and voice clarity.
Application: Digital conference system, digital meeting system with chairman microphone and delegate microphone use for discussion and communication. This meeting room sound sysem is useful for company communication in hotel, factory or company presentation & meeting applications.
There’re 5 button to provide users with the function of voting, selection and grading;
With LCD to show user’ operation;
Anti-RF hose with patented technique is to cancel noise;
Stylish appearance catching the trend;
Unique design of mic cover is to cancel impact-sound in low frequency without using wind shield.;
Professional large cardioids condenser mic is with high sensitivity to restore clear voice, which is with round ring indicator;
When the indicator is in red, it means that the participant is speaking; when the indicator is in green, it means that the participant applies to speak;
With the function of howling suppression; when the mic is turned on, the internal speaker is turned off automatically;
Each unit is built in speaker and with headset jack;
Units do cascade via 8 core air plug;
Each unit has 2m 8 core air cable covered by foil, which avoids interference by strong electromagnetic wave;
It’s free for users to adjust address for each unit in order to do installation easily;
Unit is powered up by controller at DC 24V;
Chairman unit has right to manage the order of the whole conference;
The connection location of chairman unit is not limited;
Connection way is “Hand in hand” in order to be installed and maintain conveniently;
Model |
TS-0622 & TS-0622A |
Description |
Chairman/Delegate discussion/voting unit |
Power Supply |
DC 24V powered by controller |
Connector |
8 Pins particular connector |
Power Consumption |
3W |
Earphone |
input, 9dBu, 8-32Ω |
Directivity |
cardioid type |
Speaker Power |
2W |
Microphone Type |
condenser microphone |
S/N Ratio |
90dB |
Crosstalk |
80dB |
Distortion |
<0.1% |
Equivalent Noise |
20dB |
Max SPL |
105dB |
Frequency Response |
50-20k Hz |
Sensitivity |
-22dB |
Dimension (W×H×D) |
225x131x48mm |
Tube Length |
415mm |
Weight |
0.9kg |
