TH-0501 Professional IR Infrared Chairman Discussion Wireless Mircophone For Conference System

US$ 40 - 500 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ITC

Model Number:

TH-0501

Guangzhou Baolun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen or HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ITC

Model Number TH-0501

TH-0501

Professional IR Infrared Chairman Discussion Wireless Mircophone For Conference System

Features

Digital conference system chairman unit
With priority over delegate microphone unit
Infrared wireless transmission technology
Control data of tunning frequency transmission technology
Capacity of 128 microphone system
Discussion feature meeting system
No cable wiring for saving cost
Gooseneck microphone length is 40cm, more options are available
Condenser microphone design with battery powered supply
Built-in LCD display signal intensity, power status, charging status, microphone status, microphone ID, system communication channel and operation guidance.
Microphone unit with microphone on/off swtich and round ring indicator
LCD screen of contrast control and backlight time adjustment
Auto microphone off if no voice receiving within 99 seconds.
Automatically power off if communication disconnected
When the signal is too weak, the LCD will warm and auto enter mute mode
Excellent sensitivity microphone capsule to ensure superior sound restoration
Discussion modes: limited and by turn modes
Design according to UL and CE standard

Specification

Model	TH-0501
Communication mode	Wireless infrared communication
Number of channels	4 channels
Frequency range	6MHz-8MHz
Modulation Mode	FM
Infrared radiation power	+10dBM
Microphone Sensitivity	-44dB±2dB
Frequency response	100Hz-10KHz
Signal to noise ratio	>70dB
Distortion	<0.5%
Referential sound-receiving distance	10-30cm
Control channel
Communication mode	Wireless communication
Number of channels	5
Frequency range	915MHz-925MHz
Modulation Mode	FSK
Receiver Sensitivity	-85dBM
Transmitting power	10dBM (adjustable)
Communication Rate	100Kbps
System
Built-in Power	Lithium-polymer battery 12V/4000Mah
Power Rate	8W
Operating Temperature	0°C-40°C
Length of the MIC bar	400mm
Dimension	220×155×69mm
Weight	0.815Kg (With Battery)

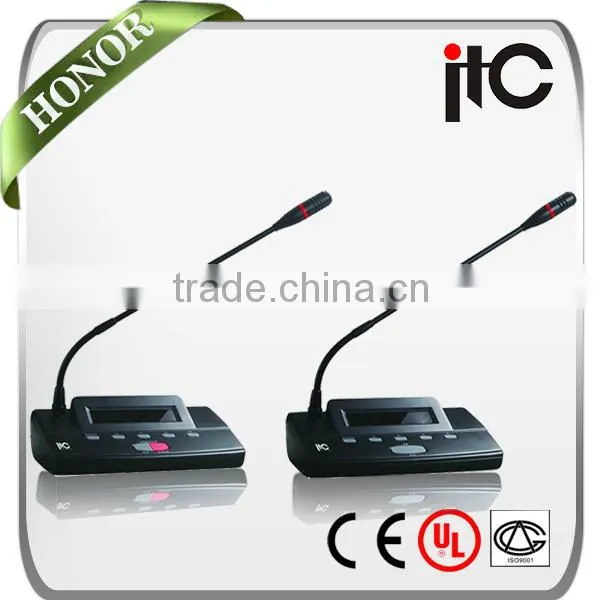

Infrared Wireless Chairman Unit Infrared Wireless Delegate Unit

Guarantee & Warranty

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.

Technical Support

Well-trained sales team for sales and basic technical service.
New product promotion and seminar for all employees.
Two English spoken technician provide online after sales service.
Online system software demo and configuration is available.
30 system consultants and 10 designers to make drawing and BOQ for each tender.
Design and BOQ response to customer within 48 hours.
PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
Technical documents could be downloaded from website
