Model:TS-0604M

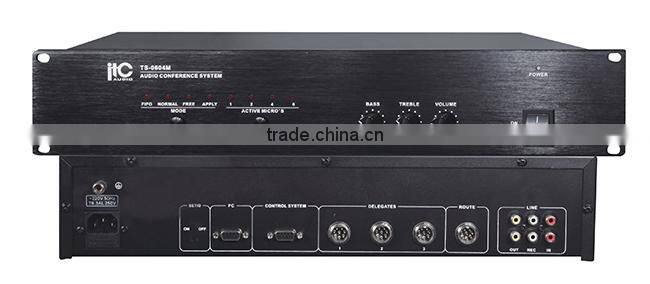

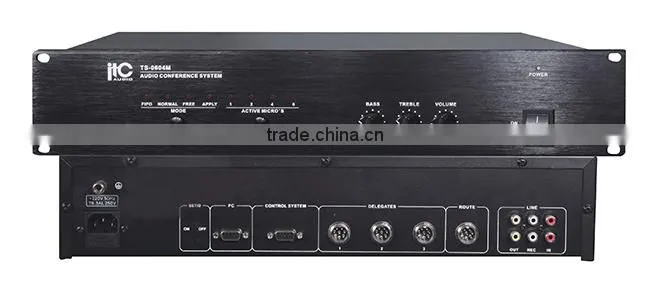

Digital professional audio conference system for conference room
To adopt unified 8-core air plug.
With functional buttons to adjust total volume, treble and bass.
4 kinds of conference modes: Fist-in-first-out/Normal/ Free/ Application.
With the function of speaking units limit: Optional limit quantity 1/2/4/6, and the chairman unit is unlimited.

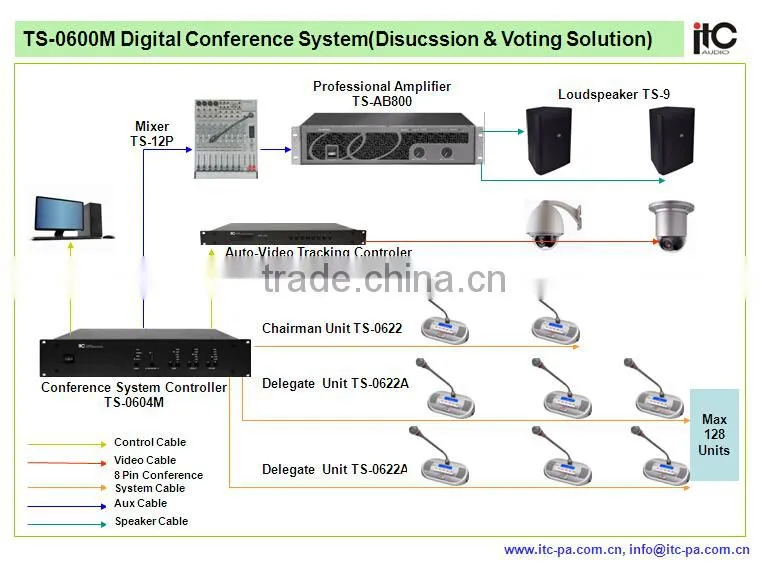

Powerful Expansibility: 1 host could control up to 128 units and when working with expansibility host, the quantity is up to 4096.
Connection method between units is “Hand in hand”, which is easy to be installed and maintained.
With 2 channel soundtrack output, which could be used to do sound reinforce and recording.
With the function of voting and data management; It could work with PC installed matching software, other conference system of ITC™, multimedia central control system, etc to achieve modern high-tech conference.
To work with telephone coupler to achieve phone conference.
Passing the high voltage test at 3500V
The case is in the material of metal; Circuit and the outer case are connected to ground line rationally to ensure antistatic ability of 8000V.
The host could be installed in chassis of 19”, which is easy to be placed and maintained.
Model | TS-0604M |
Description | Conference system controller |
Power Supply | AC 120 or 220V; 50-60Hz |
Power Consumption | 10W |
Max Power Consumption | 350W |
Output Power | 110W/24V per channel |
Aux Output | 2V, 100Ω, unbalanced RCA type |
Frequency Response | 60-16k Hz |
S.N Ratio | 80dB |
Total Harmonic Distortion | 0.5% |
Overloading Distortion | 1% |
Crosstalk Attenuation | 50dB |
Connector | five 8 pin connector, two RS232 connectors and 8 pairs of RCA |
Dimension | 430(W) x 90(H) x 275(D)mm |
Weight | 6.5kg |
Finish | Grey |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
