TH-0501

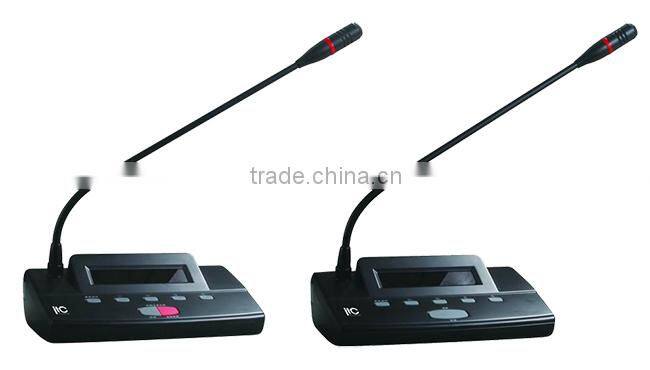

IR Communication conference system Infrared Wireless Microphone
Feature of Conference Infrared Wireless Microphone :
- Digital conference system chairman unit
- With priority over delegate microphone unit
- Infrared wireless transmission technology
- Control data of tunning frequency transmission technology
- Capacity of 128 microphone system
- Discussion feature meeting system
- No cable wiring for saving cost
- Gooseneck microphone length is 40cm, more options are available
- Condenser microphone design with battery powered supply
- Built-in LCD display signal intensity, power status, charging status, microphone status, microphone ID, system communication channel and operation guidance.
- Microphone unit with microphone on/off swtich and round ring indicator
- LCD screen of contrast control and backlight time adjustment
- Auto microphone off if no voice receiving within 99 seconds.
- Automatically power off if communication disconnected
- When the signal is too weak, the LCD will warm and auto enter mute mode
- Excellent sensitivity microphone capsule to ensure superior sound restoration
- Discussion modes: limited and by turn modes
- Design according to UL and CE standard
Specification of Conference Infrared Wireless Microphone :
Model |
TH-0501 |
Audio channels |
|
Communication mode |
Wireless infrared communication |
Number of channels |
4 channels |
Frequency range |
6MHz-8MHz |
Modulation Mode |
FM |
Infrared radiation power |
+10dBM |
Microphone Sensitivity |
-44dB±2dB |
Frequency response |
100Hz-10KHz |
Signal to noise ratio |
>70dB |
Distortion |
<0.5% |
Referential sound-receiving distance |
10-30cm |
Control channel |
|
Communication mode |
Wireless communication |
Number of channels |
5 |
Frequency range |
915MHz-925MHz |
Modulation Mode |
FSK |
Receiver Sensitivity |
-85dBM |
Transmitting power |
10dBM (adjustable) |
Communication Rate |
100Kbps |
System |
|
Built-in Power |
Lithium-polymer battery 12V/4000Mah |
Power Rate |
8W |
Operating Temperature |
0°C-40°C |
Length of the MIC bar |
400mm |
Dimension |
220×155×69mm |
Weight |
0.815Kg (With Battery) |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
