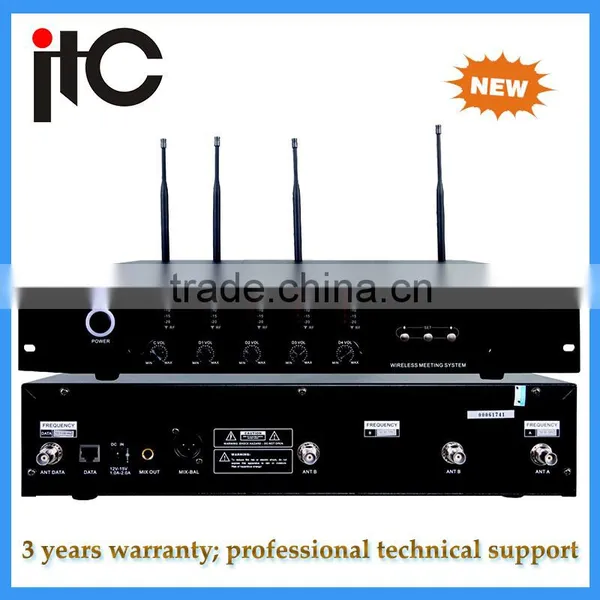

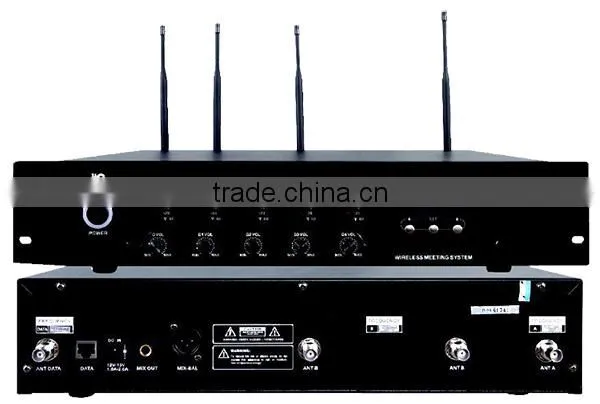

TH-0590M Digital UHF Wireless Conference System For Meeting Room
* FM signal transmission, high fidelity high signal-to-noise ratio, no voice delay.
* Unique data communication algorithm, maximum speech unit capacity is 255.
* Supports 3 conference management modes: rotation, restrict and chairman.
* Built-in RS - 485 connect to camera tracking host to achieve speech unit visual tracking.
* Can be installed into 19-inch standard rack.
Model |
TH-0590M |
Voice-grade channel |
|
Communication mode |
UHF wireless way (one-way) |
Number of Channel |
5 channel l(one channel for chairman, four channel for delegates) |
Frequency range |
500MHz-950MHz |
Modulation system |
FM |
Receive sensitivity |
-100dBM |
Output level |
Balanced output: 0-600mV, unbalanced output: 0-300mV |
Frequency response |
50Hz-15KHz |
SNR |
>105dB |
THD |
<0.5% |
Wireless signal transmission distance |
60m (under empty area) |
Control channel |
|
Communication mode |
UHF wireless way (two way) |
Number of channel |
16 |
Frequency range |
422.4MHz-438.4MHz |
Modulation mode |
FSK |
Receive sensitivity |
-100dBM |
Transmitted power |
+6dBm (adjustable) |
Frequency deviation |
<0.002 |
Speed |
100KBPS |
Signal cover |
60m (under empty area) |
Other specification |
|
Power supply |
DC12V-15V, >=1A |
Rate power |
< 7W |
Work temperature |
-10℃-40℃ |
Dimension |
485mm x 100mm x 355mm |
Weight |
7.2 kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
