ITC TS-9204H

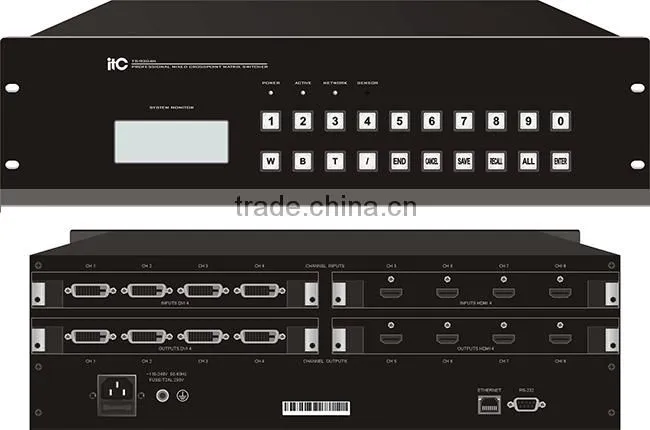

Intelligent HD Mixed Interpolation Matrix System
Matrix converter is a flexible configuration of the matrix signal switcher.
The hardware design of high performance, the perfect support for all kinds of high definition digital / analog signal switching and processing, and supports a bidirectional RS-232, bidirectional IR signal distribution switching function.
For the various sectors of the various video and control signal distribution switch processing to
provide a one-stop solution, which can be widely used in radio and television engineering,
multimedia conference hall, large screen display works, television teaching, command and control centers.
* Input and output: maximum support 8 input, 8 output signal.
* Plug-in structure: the input signal VIDEO, VGA, YPbPr, DVI, HDMI, 3G-SDI, Fiber (optical fiber),
twisted pair (HDBaseT), the output signal HDMI, VGA format, DVI, twisted pair (HDBaseT),
Fiber (optical fiber). The card type mechanism, extremely easy to extend or replace.
* Support DVI, HDMI, twisted pair (HDBaseT), Fiber (optical fiber) any card in the output.
* Extensible seamless switching function.
* Support embedded bidirectional infrared and RS-232 control signal switching function
(need to cooperate with the twisted pair transmission lines or FB card and the corresponding Device).
* HDCP management, can set the encryption and decryption of HDCP content, to ensure the normal display signal source.
* EDID management, can store 8 groups of EDID data. Allowed to read the output device
EDID or storage of EDID and applied to arbitrary input card, EDID code can be sent to the
EDID store through the serial port, can read out the current output of the EDID code
through the serial port.
* Has power-off memory function and the memory function: with a cut-off protection
function; and can be saved and call the 10 switch State.
* Support is fast channel and the embedded control signal separation switch mode.
* Support full HD: HDPC:1920X1200P@60_24bit, HDTV:1920X1080P@60_36bit.
* luxury crystal key with luminous indication function, the switching information can be
directly through the LCD screen, convenient operation.
* 3D, HDMI 1.4, HDCP1.4, and DVI 1 protocol. Support high color depth, and up to 3.25Gbps rate.
* With 2 RS-232 communication interface.
* Has 1 road network can be realized through the Ethernet port, remote control, support 8 users at the same time.
* Built-in international universal power supply.
