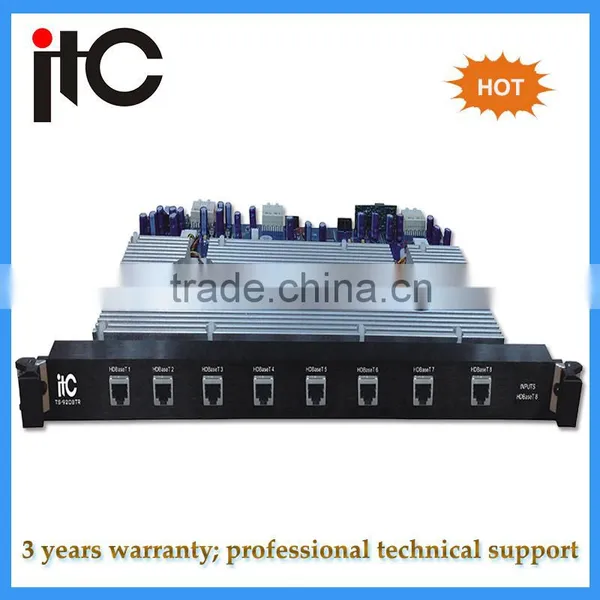

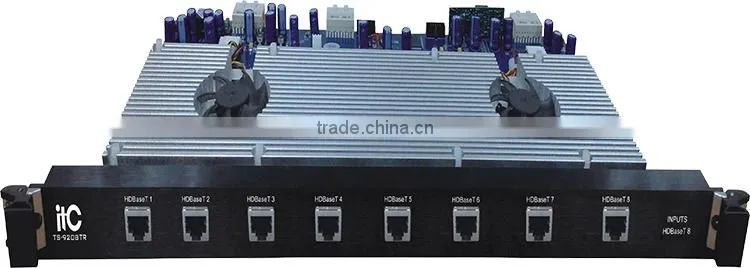

Matrix system 8 channel Input Card hdmi hdbaset matrix
Specifically for the intelligent HD mixed interpolation Matrix Switchers and design, support 8-Channel high speed RJ45 interface input, support the transmission of Digital HD 1080P signal, the design type high integrated plate, can be arbitrarily selected card number, which brings great convenience for application and maintenance.
* 8-Channel high speed RJ45 interface input.
* CAT5e/6 wire input the longest distance of 100M.
* Pixel bandwidth: 225MHz, full digital.
* Interface bandwidth: 3.25Gbps, full digital.
* Support EDID editing function
* Compatible with HDBaseT protocol.
* Maximum support resolution: HDPC:1920X1200P@60_24bit,
HDTV:1920x1080p@60_36bit.
* Plug and play, very convenient.
Model |
TS-9208TR |
Interface |
8-Channel high speed RJ45 interface input |
Pixel Bandwidth |
225MHz, full digital |
Interface Bandwidth |
3.25Gbps, full digital |
Max Supporting Resolution Ratio |
Normal-PC: 1600x1200@60_24bit |
HDPC: 1920x1200P@ 60_24bit | |
HDTV: 1920x1080P@60_36bit | |
Signal Type |
HDBaseT protocol high speed differential signal |
Max Consumption |
40W |
Weight |
About 1Kg |
Max Output Distance |
Max 100 meters, at 1920x1080p@60Hz |
(Recommend to use CAT5e/6/7 dedicated cables) |
8-Channel HD BaseT Input Card
8-Channel HD BaseT Output Card
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
Full-sealing package of Products:
We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
